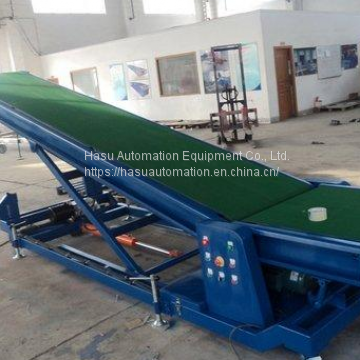

Automatic Electric Portable Telescopic Belt Conveyor for Goods Loading and Unloading

this is one of the most popular lorry loaders.It is extremely flexible and easily move into position on braked swivel castors.Reply on high quality,competitive price,short delivery time and long life span,we have exported this machine to many countries ,such as UK,America,France,Russia,Romania,Chile,Jordan,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc. zouliis@qq.com

Features

     1. Adopt 600mm width 5mm thickness high grip green PVC belt

     2. Conveyor height adjustable from 700mm to 2500mm

     3. Belt speed variable from 10 to 20 m/min

     4. Frame construction manufactured from 3mm thickness steel plate,painted surface treatment.

     5. Easy to movable around on 150mm heavy duty swivel lockable casters

     6. Can also be fixed to certain place by tighten the two threaded knobs between the two casters

     7. Automatically stop by limit switch when lifting up and down

     8. Independent electric cabinet includes OFF/ON,Emergency Stop, Forward/Reverse,Up/Down,Stop,Speed Knobs.

     9. CPG motors,DELTA inverter,SCHNEIDER electrical elements

     10. Power supply options 220V single phase 50Hz or 380V three phase 50Hz,110V also available.

     11. The small flat belt section can be put down to be a slope.

     12. Easily to connect to other flexible conveyors,belt conveyors and roller conveyors.
