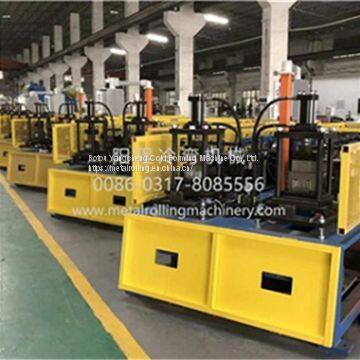

Ceiling CD60x27 and UD28x27 Profiles Double Line Roll Forming Machine

Ceiling CD60x27 and UD28x27 Profiles Double Line Roll Forming Machine

Metal Profile Forming Machine

SURFACE TREATMENT

1) Processing material: steel strip

2) Material thickness: 0.3-0.7mm

3) Formed sizes on one machine: C60*27 and U28*27

4) Main motor power: 4kw

5) Pump power: 4kw

6) Productivity: 6-18m/min

7) Roller stations: 10 steps

8) Roller material: Cr12 steel with vacuum heat treatment HRC57°-60°

9) Active shaft material: 45#steel with high frequency surface treatment and grinding process

10) Shaft diameter: 40mm

11) Cutting system: mould cutting, automatic cut to any length you need

12) Cutting blade material: Gcr12

13) Machine construction: as per machine photos

14) Transmission type: Gears

15) Control system: Taiwan Delta PLC computer control system with inveter

16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

TECHNOLOGY of Roll Forming Machine

Manual decoiler→guiding platform→main roll forming machine→hydraulic cutting system→2m product receiving table, hydraulic station with 4kw electric motor, PLC control system, 4kw electric motor

SALES TERMS

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USDdayperson.
