Home > Products > Lowbed > Luyi Trailer Manufacturer Lowbed Lowboy Platform Semi-trailer for Heavy Equipment Transport

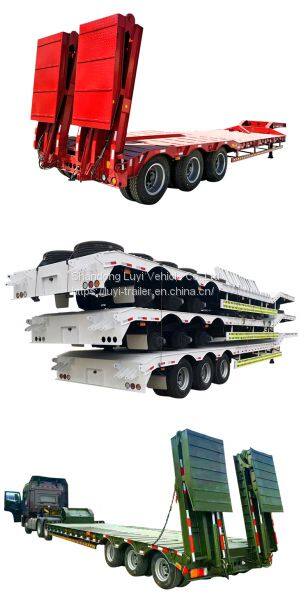

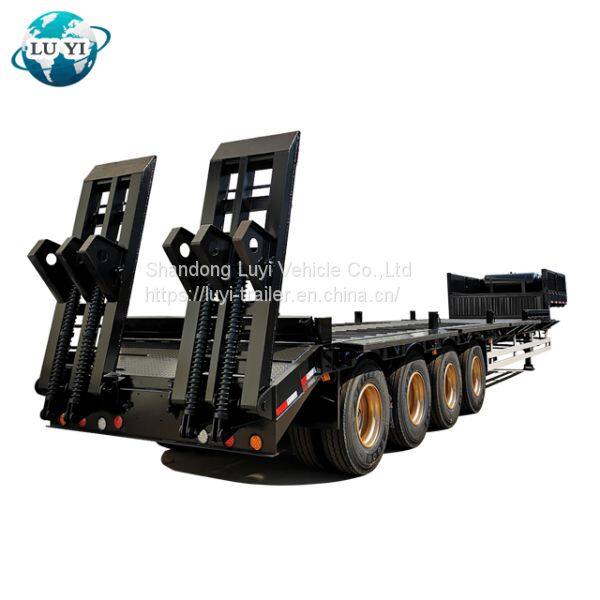

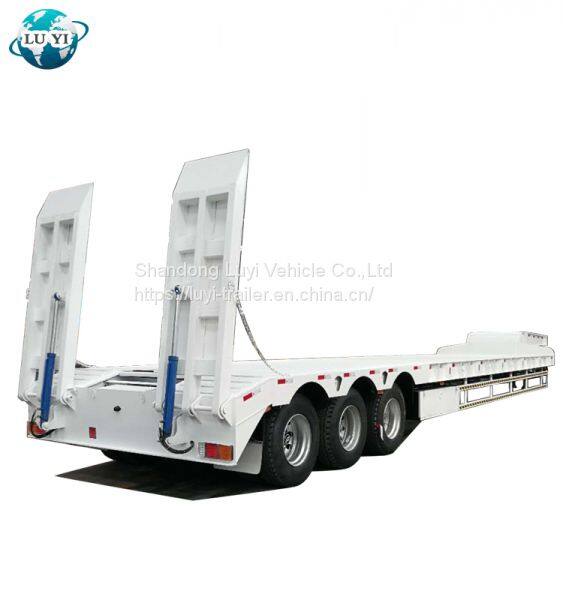

Luyi Trailer Manufacturer Lowbed Lowboy Platform Semi-trailer for Heavy Equipment Transport
- Tianjin or Lianyungang
- T/T L/C Cash
- 15 days
You May Like
Product Details
| Brand Name | lUYI | Place of Origin | China | |
| Model Number | LY9020 | Size | 14400*3000*1550 mm | |
| OEM No. | 82364 | Max Payload | 70 ton | |
| Parts | Trailer Axles |
Product Description
Product parameters
| Heavy Duty Machinery Transport Lowbed Truck Semi Trailer | ||||
| Model | LYLD02 | |||
| Dimension(Optional) | Axle No. | Rated Load (ton) | Tire No. | Tire Size |
| Custom-made External size Standard LengthxWidthxHeight is 14400*3280*(700mm-2800mm) | 1 | 20 | 4 | 8.25R20/8.25R16/11.00R22.5 12.00R22.5/10.00R20/11.00R20 /12.00R20 (Other Size / Single Super Tire Contact with Supplier) |
| 2 | 40 | 8 | ||
| 3 | 60 | 12 | ||
| 4 | 80 | 16 | ||
| 5 | 100 | 20 | ||
| Manufacturer | Shandong Luyi Vehicle Co., Ltd | |||
| Wheel Base (mm) | 7180/6680/6260+1310+1310mm,Or other | |||
| leaf-spring Pcs | 8/8/8, 10/10/10, 12/12/12 pieces per axle | |||
| Axle | 13/16/18 T | |||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | |||
| Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 | |||
| Ladder | Manual or hydraulic automatic | |||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||
| Brake System | Dual line braking system with automatic braking system | |||
| Brake Air Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tanks | |||
| King pin | JOST brand ;2' or 3.5' Interchangeable | |||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | |||
| Platform | 5/6/7 mm Diamond Plate | |||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | |||
| Brake Air Chamber | Four double and two single chamber | |||
| Light | Tail lamp with turn signal,brake light,reflector,side lamp etc | |||
| Electrical System | 24V, 7core socket, One set 7-core standard Cable | |||
| Main beam Size | Upper plate | 14mm-25mm | ||
| Down plate | 6mm-25mm | |||
| Mid Web | 8mm-12mm | |||
| Height | 500-520mm | |||
| Side beam Size | 16mm-25mm channel steel | |||
| Tool Box | 1 box of standard tools | |||
| Spare tire carrier | 2 sets (Patent type) | |||
| Color and Logo | Custom-made | |||
| Pin Height | According to the height of the tractor saddle. | |||
| Painting | Complete Chassis sand blasting to clean rust;3 coats painting:1 coat of anticorrosive prime, 2 coats of final paint; | |||
| Packing | Polish with wax before shipping | |||
| Optional spare parts | Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince. | |||
1. Lowbed semi trailer Suitable for road construction equipment, large tanks, heavy machinery;
2. Semi trailer use high-strength international steel, light weight, guarantees deformation resistance (no permanent deformation), and shock resistance;
3. Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;
4. Semi trailer has a simple structure, convenient disassembly and maintenance, and reduced maintenance costs;
5. Reduced center of gravity, ensuring transport stability and safety, through overhead obstacles,high efficiency;
LUYI trailers are one of the most popular trailer types and include various trailer types. These tractor trailer types include:
Box trailer
Curtain sider trailer
Semi dump trailer
Flatbed trailer
Refrigerated trailer
ABOUT US
Shandong Luyi Vehicle Co.,Ltd ,Is a professional trailer manufacturer with an export qualification of China
the ministry of commerce. Luyi Vehicle main products are Flatbed,low bed,Tipper,Skeleton,Van,Sidewall,
Modular trailer, Fuel /bulk cement tanker,Special customized semi trailers and Construction machinery,Trailer spare parts, etc.
With more than 20 years manufacturing experience, Luyi has become a modernized enterprise with the integration of R&D, Design, Manufacture and Sales,with over 1080 employees, and covers an area of 390,000 square meters, total assets of $80M.We have first-class production equipment :CNC cutting-edge, Automatic welding ;Large bending , Jigsaw machine, Automatic tank welding , Shot peening , Swiss four-wheel positioning and high-precision testing equipment etc. with strict control for each process,Luyi have passed CE, TUV, ADR standard recognition ,LRQA certification,and other countries' approval.
“LUYI” brand trailer series have widely exported to Africa,the Middle East, Asia,East Europe and South America market, etc, and have set up 78 service outlets .LUYI being widely praised and trusted by home and abroad partners, such as Sinopec, Petrochina, Shell and Castrol,CNHTC,CIMC,etc.
