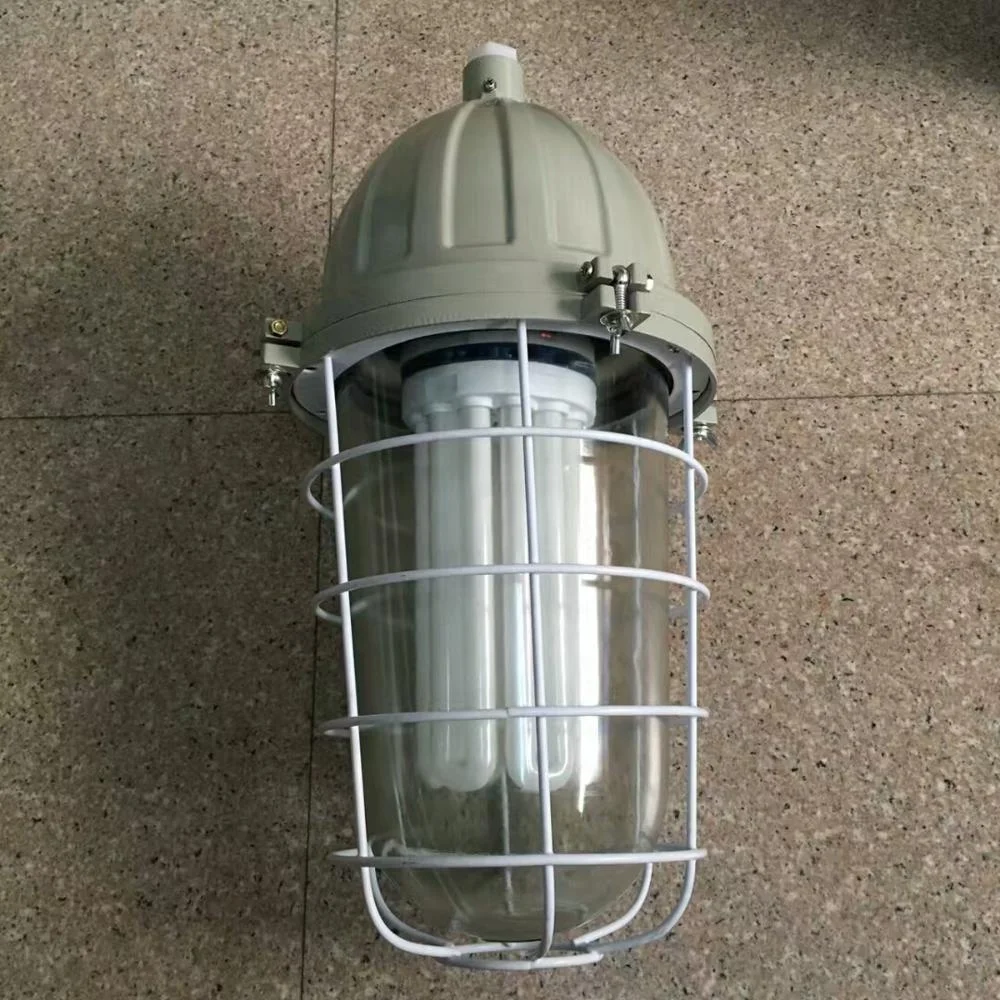

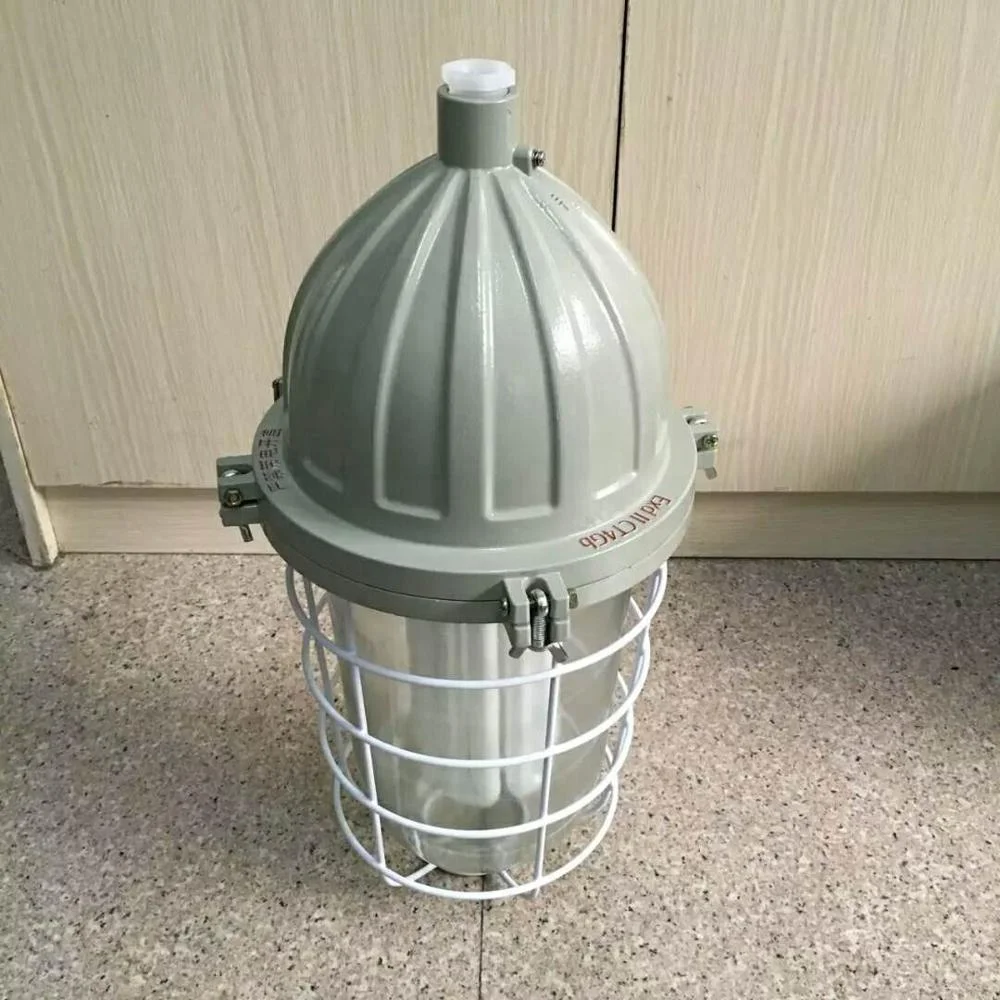

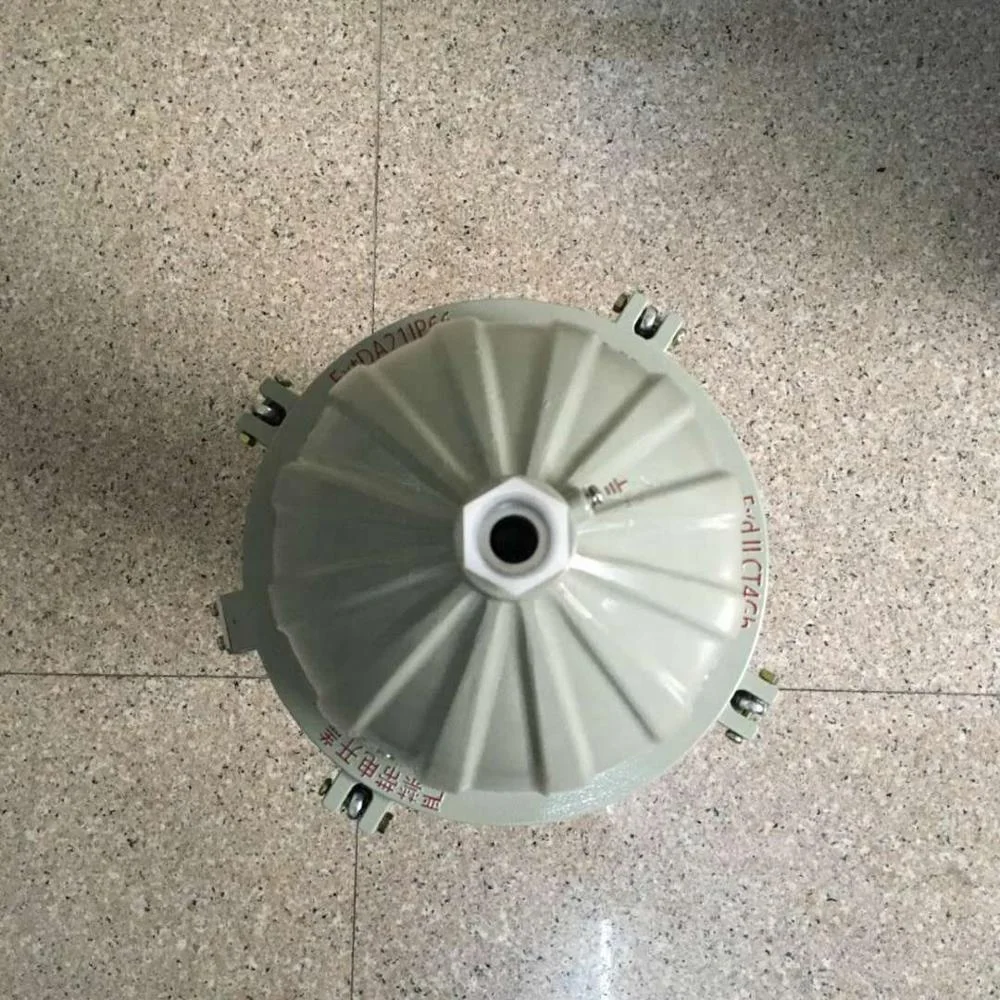

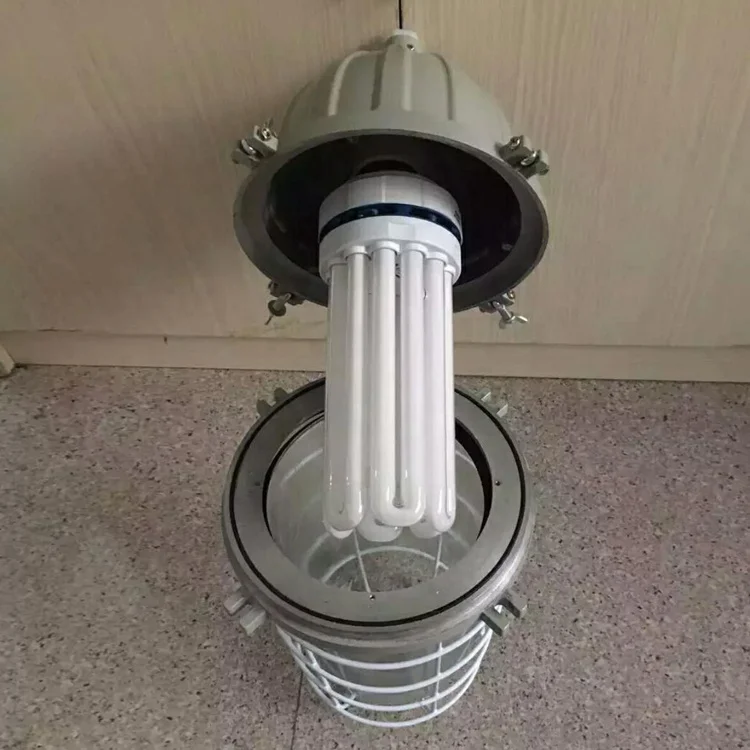

Extended Explosion-proof Lamp Explosion-proof energy-saving lamp 45W 150W IIC BAD82-L250hb1HZ

Scope of application
_Suitable for area 1 and 2 of explosive gas environment.
_Suitable for Class II A, Class II B, Class II C explosive gas environment;
_Suitable for environment with temperature group T1~T6/T4/T3;
There are four different sizes of body to choose from.
_It can be equipped with electrodeless lamp, high-pressure mercury lamp, high-pressure sodium lamp, metal halide lamp and energy-saving lamp.
_Suitable for explosive hazardous environment such as petroleum extraction, storage, chemical industry, medicine, military industry and military facilities.
2. Main technical parameters:
1. Light source: compact energy-saving lamp
2. Lamp power: 42W, 68W
3. Lamp Voltage: AC220V/50Hz
4. Explosion-proof sign: Exd II CT6 DIPA20TA, T4
5. Protection Level: IP65
6. Antiseptic Grade: WF1
7. Type of lamp head: E27
8. Inlet thread: G3/4“
9. External diameter of cable: 10~15
10. Installation method: suction top (x) wall type 30 (b1) wall type 90 (b2) suspender type (g) guardrail type (h) flange type (f)
3. Product characteristics:
1. Lamps adopt threaded, sealing and adhesive explosion-proof structure, which has excellent explosion-proof performance.
2. The special double-layer sealing clamping structure is adopted to ensure the reliability and protection level of the introduction device.
3. The glass cover, shell ring and pressing ring are bonded with epoxy resin and special technology.
4. Special designed sealing structure is adopted in many places of lamps and lanterns, and the protection level of the shell is high.
5. Good heat dissipation design, the heat generated by the light source and electrical appliances when working can be fully transmitted through the shell to dissipate heat;
6. Optimize the design of the electrodeless lamp, and give full play to the characteristics of high light efficiency, energy saving and long life of the electrodeless lamp.
7. Optimizing light distribution design, using high purity aluminium anodic oxidation reflector, high reflectivity, improve the light efficiency of lamps and lanterns;
8. Glass cover adopts anti-glare design with multiple reflective prisms to effectively reduce glare and light pollution.
9. The shell is made of copper-free aluminium alloy by high-pressure casting. After shot blasting, the shell is sprayed by high-voltage electrostatic spraying, and its appearance is exquisite and beautiful.
10. Steel pipe wiring.
IV. Instructions for Order:
1. The lamp is not equipped with light source when it leaves the factory. If necessary, please explain before ordering.
2. The lamp is not equipped with an umbrella when it leaves the factory. Please indicate if necessary.
3. Choose one by one according to the model description. For example, 42W energy-saving lamp with wall type 30 degree installation and junction box is needed. The model is BAD81-42b1H.
