furnace black ultrafine mill equipments
USD $42000 - $180000
/ Set
1 Set(Min.Order)
- 1 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
Product Details
| Brand Name | clirik | Place of Origin | China | |
| Model Number | HGM | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Carbon black (also known as acetylene black, channel black, and furnace black, lamp black or thermal black) is a material produced by the incomplete combustion of heavy petroleum products such as FCC tar, coal tar, ethylene cracking tar, and a small amount from vegetable oil.
The most common use (70%) of carbon black is as a pigment and reinforcing phase in automobile tires. Carbon black also helps conduct heat away from the tread and belt area of the tire, reducing thermal damage and increasing tire life. Carbon black particles are also employed in some radar absorbent materials and in photocopier and laser printer toner.
Carbon black ultrafine mill equipments is a new type machine to grind Carbon black stone into super thin Powder.
The final Powder size can be from 5micron to 47micron as per 97% passing rate.
Carbon black ultrafine mill equipments is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs’ hardness scale under seven, such as calcite, chalk, limestone, dolomite, carbon black, bentonite, kaolin, talc, mica, magnesite, illite, pyrophyllite , roseite, sea-foam, attapulgite , rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice etc. totally more than 100 kinds of materials.
Finished powder products are in the 325meshs -3000meshs, and yield can be up to 0.5-12 tons per hour. There are five types of Shanghai CLIRIK HGM series carbon black ultrafine mill equipments; they are HGM80, HGM90, HGM100, HGM100A and HGM125.
Detailed Product Description about Carbon black ultrafine mill equipments:
Carbon black ultrafine mill equipments is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds of materials. Product fineness can be controlled between 300~3000 mesh (47~5 micron)
Comparable with ball mill, Carbon black ultrafine mill equipments has features of low cost, high capacity, easy operation; Comparable with Raymond mill for coarse powder up to 325 meshes, it can produce fine powders between 47 and 5 microns (300 to 3000 meshes)
Production Line Configuration of Carbon black ultrafine mill equipments:

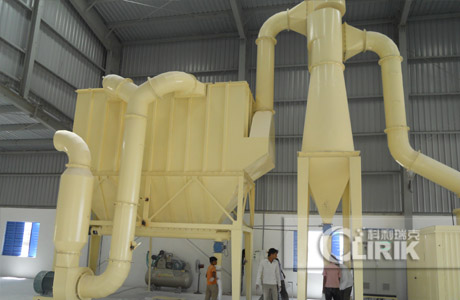

The whole set HGM Carbon black ultrafine mill equipments consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems
Working Principle of Carbon black ultrafine mill equipments:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
Technical Data of Carbon black ultrafine mill equipments:
Note: This specification is just referencing, any changes are subject to the products.
The most common use (70%) of carbon black is as a pigment and reinforcing phase in automobile tires. Carbon black also helps conduct heat away from the tread and belt area of the tire, reducing thermal damage and increasing tire life. Carbon black particles are also employed in some radar absorbent materials and in photocopier and laser printer toner.
Carbon black ultrafine mill equipments is a new type machine to grind Carbon black stone into super thin Powder.
The final Powder size can be from 5micron to 47micron as per 97% passing rate.
Carbon black ultrafine mill equipments is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs’ hardness scale under seven, such as calcite, chalk, limestone, dolomite, carbon black, bentonite, kaolin, talc, mica, magnesite, illite, pyrophyllite , roseite, sea-foam, attapulgite , rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice etc. totally more than 100 kinds of materials.
Finished powder products are in the 325meshs -3000meshs, and yield can be up to 0.5-12 tons per hour. There are five types of Shanghai CLIRIK HGM series carbon black ultrafine mill equipments; they are HGM80, HGM90, HGM100, HGM100A and HGM125.
Detailed Product Description about Carbon black ultrafine mill equipments:
Carbon black ultrafine mill equipments is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds of materials. Product fineness can be controlled between 300~3000 mesh (47~5 micron)
Comparable with ball mill, Carbon black ultrafine mill equipments has features of low cost, high capacity, easy operation; Comparable with Raymond mill for coarse powder up to 325 meshes, it can produce fine powders between 47 and 5 microns (300 to 3000 meshes)
Production Line Configuration of Carbon black ultrafine mill equipments:
The whole set HGM Carbon black ultrafine mill equipments consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems
Working Principle of Carbon black ultrafine mill equipments:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse powder return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
Technical Data of Carbon black ultrafine mill equipments:
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 900 | 1000 | 1000 | 1250 |
| Ring Number/pcs | 3 | 3-4 | 3-4 | 4 | 4 |
| Roller Number/pcs | 21 | 24-32 | 27-36 | 27-36 | 40-44 |
| Main Shaft Speed/r. p. min | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size/mm | ≦15 | ||||
| Finished Size/um | 5-47(325-3000) | ||||
| Capacity t/h | 0.4-4.5 | 0.4-5.5 | 0.4-6.5 | 0.4-7.5 | 0.7-10 |
| Outlet Size L*W*H/m | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
Should you have any questions, please do not hesitate to contact us:
Phone:+8615993021269
whatsapp: +8615993021269
wechat:15993021269
qq:2937596967
