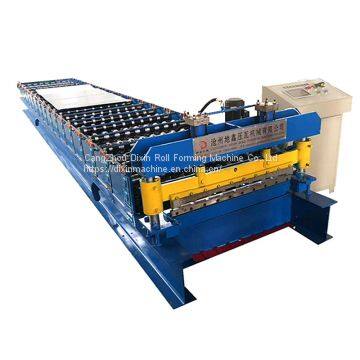

2019 good quality trpaezoidal stainless steel roll forming machine
- 100 Set / Sets per Month
- Tianjin
- T/T L/C
- 25 days
You May Like
-
Trapezoid Roof Sheet Roll Forming Machine for South Africa
-
Hot sale automatic three dimensional gusset plate 3D wall panel forming machine
-
3D panels making panel colorful exterior roll forming machine
-
Steel sheet decorative wall colorful exterior 3D Gusset Plate roll forming machine
-
Automatic perforated steel sheet high speed complete roller shutter door roll forming machine
-
Custom garage roller shutter doors panel color sheet cold rolled forming making machines
Product Details
Brand Name | Dixin | Place of Origin | China | |
Model Number | Customized | Use | Roof | |
Certification | CE,ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
Warranty | 1 year | Weight | 3.2T | |
Production Capacity | 8-12m/min | Condition | New | |
Voltage | 380v | Power(W) | 5.5kw | |
Type | Tile Forming Machine | Tile Type | Colored Glaze Steel |
Product Description
2019 good quality trpaezoidal stainless steel roll forming machine
The roof tiles press steel is made of dealing with galvanized steel sheets or colored steel plates or aluminum plates of different colors. The products are used to construct external roofing and wall panels of houses and interior panels or ceilings to enhance the appearance of the roof or walls. And durability.
Technical parameter
Item NO | Description | Offered specification |
1.0 | Roll forming machine | Roof sheet |
1.1 | Rolling speed | 15-20m/min |
1.2 | Rolling thickness | 0.25-0.8mm |
1.3 | Raw material | Galvanized steel sheet & pre-painted steel sheet up to 550mpa |
1.4 | Control system | PLC & Transducer(Mitsubishi ) |
1.6 | dimension | 11000×1500×1500(mm) |
1.7 | The material width | 1220mm |
1.8 | Effective width | 1000mm |
1.9 | Roller stations | 25 stations |
1.10 | Roller material | 45#forge steel, coated with chrome |
1.11 | Shaft diameter | φ75mm ,material is 45# forge steel |
1.12 | Transmission | By chain |
1.13 | Material of chain | 45# forged steel with frequency quenching, 16A |
1.14 | Maim motor power | 7.5kw |
1.15 | Hydraulic station power | 3.0kw |
1.16 | Hydraulic pressure | 12Mpa |
1.17 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.18 | Tolerance | 10m+-2mm |
1.19 | Electric source | 415 volts, 3 phase and 50 Hz or at buyer’s request |
1.20 | Frame | 350mmX175mm H type steel |
1.21 | Color of the machine | According customer’s requirements dark green |
1.22 | Container need | 1 x40 feet( machine will be fixed by string in the container) |
Types of ibr sheet roll forming machine |
Type 840 |
Type 850 |
Type 750 |
Type 900 |
Sample | ||||
Roller stations | 11 | 9 | 18 | 10 |
Thickness | 0.3-0.8mm | 0.3-0.8mm | 0.3-0.8mm | 0.3-0.8mm |
Cutting type | Pillar guide | Pillar guide | Pillar guide | Pillar guide |
Shaft type | solid | solid | solid | solid |
Roller processing | Quenching,chroming | Quenching,chroming | Quenching,chroming | Quenching,chroming |
PLC | Delta | Delta | Delta | Delta |
Computer screen | Touch screen | Touch screen | Touch screen | Touch screen |
Main motor | 4KW | 4KW | 5.5KW | 4KW |
Hydraulic motor | 3KW | 3KW | 4KW | 3KW |
Board thickness | 18mm | 18mm | 18mm | 18mm |
Machine frame | 300 H steel | 300 H steel | 350 H steel | 300 H steel |
Chain size | 1 inch | 1 inch | 1 inch | 1 inch |
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
FQA
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
machine in my factory?
2.How to visit our company:
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station (1 hour),then we can pick up you.
B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.
