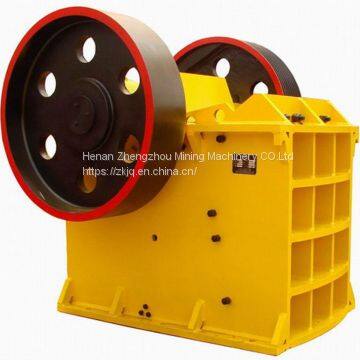

Primary Crushing Stone Jaw Crusher

Max feeding size:210-102o(mm)
Capacity:3-500(t/h)
Inlet Size:250×400-1200×1500(mm)
Applied material:limestone, fly ash, coal powder

Production introduction

The structure of primary crushing stone jaw crusher: main frame, eccentric shaft, a large belt pulley, fly wheel, swing jaw, side guard plate, toggle plate, Rear bracket, adjust gap screw, reset spring, and fixed jaw and swing jaw board etc., and the toggle plate also plays a role of protection.

The motor transmits power through belt and belt pulley, drives the swing jaw surround the eccentric shaft do periodic motion. The angle between toggle plate and swing jaw increases when swing jaw moves up., which makes the moving jaw get closes to the fixed jaw crusher.

At the same time the material is squeezed, rubbing, grinding and other multiple broken. The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

Jaw Crusher for sale - Product advantages:

1.Hydraulic Clearing
2.Hydraulic Adjustment
3.High Productivity
4.Standard Replacement Parts
5.Cost Effective
