Product Details
| Brand Name | ERUI | Place of Origin | China | |
| Model Number | TQ178-16/TQ178-16Y/TQ340-35/TQ340-35Y/TQ356-55/TQ508-70Y | Type | Core Drilling Rig | |
| After-sales Service Provided | Overseas service center available | Power Type | Diesel | |
| Condition | New | Power(W) | 12MPa-20MPa |
Product Description

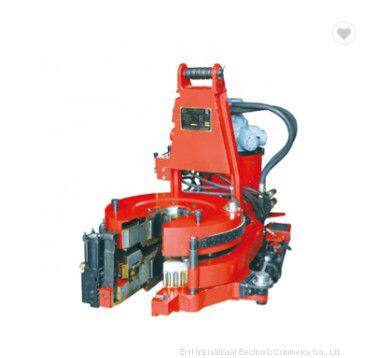

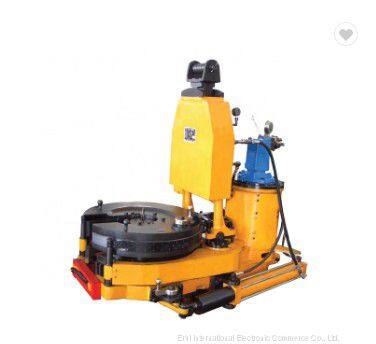

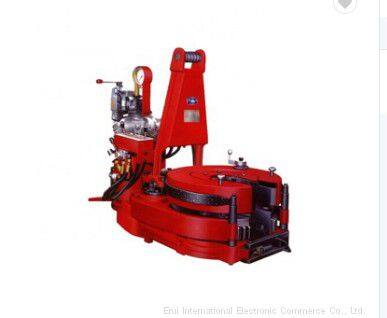

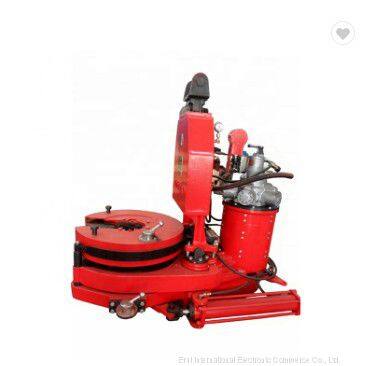

tubing power tong casing tong drill pipe tong
TQ series of casing tongs are widely used for making-up or breaking-out of casings or pipes. The casing tong features high-efficiency, safety, reliability, labor-saving, and can ensure connection quality. tubing power tong casing tong drill pipe tong head is designed as open and is fitted with two jaws which can ensure reliable gripping. Air tyre clutch is utilized as gearshifting mechanism, so it is possible to change gear under running. The series of casing tongs can be configured with torque device to perform computer monitoring and managing on pressure, torque and rounds. tubing power tong casing tong drill pipe tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment”
| Model | TQ178-16 | TQ178-16Y | TQ340-35 | TQ340-35Y | TQ356-55 | TQ508-70Y | ||
| Size range | mm | 101.6~178 | 101.6~178 | 114.3~340 | 114.3~340 | 114.3~356 | 244.5~508 | |
| 4~7 | 4~7 | 4 1/2~13 3/8 | 4 1/2~13 3/8 | 4 1/2~14 | 9 5/8~20 | |||
| ure | MPa | 18 | 18 | 18 | 21 | 16.6 | 20 | |
| 2610 | 2610 | 2610 | 3045 | 2400 | 2900 | |||
| Working flow | L/min | 110~160 | 110~160 | 110~160 | 110~170 | 110~160 | 110~170 | |
| 29.3~42.7 | 29.3~42.7 | 29.3~42.7 | 29.3~45.4 | 29.3~42.7 | 29.3~45.4 | |||
| Air pressure | MPa | 0.5-0.9 | — | 0.5-0.9 | — | 0.5-0.9 | — | |
| 72-130 | 72-130 | 72-130 | ||||||
| Max. torque | Hi. gear | kN.m | 2.4~3 | 2.4~3 | 2.5~3 | 4.0~5.6 | 3.4~4.5 | 8.4~10.7 |
| 1770~2210 | 1770~2210 | 1844~2210 | 2950~4130 | 2506~3319 | 6190~7890 | |||
| Mid.gear | kN.m | — | — | 6.0~7.5 | — | — | — | |
| 4425~5530 | ||||||||
| Low gear | kN.m | 14.5~17.5 | 15~18 | 32~40 | 26~35.2 | 45~57.4 | 48.9~70.5 | |
| 10694~12900 | 11060~13270 | 23600~29500 | 19175~25960 | 33190~42400 | 37244~52000 | |||
| Speed | High gear | rpm | 54~79 | 54~79 | 60~86 | 57~95 | 52~76 | 26~43.6 |
| Mid. Gear | — | — | 21~30 | — | — | — | ||
| Low gear | rpm | 9~13.1 | 9~13 | 3.6~5.3 | 9~15 | 3.9~5.6 | 4~6.6 | |
| Size | 1450×760×740 | 1500×760×780 | 1580×900×880 | 1580×900×860 | 1590×950×900 | 2080×1280×760 | ||
| in | 57×30×29.1 | 59×30×30.7 | 62.2×35.4×34.6 | 62.2×35.4×33.9 | 62.6×37.4×35.4 | 82×50.4×30 | ||
| Weight | 580 | 560 | 780 | 760 | 850 | 1550 | ||
| lb | 1280 | 1230 | 1720 | 1670 | 1870 | 3410 | ||
