Current or Voltage Signal Input Dual Signal Output Isolated Amplifier

FOB Price

USD $26 - $112 / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T PayPal Other
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunyuan	Place of Origin	China
Model Number	ISO EM U(A)-P-O-O	Weight	10g
Output Current	0-10mA/4 20mA/0-±20mA	Output Frequency	No
Output Voltage	0-75mV/0-5V/0-10V/0-±100mV/0-±10V	Input Voltage	0-75mV/0-5V/0-10V/0-±100mV/0-±10V

Product Description

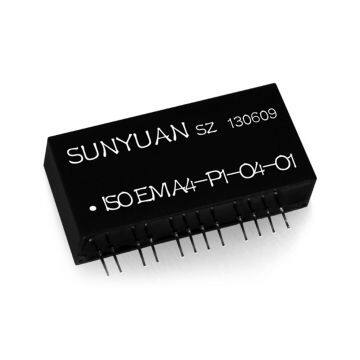

DC Current or Voltage Signal Input Dual Signal Output Isolated Amplifier
ISO EM U(A)-P-O-O Series

Introduction:

SunYuan ISO EM-U-P-O-O voltage input series and ISO EM A-P-O-O current input series analog signal dual output isolation transmitter, a (sensor output) single-channel analog voltage or current signal through the isolation, distribution, converted into a two-way precision, linearity match the hybrid integrated circuit of the standard analog signals. Analog signal isolation amplifier, the IC integrated on the same chip, high isolation DC / DC distribution power and magneto electric coupling magnetoelectric coupling low-cost program, mainly used no special requirements for EMC (Electro Magnetic Interference) occasions. Wide input and output side creepage distances and internal isolation measures so that the chip can achieve power, signal input, signal output of the two 3KVDC, four-port isolation. ISO EM series single signal input dual-output isolation transmitter IC products use very convenient, free zero-point adjustment, just an external gain adjustment potentiometer, can achieve the industrial field various sensor signal isolation, allocation, conversion functions, and can meet the industrial grade temperature, humidity, vibration and other adverse work environment requirements.

All products have passed CE & RoHS certification
The factory has obtained GB / T19001-2016 / ISO 9001:2015

Features:
1. Low cost, small size. Directly soldered on the PCB board mount. SIP 16 anti- fire UL94V-0 package
2. Easy to use, no zero adjustment except external gain adjustment.
3. Full range with high linearity. (Non-linearity<0.2%)
4. Power / signal input / two-way signal output,isolation 3000VDC, four-port isolated.
5. Auxiliary power supply: 5V, 12V, 15V, 24V.
6. SIP-16 meets UL94V-0 flame retardant package.
7. 0-75mV/0-5V/0-10V/0-±100mV/0-±10Vvoltage signal or 0-10mA/4 20mA/0-±20mA current signal isolation, amplifier and converter
8. Temperature range: -45~+85 oC

Application:
1. Divided and monitor the senor signal
2. Industrial area signal isolation, conversion, amplification and long-term transmission
3. 4-20mA signal one in two out ground interference suppression
4. Analog signal ground interference suppression, isolation and collected of data.
5. Power monitoring, medical device isolation monitoring barrier
6. Detection of instrument, meter and sensor's signal transceiver
7. 4-20mA/0-5V and other signal isolation, distribution and transformation
8. Industrial site analog and digital signal to coexist monitoring and transmission
