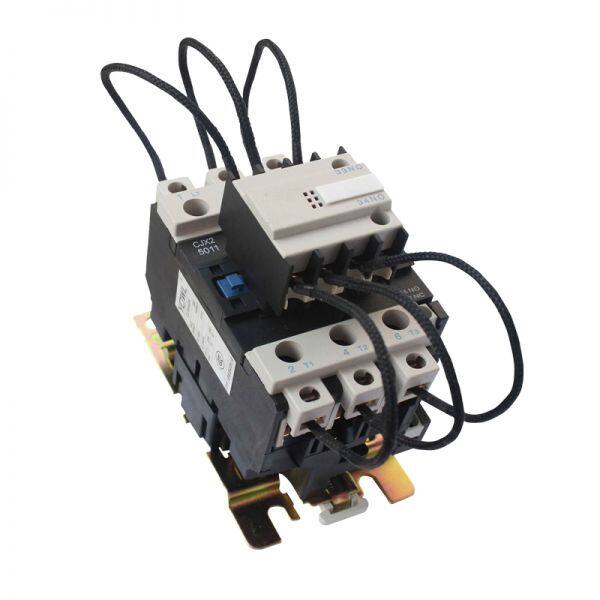

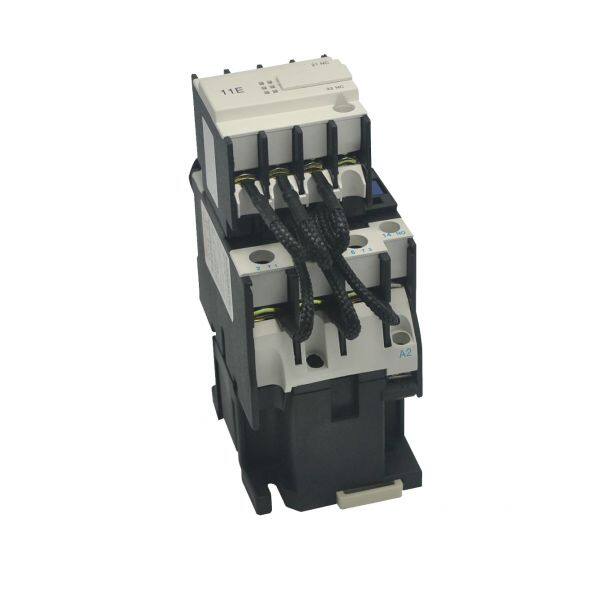

CJ19(16)-63A Low-voltage Switching Capacitor Contactor Cast Capacitor AC Contactor

The CJ19 capacitive switching contactor is suitable for switching and splitting of self-healing low-voltage shunt capacitors with rated capacity up to 50Kvar in an AC 50Hz main circuit and a voltage to 380V power system. The contactor is equipped with an inrush damper, which can effectively reduce the impact of the inrush on the electrical appliances and suppress the voltage at the time of opening and closing.
[Hua Zheng casting capacitor contactor, has more than 10 years of production experience. Good control of inrush flow; More stable and reliable than the cutting capacitor contactor on the market
Structural characteristics:
1, the contactor is equipped with a current limiting resistor, which can suppress the clogging surge within the allowed range.
2, the contactor is a straight-action double-break point structure, the action mechanism is flexible, the manual inspection is convenient, the structure is compact, and the replacement contact is convenient.
3, contactor terminal is covered with insulation cover, safe and reliable.
4, can be fitted with screw fastening, can also be attached to 35 mm or 75 mm standard mounting rails.
Select list:
CJ19(16)-25A Switch Capacitor contactor
CJ19(16)-32A Switch Capacitor contactor
CJ19(16)-43A Switch Capacitor contactor
CJ19(16)-63A Switch Capacitor contactor
CJ19(16)-95A Switch Capacitor contactor
Accompanied thermal relay
JR-36-20A
JR-36-63A
JR-36-160A
