PVC film paper sticking lamianting wrapping machine for MDF boar WPC board
- 10 Set / Sets per Month
- QIGNDAO. China
- T/T L/C
You May Like
-
automatic cold glue rubber roller press one side double sides laminating machine
-
roller paper PVC film laminating machine rubber roller woodworking machinery
-
roller paper PVC film laminating machine rubber roller woodworking machinery
-
Automatic Paper/ PVC Film/ Foil PUR Hot Melt Glue Laminating Machine Sticking Machine Woodworking Machine
-
high gloss PVC film PET PUR laminating machine with automatic loading automatic end cutting
-
PVC film laminating machine PUR hot melt glue arcylic sheet HPL sticking machine
Product Details
| Brand Name | ZHC | Place of Origin | China | |
| Model Number | 1350TZ-D | Type | Cold Glue Wrapping | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | oen year | |
| Weight | 2300KGS | Dimension(L*W*H) | 11000*2200*1800MM | |
| Voltage | 380V 50HZ 3 phase | Certification | CE ISO | |
| Condition | New | Power(W) | anout 18kw | |
| Feeding Speed | 1-20m/min |
Product Description
Product Description

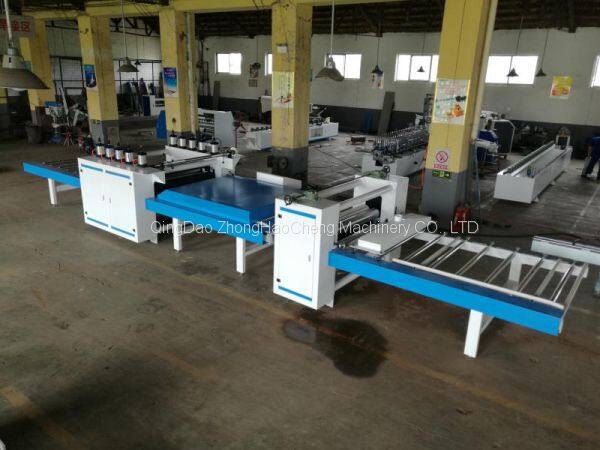

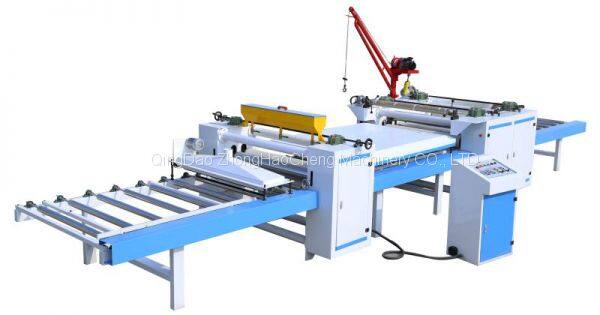

Paper and PVC laminating machine
This type pvc film laminating machine is the best choice for laminate decorative material (PVC,PE, wood grain paper etc.)on the surface of the flat board(MDF board,density board, particle board, aluminum panel,steel panel,PVC panel etc.It equipped with dust-cleaning part, glue coating machine,glue heating part, cold and hot pressure part,can finish dust-cleaning, glue coating, hot & cold pressure, material sticking.The final product has a flat surface without wrinkles
Technical parameters of pvc film laminating machine
| Item | 1350TZ-A pvc film laminating machine |
| Pressing roller control | air cylinder(when change thickness of the panel,need to adjust the air cylinder one by one) |
| Main body of the machine | Made by 16mm steel plate |
| Voltage | 380V/50HZ |
| Rated power | 18KW |
| Glue coating roller | φ190x1350mm( silicone ) |
| Heating steel Pressing roller | φ190x1350mmx2PCS |
| Rubber pressing roller | φ190x1350mmx2PCS |
| Max processing thickness | 50mm |
| width | 1350mm |
| working speed | 1-15m/min |
| Overall dimensions | 9600*2300*1600mm |
| Machine weight | 2600kgs |
| Delivery time | Within 25 working days |
| Terms of payment | 30%deposit, paid off the balance before delivery. |
Detail information of pvc film laminating machine

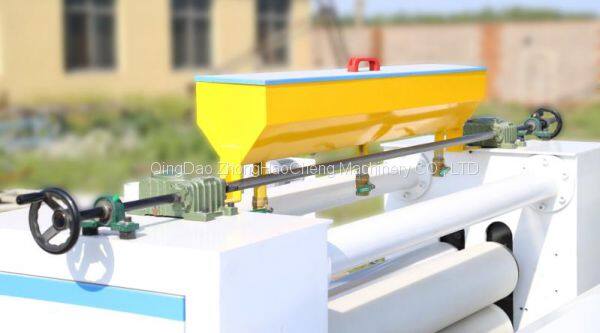

The glue coating part of pvc film laminating machine
1:Steel roller together with rubber roller makes the glue coating more uniform.
2:The machine adopt big glue box, adding glue will be more convenient and quick.
3:Main body made by 16mm thickness steel panel,make sure the service life of the machine longer

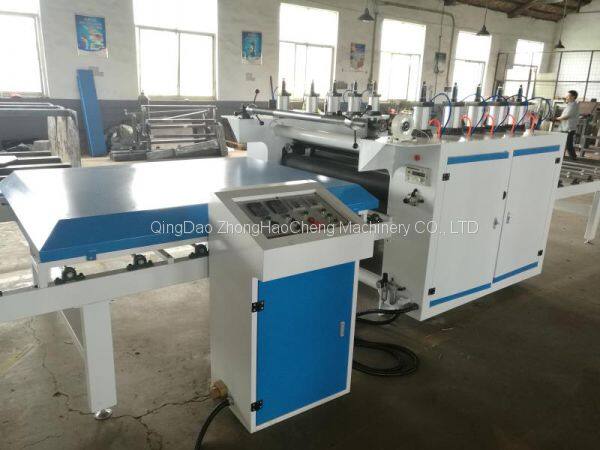

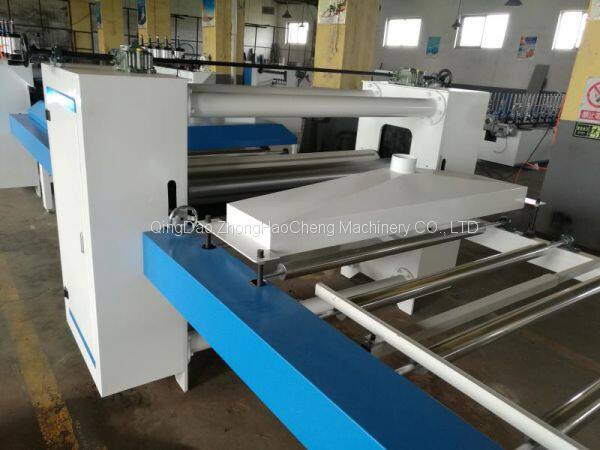

The pressing part of pvc film laminating machine
1:Two sets of hot steel pressing roller together with two sets of cold rubber pressing roller.
2:The steel rollers continuous heating in a constant temperature to make sure the surface much more flat.
3:Main body made by 16mm thickness steel panel,make sure the service life of the machine longer

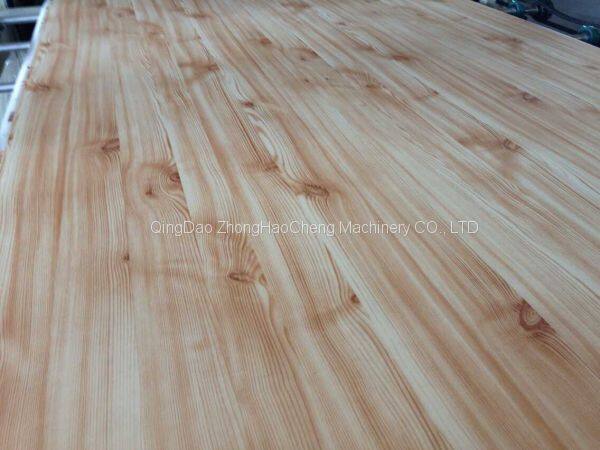

Final product of pvc film laminating machine
This photo shows laminate pvc film on Particle board,the surface is flat and strong.
