Advanced Double-armed Fully Hydraulic Close Die Forging Hammer Machinery

Close die forging hammer fully hydraulic type is one the mature product of Team Anyang Forging Press, which includes C92K series fully hydraulic CNC closed die forging hammer, C86Y series fully hydraulic closed die forging hammer, and C66Y series fully hydraulic open die forging hammer. The all series fully hydraulic close die forging hammers are widely applied in automobile forgings, motorcycle forgings, aerospace forgings, army forgings, hardware forgings etc.

Team Anyang forging Press provide experience in providing turn-key solutions for forging companies including project management for building whole production line and facilities.

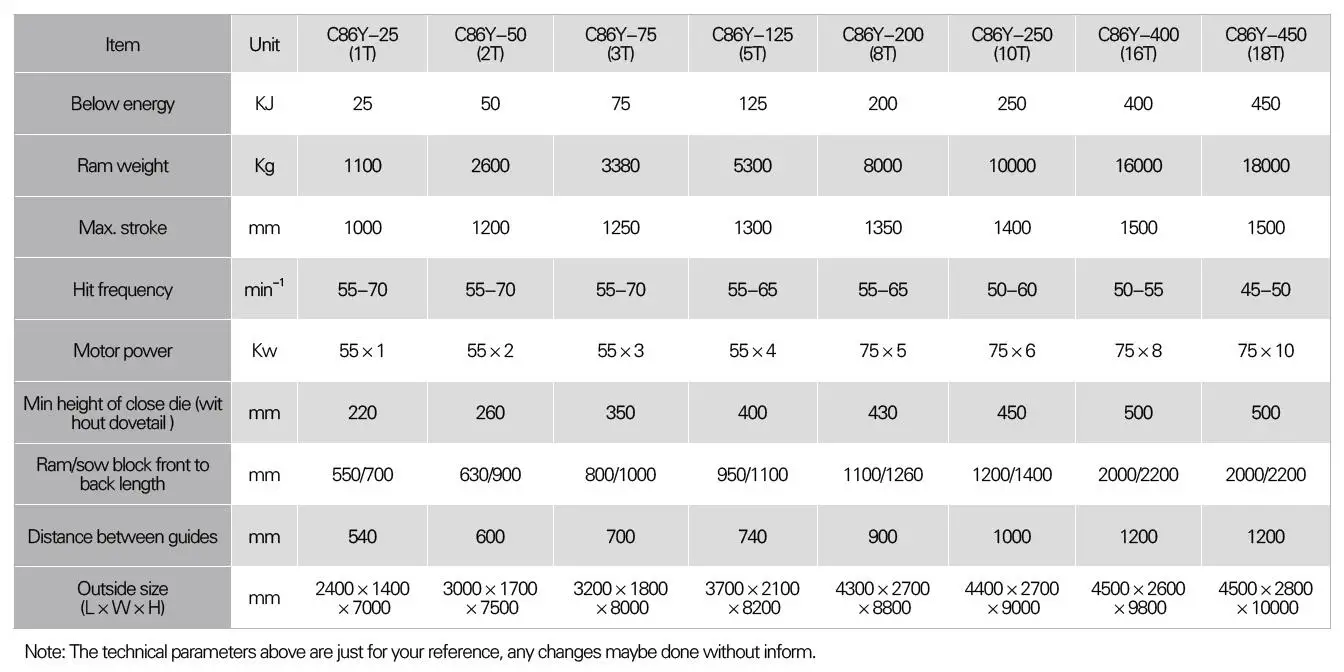

Our C86Y series Fully hydraulic forging hammer for close die forging includes 25 KJ, 50 KJ, 75 KJ, 125 KJ, 200 KJ, 250 KJ, 400 KJ, and 450 KJ.

Anyang Forging Press since 1956, China forging hammer national standard is drafted by us,  we exported our C86Y series fully hydraulic close die forging hammer to India, Russia, UK, etc 30+ countries.

We also can help our customers to convert the old steam hammer or drop hammer into fully hydraulic forging hammer. it will save your investment to get one hydraulic hammer which one can save running cost 40%-80%.

Advantages of C86Y series fully hydraulic close die forging hammer compare with steam hammer.

1. Running cost save 40-80%.

Hydraulic Forging Hammer can save about 80% cost compare with steam forging hammer and can save 40%-50% cost compare with air compressor hammer.

2. There is no pollution when running.
There is no steam generator brun oil or coal, so there is no black smoke come out.

3. Save 60% space.
No boiler and air compressor station, it can save 65% area than the steam hammer and air compressor hammer

4. Save prepare working time
As you know, have to burn boiler long time before run steam hammer. but hydraulic hammer can working at once when you switch on.

5. Good guide ability&good forging quality.
Hydraulic closed die forging hammer use “X”shape guide , single guide clearance is about 0.3mm, the die alignment is good when forging, forging accuracy is better than other hammers.

Advantages of C86Y series fully hydraulic close die forging hammer compare with belt drop hammer.

1. Output is higher than belt drop hammer 1-1.5 times. because hydraulic hammer stroke frequency is 1-1.5 times than it.

2. Save labor cost.

Belt drop hammer request one operate hammer one operate forging piece, but one workers can operate both of them on hydraulic hammer.

3.  Forging quality is better.

hydraulic closed die forging hammer guide clearance is about 0.3mm, but belt drop hammer is 0.7-1mm.

4. More powerful.

1 ton hydraulic closed die forging hammer hitting energy is 25kj, but 1 ton belt drop hammer is about 18kj.

Anyang can supply excellent oversea service.

We have 20+ oversea sales team, can supply 7*24 service.

we have 30+ engineer team to supply oversea installation and after service.

Q: How long is your delivery time?

A: Generally it is 30-60 days, if the goods are in stock,  it will be 20-35 days. If the goods are not in stock, it is according to quantity.

Q: Are you trading company or manufacturer?

A: We are factory.

Q: What are your terms of payment?

A: Payment

Anyang Forging Press since 1956, is the top manufacturer of closed forging equipments and open die forging machines in China. covers an area of about 80 acres and own 1000+ staffs, there are 210 technicians. Our workshops have 300+ sets of excellent manufacturing equipments.

Our company was appointed to produce forging hammer by the Original China National Machinery Building Administration Bureau.

Our company has passed ISO9001:2008 quality certification. All of our products have obtained CE Certificate.

We can produce closed die forging equipments includes ( CNC fully hydraulic die forging hammer, electro hydraulic die forging hammer, full hydraulic die forging hammer, round steel bar shearing machine , grinding steel ball skew rolling mill etc), free forging machine(pneumatic forging hammer, single frame free forging hammer, double frame open die forging hammer, bridge type open die forging hammer, hydraulic free forging press, ring rolling machine etc) and forging auxiliary machien(forging manipulator, forging charger , key driver machine ) , Hydraulic Briquette Presses, Hydraulic Baling Presses and Hydraulic Riveting Machines.

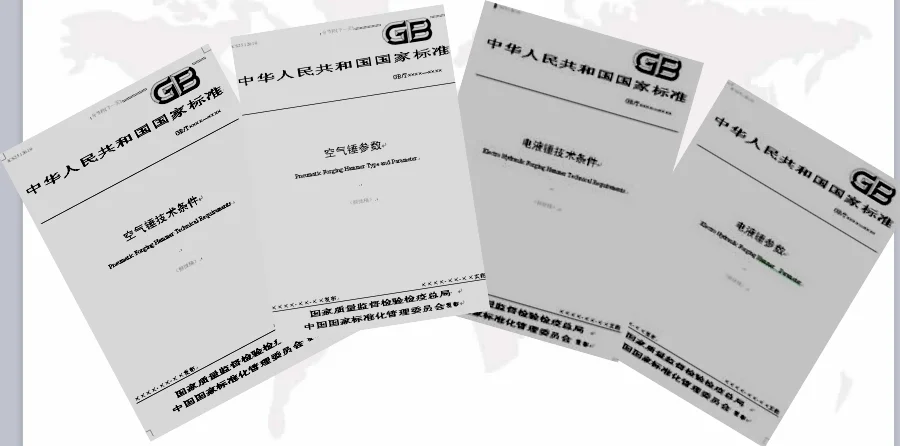

We drafted China's National Manufacturing Standard of Hydraulic forging hammer.

We drafted China's National Manufacturing Standard of Pneumatic forging hammer

We drafted China's National Manufacturing Standard of Hydraulic Briquette Presses.

We drafted China's National Manufacturing Standard of Hydraulic riveting machine.

Till now, we have exported our products to USA, Canada, Mexico, Brazil, Chile, UK, Germany, France, Italy, Norway, Romania, Russia, Slovenia, Burma, India, Pakistan, Egypt, South Africa etc 74+ countries and regions.

We locate in Anyang City, Henan Province, China. Welcome to visit us and wish we can have fruitful business cooperation.
