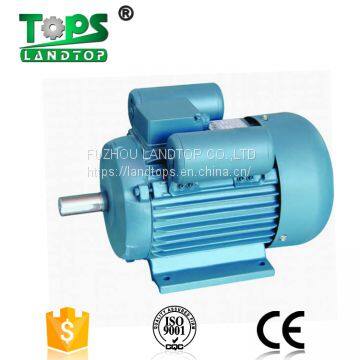

LANDTOP YC series 220v 2880rpm AC electric motors
- 10000 Piece / Pieces per Month
- fuzhou port
- T/T L/C Other Cash Escrow
You May Like
Product Details
| Brand Name | TOPS | Model Number | YC Series | |
| Rated Current | depend | Output Type | AC Single Phase | |
| Speed | 1500/1800rpm | Frequency | 50HZ/60HZ | |
| Rated Voltage | 110V/220V/230V/240V | Rated Power | 0.18kw-7.5kw |
Product Description
LANDTOP YC series 220v 2880rpm AC electric motors
YC series electric motor is used to drive small size machine, especially for household and workshop where only need single phase power supply.
Ambient temperature: -15℃≤θ≤40℃
Altitude: ≤1000m
Protection class: IP44
Insulation class: B/F
Rated voltage: 220V, other voltage on request
Cooling type: IC 0141
Duty: Continuous(S1)
Rated frequency: 50HZ, other frequency on request.
| Type | Out put | Voltage (V) | Current (A) | Freq. (Hz) | Power factor | Eff(%) | Speed (r/min) | Tstart/Tn | Ist/In | Tmax/Tn | |
| kW | HP | ||||||||||
| YC90S-2 | 1.1 | 1.5 | 220 | 7.2 | 50 | 0.95 | 73.2 | 2880 | 2.8 | 6 | 1.8 |
| YC90L-2 | 1.5 | 2 | 220 | 8.9 | 50 | 0.97 | 76 | 2900 | 2.8 | 7 | 1.8 |
| YC100L-2 | 2.2 | 3 | 220 | 13.2 | 50 | 0.96 | 78.8 | 2900 | 3 | 6.5 | 1.8 |
| YC90S-4 | 0.75 | 1 | 220 | 5 | 50 | 0.93 | 73.3 | 1450 | 2.8 | 6.5 | 1.8 |
| YC90L-4 | 1.1 | 1.5 | 220 | 7.8 | 50 | 0.9 | 75 | 1450 | 2.5 | 6 | 1.8 |
| YC100L-4 | 1.5 | 2 | 220 | 9.3 | 50 | 0.92 | 79.4 | 1450 | 2.8 | 7 | 1.8 |
| YC112M-4 | 2.2 | 3 | 220 | 13.6 | 50 | 0.9 | 81.6 | 1450 | 2.3 | 6.5 | 1.8 |
| YC132S1-4 | 3 | 4 | 220 | 18.2 | 50 | 0.9 | 83.2 | 1450 | 2.1 | 6.5 | 1.8 |
| YC132S2-4 | 3.7 | 5 | 220 | 22 | 50 | 0.9 | 84.9 | 1450 | 2.1 | 6.5 | 1.8 |
| YC132M1-4 | 5.5 | 7.5 | 220 | 32.5 | 50 | 0.9 | 85 | 1460 | 2 | 6.5 | 1.8 |
| YC132M2-4 | 7.5 | 10 | 220 | 40 | 50 | 0.9 | 85.5 | 1460 | 2 | 6.5 | 1.8 |
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do:
1.Stamping of lamination
2.Rotor die-casting
3.Winding and inserting – both manual and semi-automatically
4.Vacuum varnishing
5.Machining shaft, housing, end shields, etc…
6.Rotor balancing
7.Painting – both wet paint and powder coating
8.assembly
9.Packing
10.Inspecting spare parts every processing
11.100% test after each process and final test before packing.
