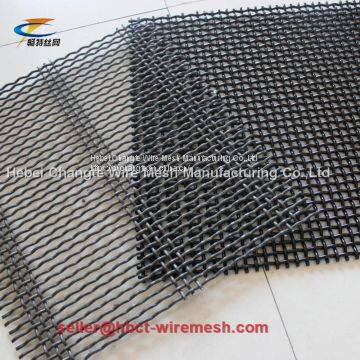

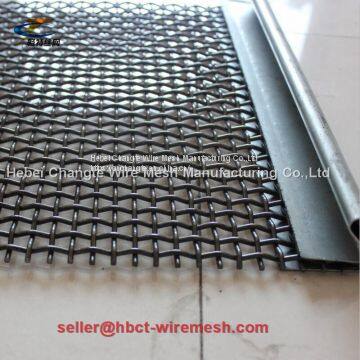

High-Carbon Steel Lock Crimped Weave Wire Mesh
Negotiable
/ Piece
10 Pieces(Min. Order)
- T/T L/C
You May Like
Product Description
WOVEN TYPE
Double crimp mining screen, single intermediate crimp mining screen, double intermediate crimp mining screen, lock crimp mining screen, flat top mining screen, pressure welded mining screen.
| S/No | Description | Size | Thickness |
| 1 | Screen Mesh. Customized size | 0.5mm | 0.3mm |
| 2 | 1.0mm | 0.75mm | |
| 3 | 1.5mm | 1mm | |
| 4 | 2.0mm | 1.5mm | |
| 5 | 3.0mm | 2mm | |
| 6 | 4.0mm | 2.5mm | |
| 7 | 5.0mm | 3mm | |
| 8 | 6.0mm | 3mm | |
| 9 | 7.00mm | 3mm | |
| 10 | 8.0mm | 3mm | |
| 11 | 9.0mm | 3.5mm | |
| 12 | 9.5mm | 3.5mm | |
| 13 | 10. mm | 4mm | |
| 14 | 11.0mm | 4mm | |
| 15 | 12.0mm | 4mm | |
| 16 | 12.5mm | 4mm | |
| 17 | 13.0mm | 4mm | |
| 18 | 14.0mm | 4mm | |
| 19 | 15.0mm | 4mm | |
| 20 | 16. mm | 4mm | |
| 21 | 17. mm | 4.5mm | |
| 22 | 18. mm | 5mm | |
| 23 | 19. mm | 5mm | |
| 24 | 20.0mm | 6mm | |
| 25 | 21.0mm | 6mm | |
| 26 | 22.0mm | 6mm | |
| 27 | 23.0mm | 6mm | |
| 28 | 24.0mm | 6mm | |
| 29 | 25.0mm | 6mm | |
| 30 | 26.0mm | 6mm | |
| 31 | 30.0mm | 6.5mm | |
| 32 | 32.0mm | 7mm | |
| 33 | 35.0mm | 7mm | |
| 34 | 38.0mm | 8mm | |
| 35 | 40.0mm | 8mm | |
| 36 | 45.0mm | 8mm | |
| 37 | 50.0mm | 8mm | |
| 38 | 55.0mm | 8mm | |
| 39 | 60.0mm | 8.5mm | |
| 40 | 65.0mm | 8.5mm | |
| 41 | 75.0mm | 9 mm | |
| 42 | 80.0mm | 9 mm | |
| 43 | 90.0mm | 9mm | |
| 44 | 100.0mm | 10mm |
| Mesh | Wire diameter (mm) | Opening (mm) | Mesh | Wire diameter (mm) | Opening |
| 3X3 | 1.60 | 6.87 | 20X20 | 0.27 | 1.00 |
| 4X4 | 1.20 | 5.15 | 22X22 | 0.25 | 0.90 |
| 5X5 | 0.95 | 4.13 | 24X24 | 0.23 | 0.83 |
| 6X6 | 0.80 | 3.43 | 26X26 | 0.20 | 0.78 |
| 8X8 | 0.60 | 2.57 | 28X28 | 0.18 | 0.73 |
| 10X10 | 0.50 | 2.04 | 30X30 | 0.15 | 0.70 |
| 12X12 | 0.50 | 1.61 | 35X35 | 0.14 | 0.59 |
| 14X14 | 0.40 | 1.41 | 40X40 | 0.14 | 0.50 |
| 16X16 | 0.35 | 1.24 | 50X50 | 0.12 | 0.39 |
| 18X18 | 0.30 | 1.11 | 60X60 | 0.12 | 0.30 |
