Product Details
| Place of Origin | China | Model Number | PHG.0B.305.CLLD.42Z |
Product Description

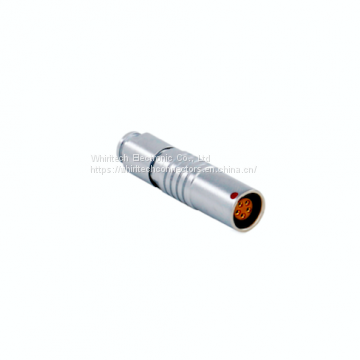

PHG.0B.305.CLLD.42Z free socket
Part Number: PHG.0B.305.CLLD.42Z
Series/Size: 0B
Number of pins: 5pin
Housing Material: Brass(Chrome plated) shell and collet nut, brass(nickel plated) latch sleeve and mid pieces
Insulator Material: PPS
Contact Material: Brass, gold plated
Contact Type: solder
Contact Diameter: 0.7mm
IP Rating: IP 50
Max Mating: 5000
Mating with FGG.0B0305.CLAD42Z
B series main features:
Security of the push-pull self-latching system
Solder or print contacts(straight or elbow)
360 degree screening for full EMC shielding
Multipole types contacts
Multipole key options to avoid cross mating of similar connectors
Keying system for connector alignment
CE, FCC, RoHS, REACH compliance
