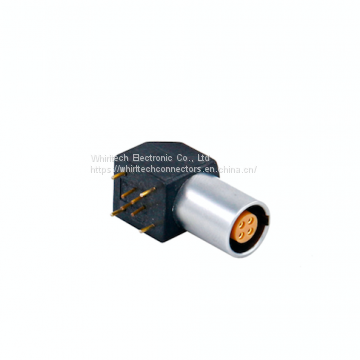

EPG.1B.304.HLN elbow socket for printed circuit
- T/T PayPal Other
You May Like
-
PHG.0B.305.CLLD.42Z free socket
-
Push-pull FNG.0B.305.CLAD52Z metal straight plug connectors with lanyard release
-
FHG.00.305.CLAD30Z elbow plug
-
Push pull self-latching FGJ.2B.308.CLLD62Z metal free socket connectors
-
Push-pull FGG.3B.308/EGG.3B.308 pneumatic connectors(plug and socket)
-
PHG.3B.330/FGG.3B.330 plug and socket
Product Details
| Place of Origin | China | Model Number | EPG.1B.304.HLN |
Product Description
EPG.1B.304.HLN elbow socket for printed circuit
Part Number: EPG.1B.304.HLN
Series/Size: 1B
Number of pins: 4pin
Housing Material: Brass(Chrome plated) shell, brass(nickel plated) nuts
Insulator Material: PPS
Contact Material: Brass, gold plated
Contact Type: solder
Contact Diameter: 0.9mm
Max Mating: 5000
Mating with FGG.1B.304.CLAD52Z
B series main features:
Security of the push-pull self-latching system
Solder or print contacts(straight or elbow)
360 degree screening for full EMC shielding
Multipole types contacts
Multipole key options to avoid cross mating of similar connectors
Keying system for connector alignment
CE, FCC, RoHS, REACH compliance
