ChinaHome > Products > Umbilical Electrical Cable > Electrical Flex Cable 2 Layer Total Shielding Wear Resistance
Electrical Flex Cable 2 Layer Total Shielding Wear Resistance
- Any Port of China
- T/T L/C D/P D/A Credit Card PayPal
- 15 days
You May Like
Product Details
| Jacket | ETFE | Conductor Material | Aluminum | |
| Application | Construction | Type | High Voltage | |
| Insulation Material | ETFE | |||
| Place of Origin | China |
Product Description
Description：

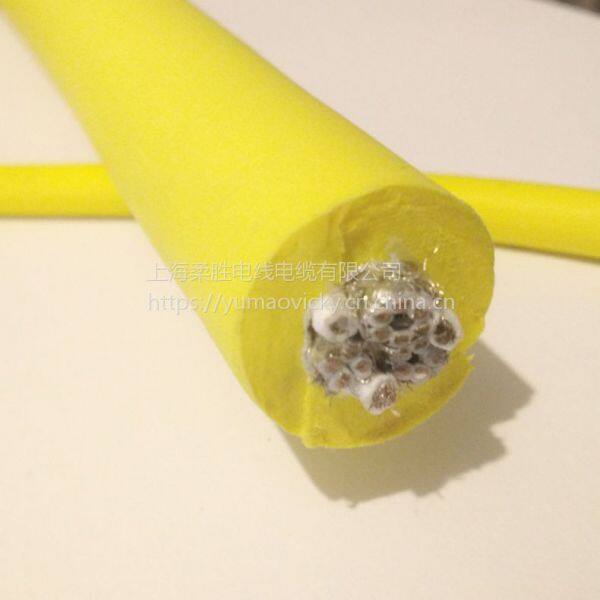

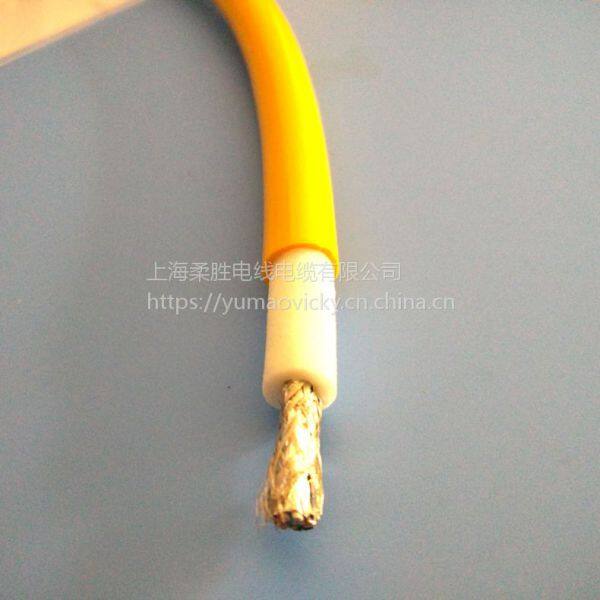

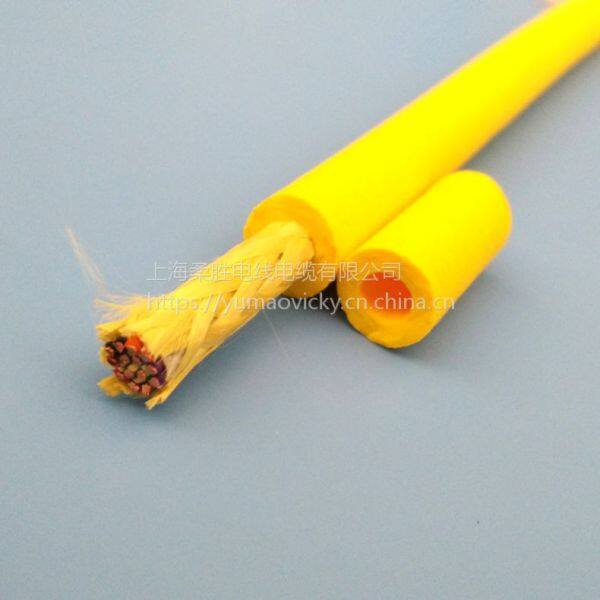

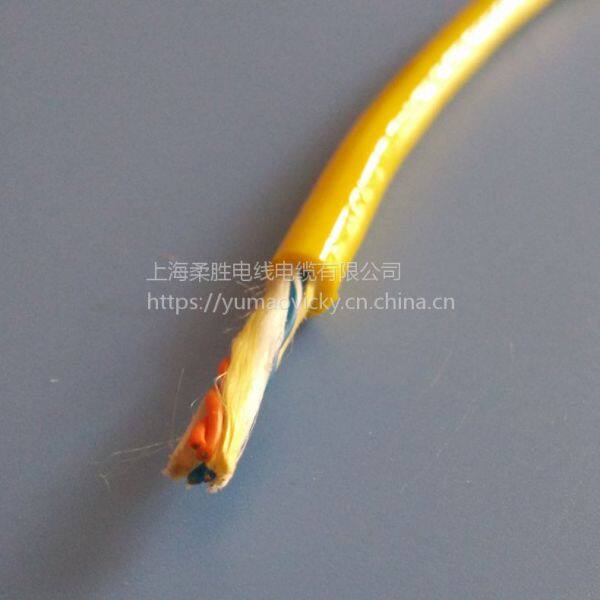

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems
Specifiation:
Model Number
| RS
|
Specifications
| ROV Cable
|
Outer Diameter | 5±0.2MM |
Conductor
| Anodized Bare Copper Wire
|
Insulation
| Special Seawater-proof PE Material
|
Core color
| Color Separation
|
Tensile Structure | Imported Kevlar Bulletproof Wire |
Tensile Strength
| 80kg
|
Wrapping Material
| High Quality Lightweight Nonwoven
|
Cable Shield
| None
|
Inner Sheath | Foam-proof Seawater-specific Polyether PolyurethaneMaterial (Anti-seawater, oil-resistant, acid-base, corrosion-resistant, anti-dragging, anti-microbial erosion)
|
Outer Sheath | Polyurethane Glossy Anti-seawater Corrosion Special Material |
Temperature Range
| Fixed laying: -40°C~+90°C |
Mobile Installation
| -30°C~+80°C
|
Radiation Resistance
| 8x107cj/kg (water resistant cable 5x107 cj/kg)
|
Rated Voltage
| 300/300V
|
Test Voltage
| 1500V
|
Minimum Bend Radius
| Drag and drop using 4D (cable outer diameter)
|
Insulation Material:
FPE, PE, or HT PVC 105 ℃
Type:Low Voltage, Low Voltage
Application: underwater Float water
Outer Jacket: FEP, Foam TPE Inner Jacket Press extruded TPE
Conductor: Pure Copper, Tinned Copper
Test Voltage: 1000V, 1 min
Sheath Color: Yellow, Blue, Orange
Packing: 100 meters/roll
Certificate: CE, CCC, RoHS
