Home > Products > Coil Winding Tensioner > Electronic Wire Tensioner/Yarn Tensioner for Coil Winding Machine ET Series

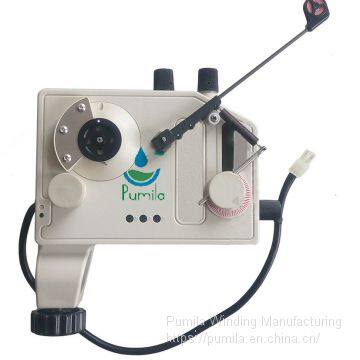

Electronic Wire Tensioner/Yarn Tensioner for Coil Winding Machine ET Series
USD $300 - $400
/ Set
1 Set(Min.Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
Digital Electronic Wire Rope Tensioner for Winding Machine Wire (0.02-1.8mm)
-
Electronic Wire Tensioner Coil Winding Machine Wire Tensioner RM Series
-
Coil Winding Electronic Tensioner with Automatic Tension Controller/RM
-
Auto Coil Winding Machine Parts Electronic Wire Winding Tensioner
-
Electronic Wire Tensioner with LED Display Winding Machine Parts Tension Control
-
Coil Winding Electronic Tensioner, Tension Control Electronic Wire Tensioner
Product Details
| Brand Name | Pumila | Place of Origin | China | |
| Model Number | ET |
Product Description
| Model | Tension Range (g) | Applied wire diamiter(mm) |
| ET-30 | 2-30 | φ0.02-φ0.06 |
| ET-100 | 10-100 | φ0.04-φ0.12 |
| ET-200 | 15-200 | φ0.06-φ0.16 |
| ET-300 | 30-350 | φ0.08-φ0.25 |
| ET-500 | 60-500 | φ0.12-φ0.35 |
| ET-1000 | 100-1000 | φ0.15-φ0.45 |
| ET-2000 | 200-2000 | φ0.20-φ0.60 |
| ET-5000 | 500-5000 | φ0.30-φ1.00 |
| ET-10000 | 2000-10000 | φ050-φ1.80 |
Product feature:
--To achieve closed-loop tension control, automatic control precision up to ± 2%(This feature is only for part of the model);
--Set features a variety of tension can be switched with the inut signal the output tension of a rapidly changing (its output value is equal to the corresponding set value), to achieve the purpose of inteligent control;
--Excitation currents through the tension control, high control precision, stability and availability of the tension has nothing to do with the winding speed, can be adapted to high-speed winding.
--With data acquisition and output capabilities with computer through RS232C communication, to achieve tension curve and data monitoring.
