Home > Products > Crimped Wire Mesh > High Carbon Steel Vibrating Screen Mesh / Crimped Wire Mesh for Mining
High Carbon Steel Vibrating Screen Mesh / Crimped Wire Mesh for Mining
- T/T L/C
You May Like
Product Description

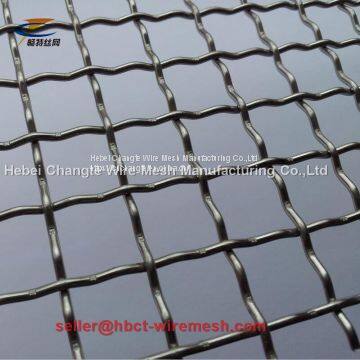

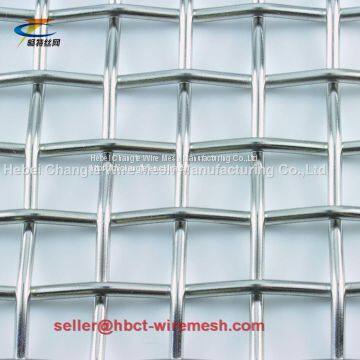

Vibrating screen mesh/Crimped Wire Mesh for Mining
1.Vibrating screen mesh Material:
1) Stinless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire,black wire.
3) Galvanized iron wire,galvanized steel wire
Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.
2.Vibrating screen mesh crimp methods: plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3.Vibrating screen mesh Features: Even mesh, strong structure
4.Vibrating screen mesh specifications:
Wire diameter:0.3mm~12mm
Hole size:1.5mm ~50mm
Width:as request
Length:as request
5.Vibrating screen mesh Hook:60-180 degree, C hook available
Hook Covered edge :galvanized metal or others
6.Vibrating screen mesh Application: it is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc
The weaving type of Vibrating screen mesh
The packing of Vibrating screen mesh
| Specification List of Crimped Wire Mesh/Wire Mesh for Roast | ||||
Wire Gauge SWG | Wire Diameter mm | Mesh/Inch | Aperture mm | Weight kg/m2 |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
