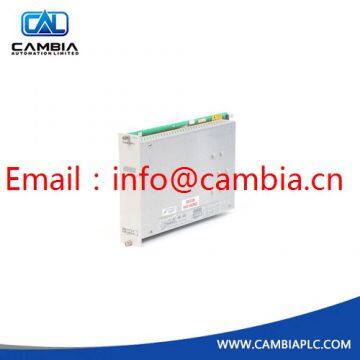

3500/93 135799-01 BENTLY NEVADA

Rack-Based Machinery Monitoring System

3500/05 System Rack

The 3500/05 System Rack holds all 3500 monitor modules and rack power supplies, allowing modules to communicate with each other, with System 1 software and power supplies to distribute power to each module as needed. The 3500 system rack is an integral part of the Bently Nevada Turbine Supervisory Instrumentation (TSI) suite for steam turbines.

Would you like to know more?

 contact us: Molly

 info@cambia.cn

 +86 13599507613

Product Features

Two size options

Available in a full-size standard EIA 19-inch rack with 14 monitor module slots and for installations with tight space requirements, such as onboard a ship or machine skid. A mini-12-inch rack with 7 monitor module slots is also available.

Three flexible mounting formats

The panel mount style securely fits rectangular cutouts in control panels, such as in a control room or prepared panel where a flush-mount installation is required. The rack mount fits standard EIA 19-inch rails for cabinet style installations. The bulkhead mount enables rack positioning on a wall or inside a panel to accommodate front-mounted Input/Output (I/O) modules where rear-access is not an option.

Housing protects the 3500

Bently Nevada’s 3500/06 Weatherproof Housing is available to protect the 3500 System against adverse environmental conditions, such as excessive moisture, dirt, grime and unclean air. An optional purging system is also available that protects the rack from outside elements.

Internal barrier options for hazardous ares

The 3500 rack is also available with internal barrier I/O modules that simplify the entire installation when compared to purchasing and locating external barriers. It is available with multiple Hazardous Area and country-specific approvals.

Intrinsic safety

The 3500 System is also available as a SIL 2-rated system.
