High Temperature Titanium Welded Tubes
- 10 Piece / Pieces per Month
- T/T
Product Details
| Brand Name | TICHANG | Place of Origin | China | |
| Model Number | - | Application | - | |
| Technique | Cold Rolled, Hot Rolled | Grade | Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12, | |
| Dimensions | - | Powder Or Not | Not Powder | |
| Ti Content (%) | 99 |
Product Description

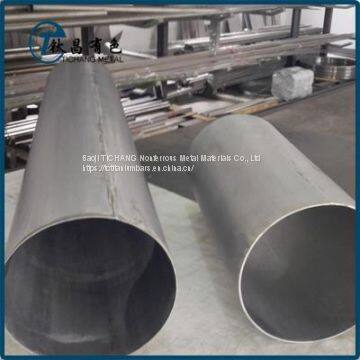

Product: High temperature Titanium Welded Pipes
Materials: Pure Titanium and Titanium alloy
Grade: Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12,
Standard: ASTM B337, ASTM B338, ASTM B861
Types: Pure Titanium and Titanium alloy Tubes
Production Process：Cold Rolled, Hot Rolled
Supply States: Annealed (M)
MOQ: 50 Kg
Payment Method: TT
Applications: Titanium and Titanium alloy Welded Pipes are widely used in chemical equipment, electrical equipment, instrument, Desalination of sea water, salt-making equipment, ocean anti -corrosion, papermaking equipment, petroleum drilling equipment, petroleum detection equipment, automobile and motorcycle exhaust pipe, heat exchanger, condenser, heater distiller, reactor,s-eparator, evaporator, etc…
Chemical Requirements:
Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
GR 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
GR 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
GR 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
GR 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
GR 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
GR 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Physical Properties:
Grade | State | Tensile strength(min) | Yeild strength (min) | Elongation (%) | ||
Ksi | MPa | ksi | MPa | |||
GR 1 | （M）Annealed | 35 | 240 | 20 | 138 | 24 |
GR 2 | （M）Annealed | 50 | 345 | 40 | 275 | 20 |
GR 5 | （M）Annealed | 130 | 895 | 120 | 828 | 10 |
GR 7 | （M）Annealed | 50 | 345 | 40 | 275 | 20 |
GR 9 | （M）Annealed | 90 | 620 | 70 | 438 | 15 |
GR 12 | （M）Annealed | 70 | 438 | 50 | 345 | 18 |
Production specifications：
Types | OD (Outside Diameter) (mm) | Wall Thickness (mm) | Length (mm) |
Welded Tubes | 19.0-630.0 | 1.0-10.0 | Max. 12000 |
