Power saving Garment silicone label heat press machine
- 100 Set / Sets per Month
- shenzhen/guangzhou
- T/T L/C Other
- 7 days
You May Like
-
Dongguan clothes Silicone Lable/Logo Making Machine
-
The silicone Embossing Machine Used For Clothes Embossing
-
Dongguan Garment Custom Logo Pattern Embossing Machine
-
Hydraulic 2 Station Embossing Press Machine for Garment
-
Hydraulic Heat Press Embossing Machine For Clothes
-
Power saving Silicone Brand 3D logo Embossing Machine
Product Details
| Brand Name | WenTao | Place of Origin | China | |
| Model Number | WT002 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 600KG | Voltage | 220V,single phase | |
| Usage | Other, Cloths Printer, Label Printer, silicone | Condition | New | |
| Automatic Grade | Semi-Automatic | Dimensions(L*W*H) | 795*1195*1800MM | |
| Gross Power | 7.2kw | Color & Page | Multicolor | |
| Plate Type | Screen Printer |
Product Description

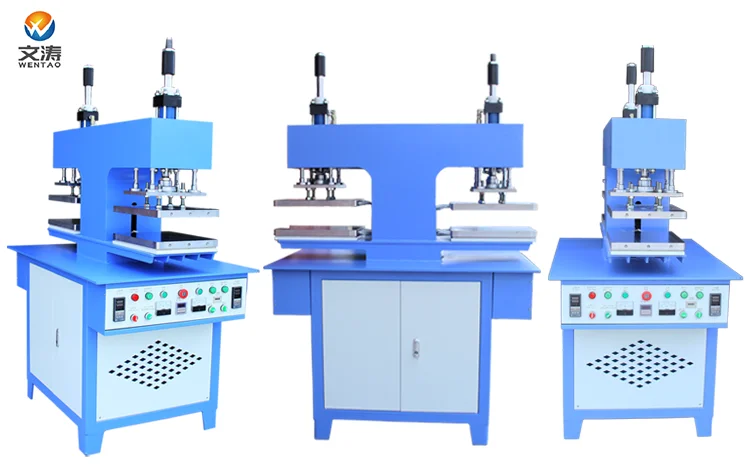

Power saving Garment silicone label heat press machine
| Machine Name | Garment silicone label heat press machine |
| system | hydraulic |
| Heating plate | with heating up and bottom |
| Work station | double station |
| Stroke | 110mm |
| Main cylinder diameter | 80mm |
| Horse | 4.5hp |
| Heating plate size | 300*400mm |
| Other Available Size | Custom size by your special order |
| heat power | 7.2kw |
| Voltage | 220V,single phase |
| machine size(L*W*H) | 795*1195*1800MM |
| Weight | 600KG |
Features: Garment silicone label heat press machine
1. Heating plate heating up and down, adjustable temperature up to 400 °C.
2. The size of the heating plate is 300*400mm, and the size of the heating plate is customized.
3. Built-in counting function, automatic counting of the number of moldings during production.
4. Two working positions, which can be controlled independently or simultaneously.
5. Hydraulic pressure, stable and safe performance, strong product adhesion.
6.djuster of distance: the distance of both plates is can be controlled according to material and the thickness of the pattern.
7.servo motor: it can delay working time and shut down automatically, which can save energy and protect oil system.
Application:
silicone label embossing machine for silicone label embossing, garments embossing, like knitted fabric material and decorative molding embossing.
application: Garment silicone label heat press machine
1. T-shirt trademark embossing;
2. Denim embossing;
4. Microfiber fabric/gloves silicone trademark/silicone thermal transfer;
5. Silicone bracelet embossing hot pressing;
5. Thermal transfer and bronzing of ready-to-wear/knit fabric/shoes
Process of silicone label Embossing: Garment silicone label heat press machine
1.stroke adjust between heating plates, Adjuster of distance: the distance of both plates is can be controlled according to material and the thickness of pattern.
2.silicone and catalyst mixing, mixing as the ratio, for fix mold on the heating plate and fabric prining
3.mixing silicone with color,
4.vacuum, to remove the bubble
5.filling silicone into the mold, multi-color can be filling by automatic dispensing machine,
6.heating press by silicone label embossing machine, up to temp use 160-180 degree,
press time about 15s-18s,
oling, then finish.
Our Factory, Garment silicone label heat press machine
Seaworthy wooden packaging
