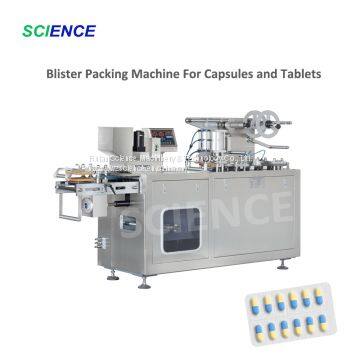

Small Blister Packing Machine
- NINGBO
- T/T
- 30 days
You May Like
Product Details
| Brand Name | SCIENCE | Place of Origin | China | |
| Model Number | DPB-80 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Weight | 450KG | Dimension(L*W*H) | 1500x600x1200mm | |
| Voltage | 380V/220V | Power | 3000W | |
| Application | Chemical, Food, Machinery & Hardware, Medical | Condition | New | |
| Automatic Grade | Automatic | Driven Type | Mechanical |
Product Description
Features
1. Using the newest type of power transmission mechanism, driven by the main drive shaft row chain, eliminating errors and other gear noise.
2. Imported electrical control system, can according to customer requirements, configuration, lack of material means and lack of grain fill leak detection device removed.
3. Sub-machine uses a combination of: PVC forming, feeding, sealing a section of tropical aluminum cold forming, heat sealing, punching a section of the packaging can be split.
4. Using photoelectric control systems, PVC, PTP, hard aluminum packaging automatic feeding, automatic punching waste edge device to ensure ultra-long-range multi-bit synchronous stability.
5. Can be corrected photoelectric detection device comes with imported stepper motor traction, graphic printing on packaging, optimized packaging grades.
6. The machine is suitable for: capsules, tablets, injections, and medical devices and other special-shaped, lightweight food, electronic components sealed blister pack.
Technical Parameters:
Model | DPB-80 |
Punch Frequency | 10-35 (times/min) |
Production Capacity | 2400 edition/hour |
Max. Formed area and Depth | 70*110*26（mm） |
Travel Range | 20-80mm( adjustable ) |
Standard Plate | 80*57mm ( adjustable ) |
Air Pressure | 0.6-0.8（M） |
Total Power | 380V/220V 50Hz 3.0Kw |
Main Motor Power | 0.75Kw |
PVC Hard Pieces | 0.15-0.5*80 (mm) |
PTP Aluminum Foil | 0.02-0.035*80 (mm) |
Dialysis Paper | 50-100g*80（mm） |
Mold cooling | Tap water or recycled water |
Overall Dimensions | 1500*600*1200 (mm) |
Weight | 450（Kg） |
Noise target | <75dBA |
Work Process:
1. Forming (upper and lower heating)
2. Sealing (heating on)
3. Play yards
4. Indentation (can trace heating)
5. Cutter
6. Forming the output of finished
