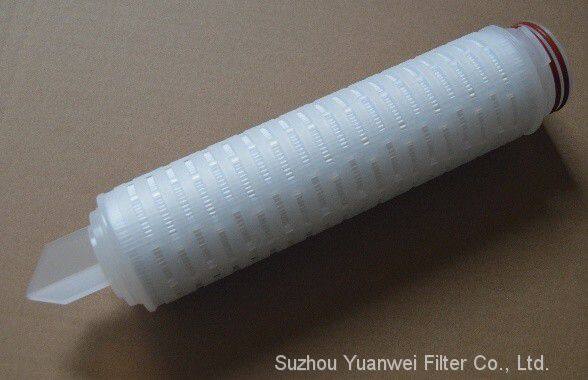

Sterilization Grade Pleated Hydrophobic PTFE Membrane Air & Gas Filter Cartridge

PTFE Filter Cartridge

PTFE Filter is a sterilizing grade air & gas filter that utilize naturally hydrophobic material provides effective retention of microbes and particles in air/gas.

Features

Inherently hydrophobicity.

High flow rates at low differential pressures.

High steam cycle lifetimes and thermal strength.

Reliable separation of microorganisms and bacteriophage

Materials

Media Layer:                      Hydrophobic PTFE

Support Layer:                    Polypropylene

End Caps/Core/Cage:        Polypropylene

O-Rings/Gaskets:               Silicon, EPDM, Viton, Teflon

Internal Adaptor Ring:         PS / Stainless Steel 304

Micron Rating(μm)：   0.2

Length(Inch)：            10, 20, 30, 40

Connection：              222+Flat, 222+Fin, 226+Fin, DOE

Operating Conditions

Max. running temperature:               80 ℃

Max. Allowable Differential Pressure: ≤4Bar(20℃)，≤2.4Bar(70℃)

Inline Steaming Sterilize:                  134℃, 30min@max differential Pressure of 0.05MPa up to 25 times

Food and Biological Safety：

Extractables:<30mg Per 10 Inch

Endotoxins：<0.25 EU/mL

Ordering Information
