Product Details
| Brand Name | SaiFu | Place of Origin | China | |
| Model Number | cbb61 | Type | Polypropylene Film Capacitor | |
| Application | AC / Motor | Rated Voltage | 220vac- 800vac | |
| Operating Temperature | 40/70/21 or 40/85/21 | Package Type | Through Hole | |
| Capacitance | 0.47uf - 35uf |
Product Description
SAIFU factory ceiling fan wiring diagram CBB61 capacitor
Features of CBB61 capacitor:
1. Rectangle flame retardant plastic case, epoxy resin sealed;
2. Small size ,light weight ,convenient for installation;
3. Low dissipation factor, high insulation resistance;
4. Self-healing property, high stability and reliability;
5. Suitable for electric fan, exhaust fan, electric sewing machine, water pump etc., beneficial to the starting and running of AC motor.

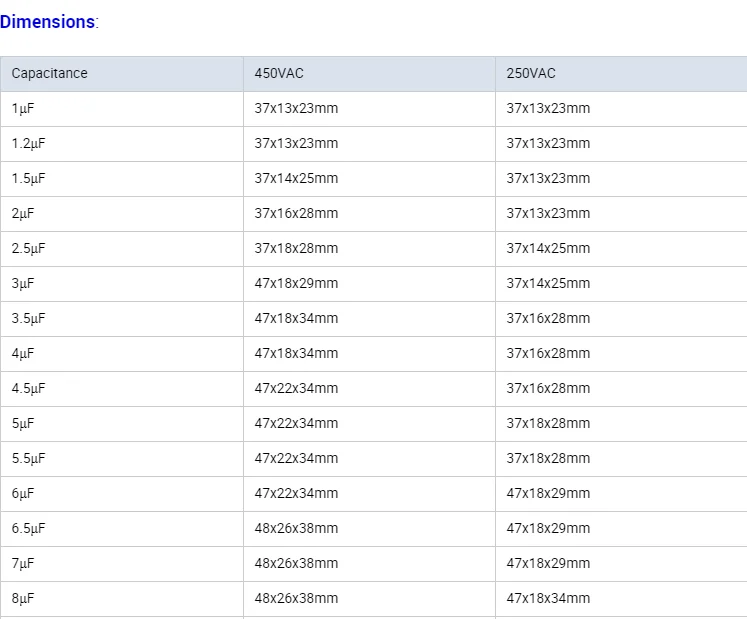

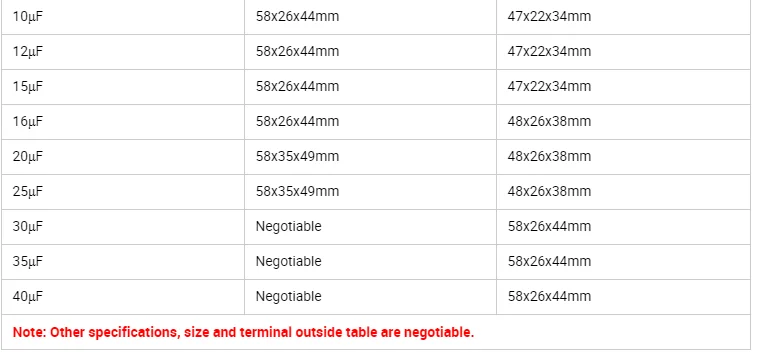

Specifications:
Advantage of products:
1. Company has the high-vacuum coating machines, High-speed slittling machine, winding machines, four-gun spray system and other automatic equipment.
2. The highly educated workers have many years experience.
3. Precision test equipment, as high precision digital bridge, precision moisture tester, voltage test equipment, etc.

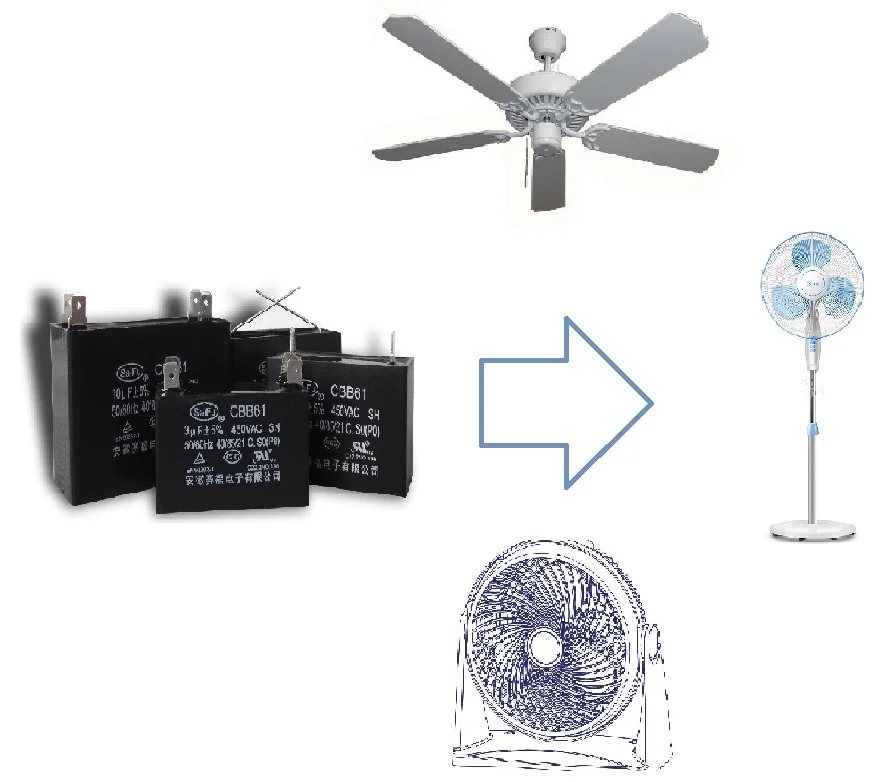

Application:
Widely Applied to the Starting and running of AC single-phase motor at 50HZ/ 60HZ frequency power.
Information: As a company which is specialized in manufacturing metallized film for capacitor use and metallized film capacitors for about 10 years, we possess non-dust workshop, many professional manufacturing equipments, many professional test equipment and testing instruments.
Honor: Trademark SaiFu is the famous trademark of AnHui.
National high-tech enterprise in 2012, 2015 and 2018
Aspiration: To be a world-class supplier of the energy field.
You can see part of them from below pictures:
The company has obtained ISO9001,SGS,VDE,TUL,UL and CQC certificate .
