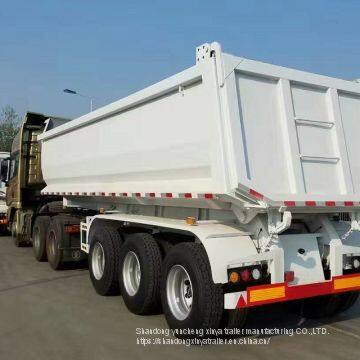

tipper trailer,dump trailer

Tare Weight

7000KG

Loading Weight

100ton

Axle

13T  3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand

Leaf Spring

90*13-10  6/8 sets, Funiu or Taiyue or other china brand

Suspension system

Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)

Main Beam

The height of the beam is 500mm,upper plate 14mm,down plate is 16mm,middle plate is 6/8 mm, Material is Q345 Carbon Steel

Side Beam

14#/16# channel steel (Q235)

 Cross member

8#/10# channel steel (Q235)

 Lifting system

Full set of Hyva hydraulic system

 Dump Box thickness

Bottom 5mm, Side 4mm

Tire Type and quantity

12R22.5-18  12units

Steel Rim

9.00-22.5  12Units

Tool Box

1 Standard  (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)

Traction Pin

2"(50mm)or3.5"(90mm)

Spare Wheel Bracket

1 piece

Landing Gear

Standard 28Ton, JOST brand or FUWA brand or other china brand.

Brake system

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks， ABS Optional upon choice

Electrical system

1. Voltage:24V， LED lights

2. Tail lamp with turn signal, brake light & reflector, side lamp etc.

3.Receotacle:7 ways (7 wire harness)

Color

As the customer request

Painting

Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints

other

Can add Mid & Rear Side protection
