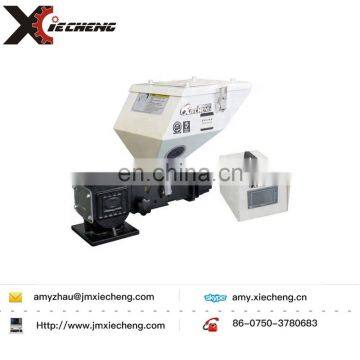

Two Color Plastic Volumetric Doser for Doser Machine
US$ 1,200 - 2,500
/ Set
1 Set(Min. Order)
- Jiangmen/Shenzhen/Guangzhou
- T/T Credit Card
You May Like
Product Details
| Brand Name | XIECHENG | Place of Origin | Guangdong, China | |
| Warranty | 1 year | |||
| Weight | 25kg | Dimension(L*W*H) | 450*560*310mm | |
| Production Capacity | 0.05-20KG/HR | Voltage | 220V50Hz1 Phase | |
| Certification | CE | Application | extruder ,injection machine | |
| Condition | New | Power(W) | 0.12kw | |
| Automatic Grade | Automatic |
Product Description
Two color plastic volumetric doser for doser machine in masterbath
A volumetric doser is used for mixing the colorant with plastic material accurately ,the microcomputer can calculate the quantity needed
in a certain period of time when one enters in a certain period of time when one enters the injecting quantity, the proportion and the time
of melting. It makes it easy to provide mixed material as long as there are colorant and the required quantity.
| Model | Singel Color Unit | Double Color Unit | ||||||||
| SCM-30-16 | SCM-30-14 | SCM-30-12 | SCM-100-16 | SCM-100-14 | SCM-100-12 | SCM-D-30/30 | SCM-D-30/100 | SCM-D-100/100 | ||
| Motor Power(kw) | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06×2 | 0.06×2 | 0.06×2 | |
| Rev(r.p.m.) | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | |
| Mixer Power(kw) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | |
| Screw External Dia.(mm) | 16 | 14 | 12 | 16 | 14 | 12 | ** | ** | ** | |
| Output Capacity(kg/hr) | 1.1-32 | 1.1-20 | 0.3-10 | 0.5-15 | 0.2-8 | 0.1-4 | * | * | * | |
| Storage Capacity(L) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Gear Ratio | 30:1 | 30:1 | 30:1 | 100:1 | 100:1 | 100:1 | 30:1/100:1 | 30:1/100:1 | 30:1/100:1 | |
| Main Material Hopper | Optional | Optional | Optional | Optional | Optional | Optional | norm | norm | norm | |
| Mixer Power(kw) | Optional | Optional | Optional | Optional | Optional | Optional | norm | norm | norm | |
| Floor Stands | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
| Dimensions | ||||||||||
| H(mm) | 580 | 580 | 580 | 580 | 580 | 580 | 580 | 580 | 580 | |
| W(mm) | 530 | 530 | 530 | 530 | 530 | 530 | 900 | 900 | 900 | |
| D(mm) | 290 | 290 | 290 | 290 | 290 | 290 | 290 | 290 | 290 | |
| Approx.Net Weight(KG) | 29 | 29 | 29 | 29 | 29 | 29 | 50 | 50 | 50 | |
...
