Single-color Volumetric Doser in plastic mixer
USD $1,200 - $2,500
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- Jiangmen/Shenzhen/Guangzhou
- T/T Credit Card
You May Like
-
masterbatch color volumetric screw doser
-
high quality cups doser packing system/volumetric cups packing machine factory
-
Two color plastic volumetric doser for doser machine
-
frp round cooling tower water
-
CE standard high quality bearing weight of cooling tower
-
Industrial Fiberglass Round Open Cooling Tower
Product Details
| Brand Name | XIECHENG | Place of Origin | Guangdong, China | |
| After-sales Service Provided | Overseas service center available | Warranty | 1 year | |
| Weight | 25kg | Dimension(L*W*H) | 450*560*310mm | |
| Production Capacity | 0.05-20KG/HR | Voltage | 220V50Hz1 Phase | |
| Certification | CE | Application | extruder ,injection machine | |
| Condition | New | Power(W) | 0.12kw | |
| Automatic Grade | Automatic |
Product Description

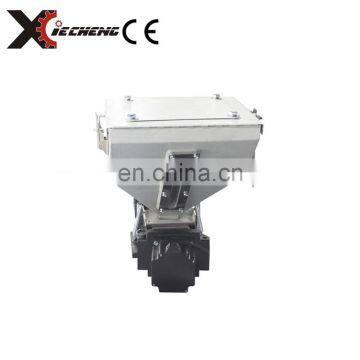

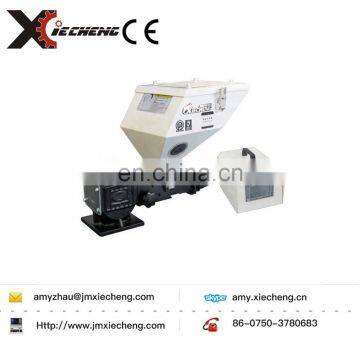

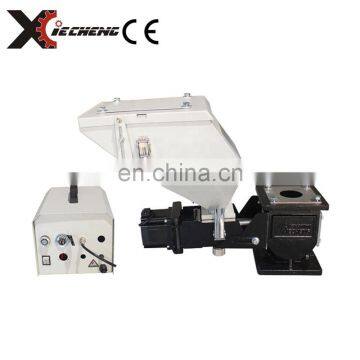

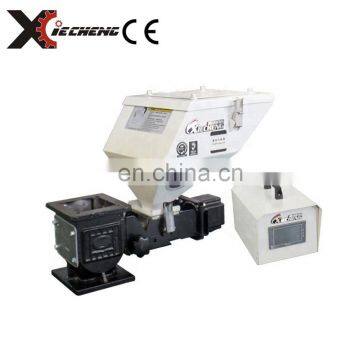

Single-color Volumetric Doser in plastic mixer
A volumetric doser is used for mixing the colorant with plastic material accurately ,the microcomputer can calculate the quantity needed
in a certain period of time when one enters in a certain period of time when one enters the injecting quantity, the proportion and the time
of melting. It makes it easy to provide mixed material as long as there are colorant and the required quantity.
| Model | Singel Color Unit | Double Color Unit | ||||||||
| SCM-30-16 | SCM-30-14 | SCM-30-12 | SCM-100-16 | SCM-100-14 | SCM-100-12 | SCM-D-30/30 | SCM-D-30/100 | SCM-D-100/100 | ||
| Motor Power(kw) | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06×2 | 0.06×2 | 0.06×2 | |
| Rev(r.p.m.) | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | |
| Mixer Power(kw) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | |
| Screw External Dia.(mm) | 16 | 14 | 12 | 16 | 14 | 12 | ** | ** | ** | |
| Output Capacity(kg/hr) | 1.1-32 | 1.1-20 | 0.3-10 | 0.5-15 | 0.2-8 | 0.1-4 | * | * | * | |
| Storage Capacity(L) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Gear Ratio | 30:1 | 30:1 | 30:1 | 100:1 | 100:1 | 100:1 | 30:1/100:1 | 30:1/100:1 | 30:1/100:1 | |
| Main Material Hopper | Optional | Optional | Optional | Optional | Optional | Optional | norm | norm | norm | |
| Mixer Power(kw) | Optional | Optional | Optional | Optional | Optional | Optional | norm | norm | norm | |
| Floor Stands | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
| Dimensions | ||||||||||
| H(mm) | 580 | 580 | 580 | 580 | 580 | 580 | 580 | 580 | 580 | |
| W(mm) | 530 | 530 | 530 | 530 | 530 | 530 | 900 | 900 | 900 | |
| D(mm) | 290 | 290 | 290 | 290 | 290 | 290 | 290 | 290 | 290 | |
| Approx.Net Weight(KG) | 29 | 29 | 29 | 29 | 29 | 29 | 50 | 50 | 50 | |
