New Design 800g Detachable Auto Loader
- Jiangmen/Guangzhou/Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | XIECHENG | Place of Origin | Guangdong, China | |
| Warranty | 1 year | |||
| Weight | 54kg, 14kg | Dimension(L*W*H) | 42*38*64cm | |
| Voltage | 380V/50Hz/3P | Certification | CE/ISO | |
| Application | Plastic | Condition | New | |
| Power(W) | 1100 |
Product Description
new design 800g Detachable Auto loader

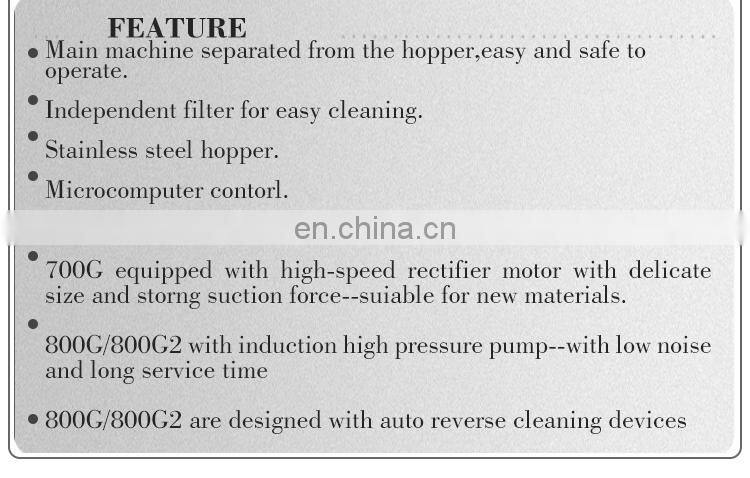

1.Host machine separated from the hopper, easy and safe to operate;
2.Independent filter for easy cleaning;
3.Stainless hopper;
4.Microcomputer controlled;
5.Alarm for overload and lack of material;
6.High-speed rectifier motor of small footprint and strong suction force for new material for XC-X700G;
7.Induction high pressure pump of low noise and long service time for XC-X800G and XC-X800G2;
8.Reverse cleaning for XC-X800G and XC-X800G2.
9. Separate control box for easy maintenance;
10.Auto-buzzer will give alarm when lacking material;
11.Auto-protection device protects motor against overloading;
12.Standard voltage: 380V 50Hz 3 Phase;
Product Specification
Model | XC-X800G | |
Motor | Type | Induction |
Specification | 1.1kw/1.5hp 3φ | |
Conveying capacity(kg/hr) | 450 | |
Loading distance(m) | 4 | |
Static wind pressure(mm/H2O) | 1800 | |
Reservoir volume(L) | 10 | |
Conveying tube inner dim | φ38 | |
Specification of the attached hoses | φ38mm×4m 2pcs | |
Dimensions (cm) | Main fram | 42×38×64 |
Hopper | 45×32×45 | |
Net weight(kg) | Main fram | 47 |
Hopper | 7 | |
| Model | XC-X700G | XC-X800G | |
| Motor | Type | Carbon Brush | Induction |
| Specification | 1kw/1.3hp 1φ | 1.1kw/1.5hp 3φ | |
| Conveying capacity(kg/hr) | 310 | 450 | |
| Loading distance(m) | 4 | 4 | |
| Static wind pressure(mm/H2O) | 1550 | 1800 | |
| Reservoir volume(L) | 7.5 | 7.5 | |
| Conveying tube inner diameter(mm) | φ38 | φ38 | |
| Specification of the attached hoses | φ38mm×4m 2pcs | φ38mm×4m 2pcs | |
| Dimensions(cm) | Main frame | 42×38×64 | 42×38×64 |
| Hopper | 36×30×56 | 45×32×45 | |
| Approx. Net weight (kg) | Main frame | 14 | 47 |
| Hopper | 6 | 7 | |
| | | |
Carbon brush motor cabie remote controller auto plastic material loader | Vacuum hopper auto loader with 7.5HP | Plastic Hopper Auto Loader for Injection Molding Machine |
