Home > Products > drilling rig > FY200 crawler pneumatic water well drilling rig

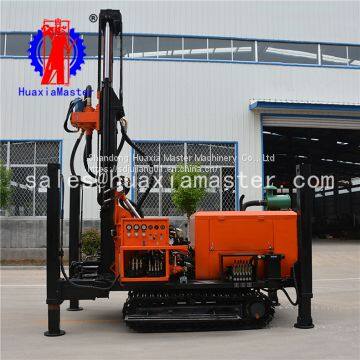

FY200 crawler pneumatic water well drilling rig
- QINGDAO
- T/T L/C
You May Like
Product Details
| Brand Name | HUAXIA MASTER | Place of Origin | China | |
| Model Number | KQZ-200D | Type | Rotary Drilling Rig | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 months | Weight | 3.8T | |
| Power Type | Diesel | Usage | Water Well | |
| Condition | New |
Product Description
The applications of FY200 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2.The specifications of FY200 crawler pneumatic water well drilling rig
Model | FY200 | |
Gross weight | t | 4.6 |
Dimension | mm | 3800*1600*2450 |
Aperture | mm | 140-325 |
Drilling depth | m | 200 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m3/min | 17-35 |
Engine power | kw | 65 |
Rotary speed | rpm | 50-70 |
Rotation torque | n.m | 5000-6500 |
