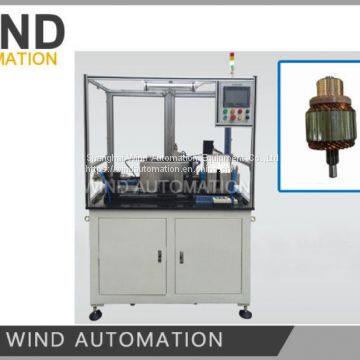

Semi Automatic Commutator Mica Undercutting Machine
- 20 Piece / Pieces per Month
- Shanghai
- T/T
- 35 days
You May Like
Product Details
| Brand Name | WIND AUTOMATION | Place of Origin | China | |
| Model Number | WIND-CU-8066 | After-sales Service Provided | No overseas service provided | |
| Condition | New |
Product Description
PLC Control Armature Commutator Mica Wire Slotting Machine
(1) Technical Data
| WIND-CU-8066 | WIND-CU-8066 | ||||
| 2~99 | 2~99 | ||||
| 3000~5000RPM Adjustable | 3000~5000RPM Adjustable | ||||
| 30-80mm | 30-80mm | ||||
| <100mm | <100mm | ||||
| 380V | 380V | ||||
| 3KW | |||||
| <100mm | <100mm | ||||
| 10 Sets | So only 10 differents kinds of armatures Can we make a store setup....is that right? | Yes, only 10 kinds can be stored in touch screen | We need at least 50 recipes | With 50 Recipies | |
| <200mm | We have armature lenght from 142 up to 450mm. (shaft lenght) | The size is over standard range, a custom made undercutting machine is needed, | Able to use big armatures up to 450mm shaf lenght | ||
| Yes, industrial vacuum clearner is included in Wind Automation offer | industrial vacuum clearner is included in Wind Automation offer | ||||
| The cutter Lifting action can ensure no burrs | Please send me videos or more details | Please check the video (Armature shaft size below 18mm) | The cutter Lifting action can ensure no burrs | ||
| About 1 minutes (For each slot 2~3 seconds) | Production about 60 pieces per hour for a 25 slots armature | ||||
| Cutter | Please inform how many spares of cutters | 2pcs | |||
| SMC | SMC | ||||
| PLC | Tell me the PLC brand | PLC brand is Mitsubishi | PLC MITsubishi | ||
| Aluminium Profiles, stainless steel and steel sheet | OK | ||||
| You can choose from www.ralcolor.com | RAL 9001 | OK | |||
| Safety curtain | Safety curtain | OK | |||
| 1300*950*1950mm | 1300*950*1950mm | 1400*1000*1950mm | |||
| 60days | 60days | 90days | |||
| 15 Month from B/L date | 15 Month from B/L date |
(2) Competitive Advantages
1. With Mitubishi PLC
2. Rise the cutter before slotting to prevent burr
3. The burr remover device can be added on tailor made machine
4. Machine has the device the recipe must allow to set number of revolution of the armature
while the device is turned on. For example, the armature spins three times CW and three CCW
(3) Armature handled by mica undercutting machine
(4) Attention points
1. We can modify the program of machine to let it have more recipes per your requirement
such as 30 recipes
2. Can add a device on the undercutting machine that sands the commutator after the undercutting
process,this process can ensure that the commutator will not have any kind of burrs
