Home > Products > Switching Power Supply > LP1300D-36MDA/300W36V8.3A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY

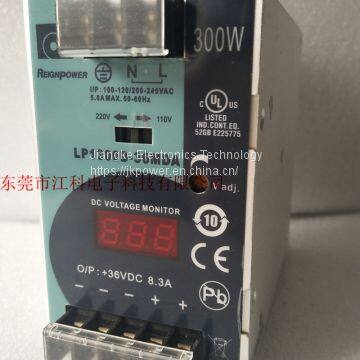

LP1300D-36MDA/300W36V8.3A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
US$ 39 - 43
/ Piece
24 Pieces(Min. Order)
- SHENZHEN
- T/T
- 7 days
You May Like
-
LP1300D-48MDA/300W48V6.25A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
-
LP1350D-24MDA/350W24V14.6A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
-
LP1500D-24MDA/500W24V20.8A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
-
LP1500D-48MDA/500W48V10.4A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
-
LP1500D-12MDA/500W12V41.6A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
-
LPS1500D-12MDA/500W12V41.6A REIGNPOWER SWITHING POWER SUPPLY DIN RAIL DISPLAY
Product Details
| Brand Name | REIGNPOWER | Place of Origin | China | |
| Model Number | LP1300D-36MDA | Output Power | 201 - 300W | |
| Output Type | Triple | Output Current | 100~240 | |
| Output Frequency | 47~63Hz | Output Voltage | 36V | |
| Input Voltage | 220V |
Product Description

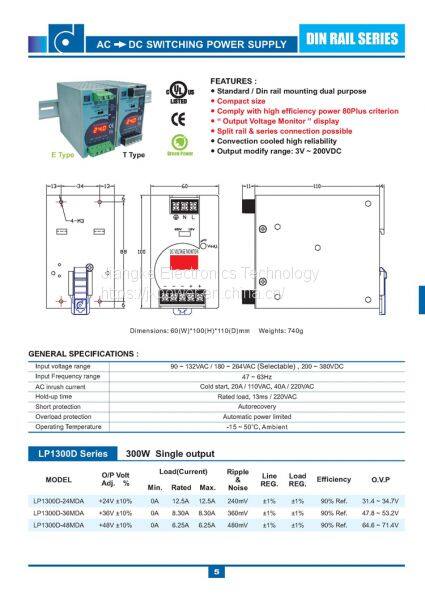

FEATURES:
Standard / Din Rail mounting dual purpose
Compact size
Comply with high efficiency power 80Plus criterion
2010 ErP(Energy Conservation Regulation)compliant
“Output Voltage Monitor” Display(Opion)
Split rail & series connection possible
Convection cooled high reliability
Ouput modify range: 3V~200VDC
GENERAL SPECIFICATIONS:
Model No.LP1300D-36MDA
Input voltage range：90~132VAC/180~264VAC(Selectable)200~380VDC
Input Frequency range：47~63Hz
AC inrush current：Cold start,20A /110VAC, 40A / 220VAC
Hold-up time：Rated load, 13ms /220VAC
Short protection：Autorecovery
Overload protection：Automatic power limited
Operating Temperature ：'-15~50℃,Ambient
