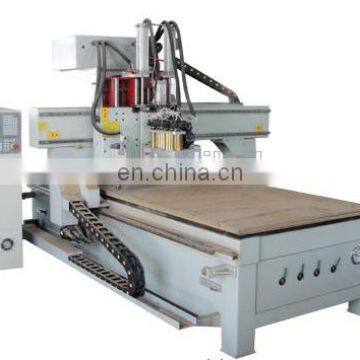

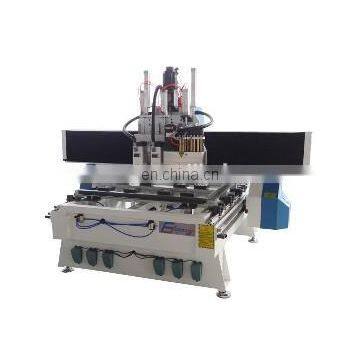

4*8 Italy HSD boring unit and boring head with saw ATC milling woodworking engraving auto tool change router
- 200 Set / Sets per Month
- Qingdao China auto tool change router
- T/T Credit Card
You May Like
-
Canada,Mexico,Brazil,Italy,Iran,Bulgaria cnc router wood cnc machine
-
italy 9kw hsd spindle taiwan syntec 6mb loading and unloading machining center
-
italy 9kw hsd spindle taiwan syntec 6mb cnc machining center vmc-850
-
italy 9kw hsd spindle vacuum table automatic tool change motor spindle
-
DSP Control suda cnc router
-
DSP Control mitech cnc
Product Details
| Brand Name | Mingmei | Place of Origin | Shandong, China | |
| Model Number | MA1325 | Certification | CE ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 Months | |
| Weight | 800kg | Dimension(L*W*H) | 3070x1920x1790mm | |
| Voltage | 220V/380V | Condition | New | |
| Power(W) | 2.2KW | CNC or Not | CNC |
Wooden case auto tool change router
Product Description
strip absorption

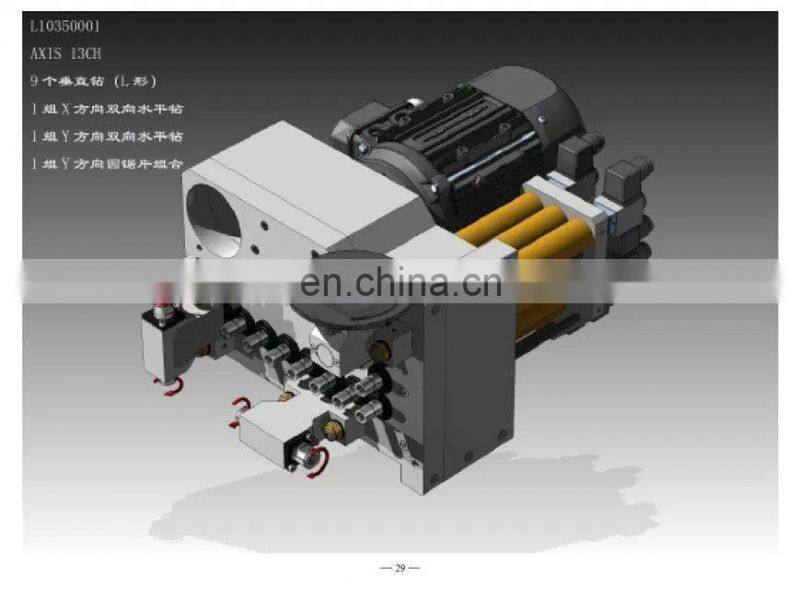

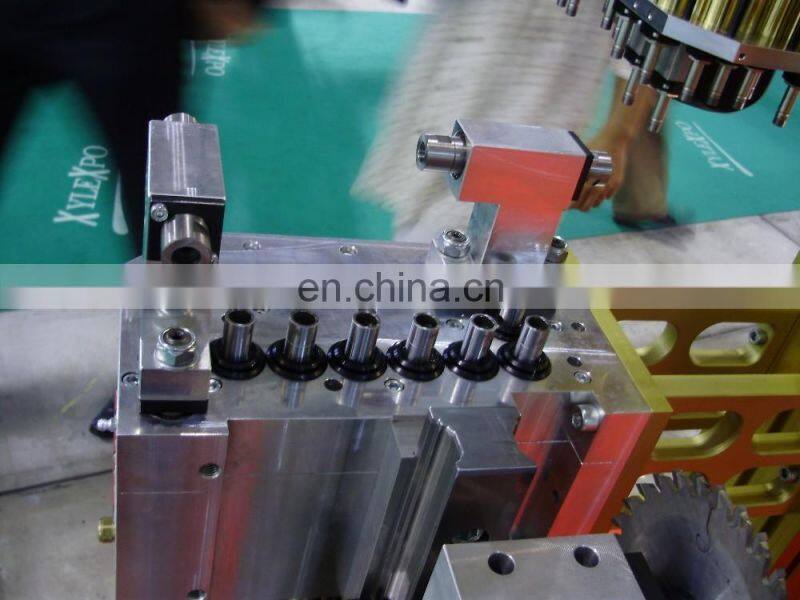

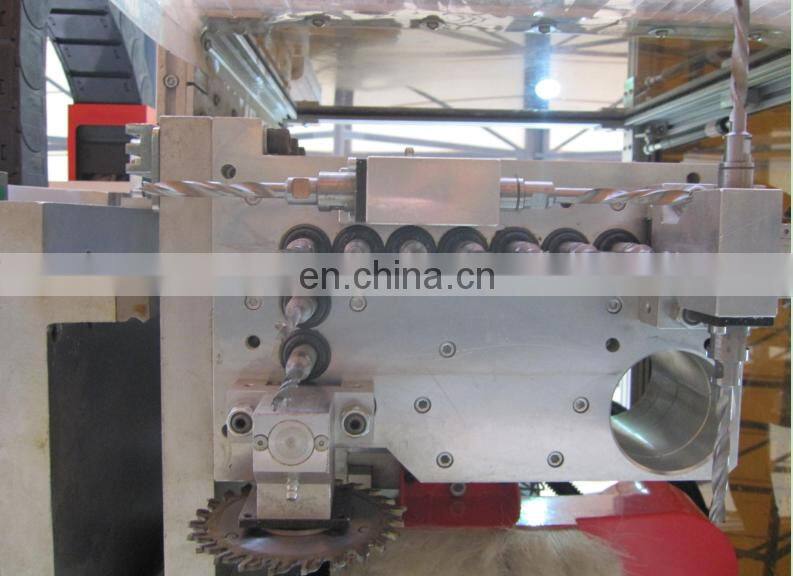

9 vertical boring 4 horizontal
auto tool change router
1. Feature
Technical paraments :
Cast steel structure , working area 1200x2400x250 mm ,vacuum table , Taiwan HIWIN 25# square orbit , Rack&pinion for X Y axis , ball screw for Z axis , 9KW Italy HSD tool change spindle with 8 pieces of tool changer , HSD Row drill group (9 pieces of Vertical drilling cutters + 4 pieces of Horizontal drilling cutters+ 2 pieces of Saws) , Japan YASKAWA servo motor , Taiwan SYNTEC controller, Copy Becker vacuum pump . 3KW dust collector .
Advantage:
With 9 pieces of Vertical drilling cutters + 4 pieces of Horizontal drilling cutters+ 2 pieces of Saws, the machine can separately finish a full door making , include side lock hole making.
2. Parameters:
Paraments | MA1325 |
Working area | X axis :1300 mm |
Y axis : 2500 mm | |
Z axis : 250 mm or choose 300 mm | |
Working precision | ±0.05mm |
Repositiong accuracy | ±0.05mm |
Structure of table | Vacuum table , suction by Movable vacuum suction block |
X Y Z driver system | X Y rack&pinion , Z ball screw |
Max speed | 50000mm/min |
Max working speed | 20000mm/min |
Spindle | 9KW Italy HSD air cooling spindle |

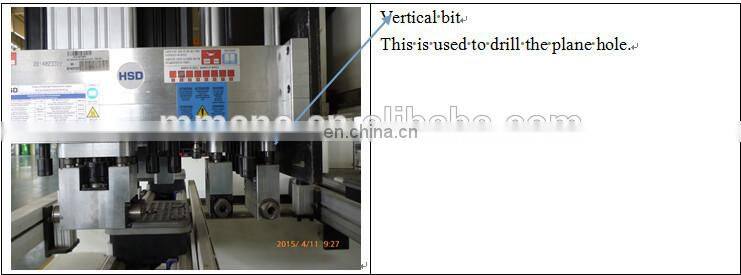

Vertical drilling cutters | 9 pieces or option |

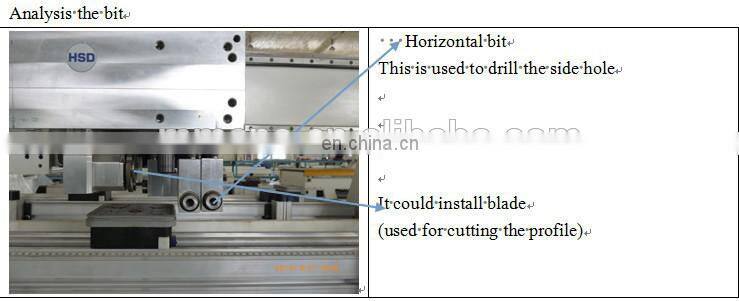

Horizontal drilling cutters | 4 pieces or option |
Saws | 2 pieces , Max diameter : 90 mm |

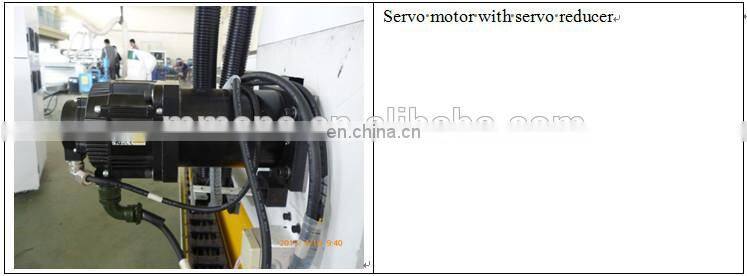

Motor | YASKAWA servo motor , Y axis adopt double motor to drive |
Command | G Code |
Voltage | AC380V/50Hz |
Controller system | Taiwan SYNTEC |
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
