MMCNC 5 Axis Cnc Machine Price Hot Sale Cnc Milling Machine 5 Axis
- Qingdao China 5 axis cnc router
- T/T Credit Card
You May Like
Product Details
| Brand Name | Maxicut | Place of Origin | Shandong, China | |
| Model Number | JGZX5-CNC-3000 | Certification | CE ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 Months | |
| Weight | 2500KG | Dimension(L*W*H) | 3.5*2.5*3M | |
| Voltage | AC380V/50HZ | Condition | New | |
| Power(W) | 15KW | CNC or Not | CNC |
double wrapped; Then it will be wrapped with green stips make it stable then no movement during
transportation; Finally it will wear thick plastic protective machine clothes; Finally, it will be packed in plywood
box.">Some small parts will be packed with wet resistant film; Secondly,we will use wet resistant film
double wrapped; Then it will be wrapped with green stips make it stable then no movement during
transportation; Finally it will wear thick plastic protective machine clothes; Finally, it will be packed in plywood
box.
Product Description
Five axis high performance 5 axis cnc machine price hot sale cnc milling machine 5 axis
for wood, aluminum,plastic composit, sculpture
1.Applicable materials:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial stonesplastics and soft metal sheets suv.
2.Equipment Features
2.1 This machine is specially for cutting,hole drilling,groove milling processing on all kinds of aluminum profile,plastic steel.
2.2 Adopt Taiwan Syntec five axis synchrozizing cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.
2.3 Machine body is heavy duty thicken aging treatment and casting iron table, transmission adopt Japan Yaskawa servo motors and Jpan SHIMPO high performance reducer. Taiwan ball screw, fast speed,low noise ,high precision ,long use life etc advantages.
2.4 It is widely used on process of high speed rail motor car track aluminum alloy,top grade hotel restaurant revolve door ,all kinds of long strip hateromorphoism chair back ,bag suitcases hateromorphism cutting , hateromorphism square tube cutting etc; also can be used for mass production.
3.Technical Datasheet
Model Name | 5axis CNC Router | ||
1 | Movement type |
| Movable table |
2 | Working area(MM):X*Y*Z |
| 600x600x3000MM |
3 | Travel ling | C Axis | ±262° |
A Axis | ±120° | ||
4 | Beam spacing(mm) |
| 2750 |
5 | Beam Height(mm) |
| 1500 |
6 | Double pendulum head type |
| HS655 |
7 | Supplier for Double pendulum head |
| HSD |
8 | Output power of spindle |
| 15KW |
9 | 12.0KW Italian HSD Spindle speed |
| 24000R/M |
10 | Servo system |
| YASKAVA servo system |
11 | Inverter |
| Delta inverter |
12 | Table size(mm) |
| 1600x3500x800 |
13 | Material of Table |
| Aluminum profile |
14 | Material fixed Type |
| T-Slot |
15 | Tool magazine |
| Carousel tool magazine(8positions) |
16 | Cutter specifications |
| HSK.F63.ER40 |
17 | Control system |
| OSAI/Taiwan Syntec |
18 | Minimum training period for operator |
| 2 weeks |
19 | Programming Softwares |
| AlphaCAM |
20 | Software version |
| V7 |
21 | Machine size |
| 4260*2150*3300mm |
22 | Total weight |
| 12T |
23 | Total power(kw) |
| 30KW |
24 | Voltage |
| AC 3P 380V 50HZ |
25 | Efficiency File Conversion(hr/day) |
| 0.5 |
26 | Maximum speed | X Axis | 60m/min |
Y Axis | 60m/min | ||
Z Axis | 30m/min | ||
C Axis | 2700°/min | ||
A Axis | 2700°/min | ||
4.Detailed Photos

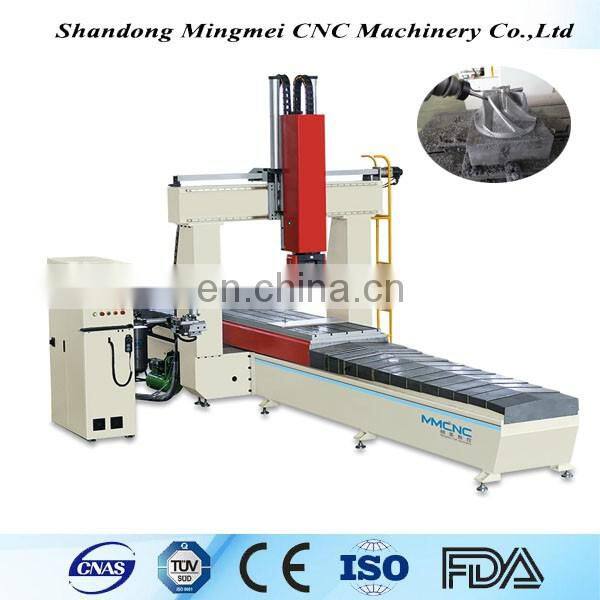

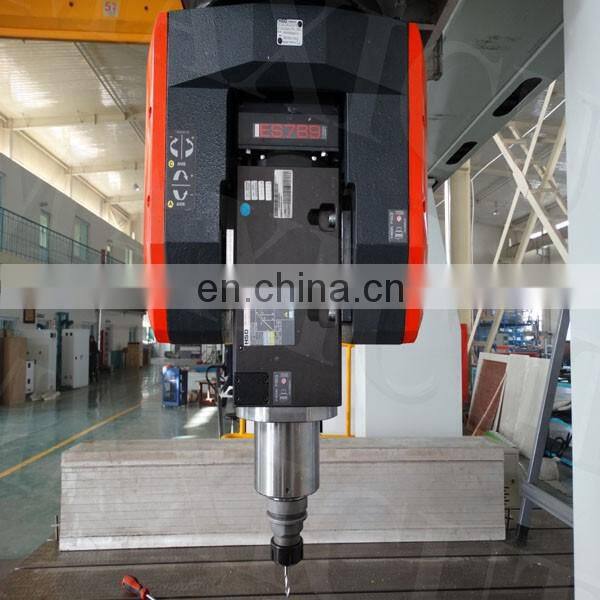

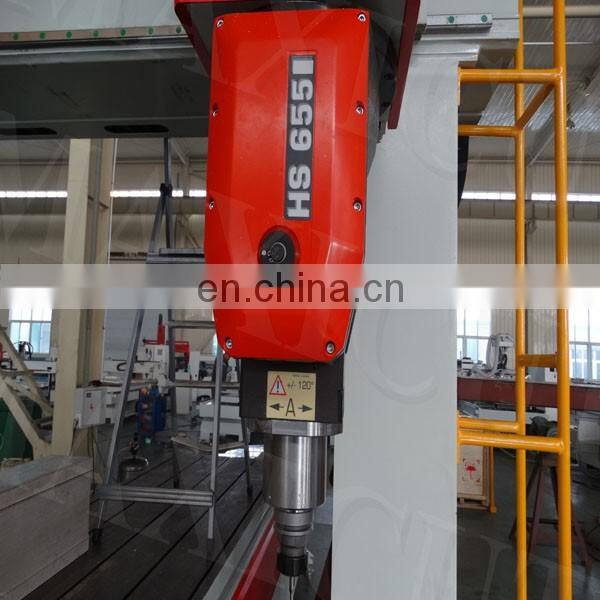

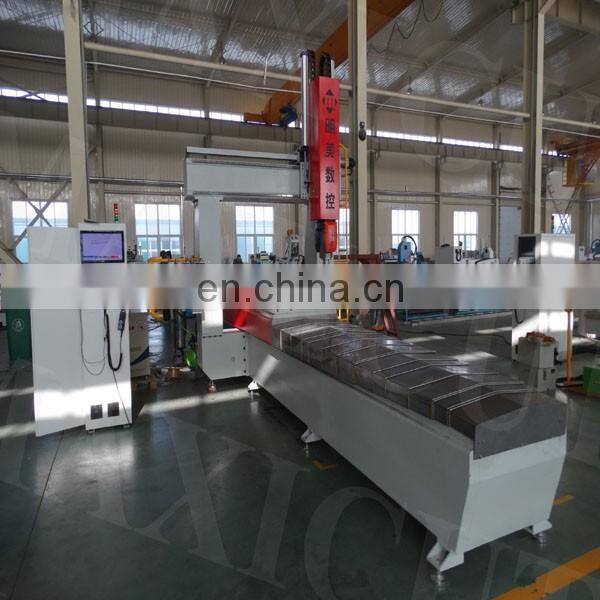

4.1. Facade of whole set machine 4.2. HSD Main spindle 15KW HS655

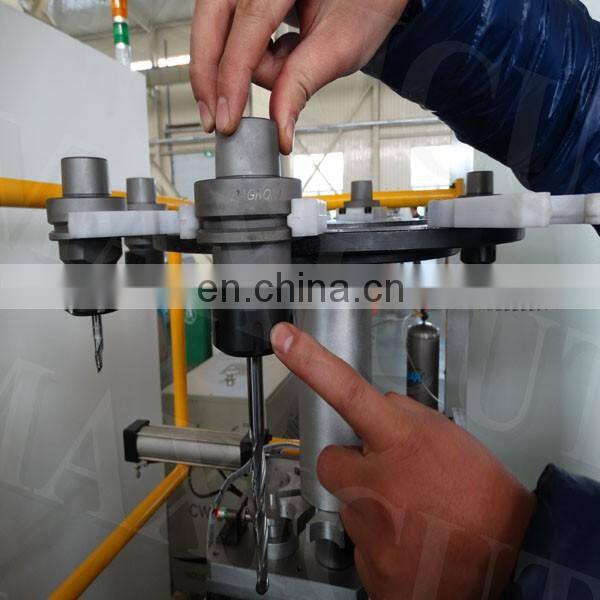

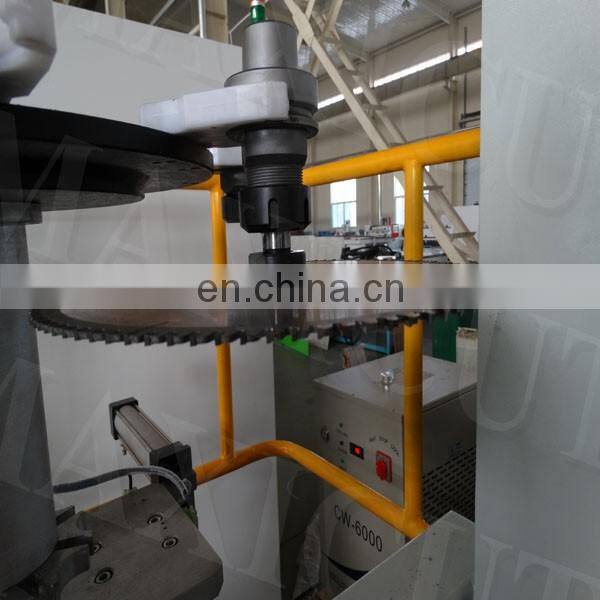

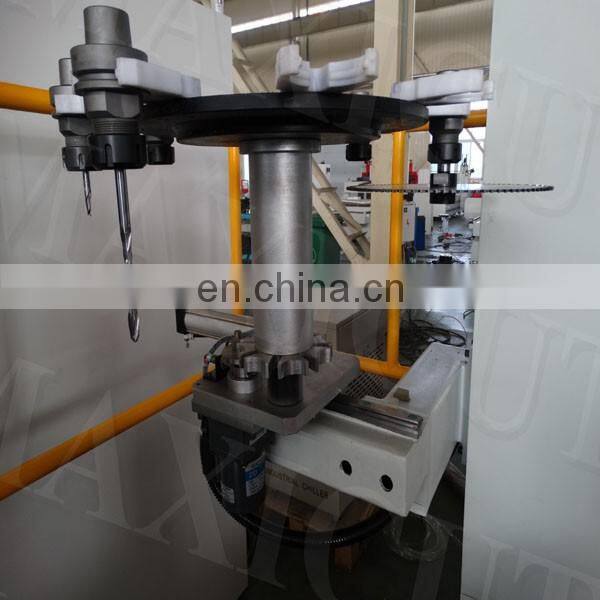

4.3. Disc/Carousel tool magazine with HSD HSK F63 tool holder; Cutting Saw Blade

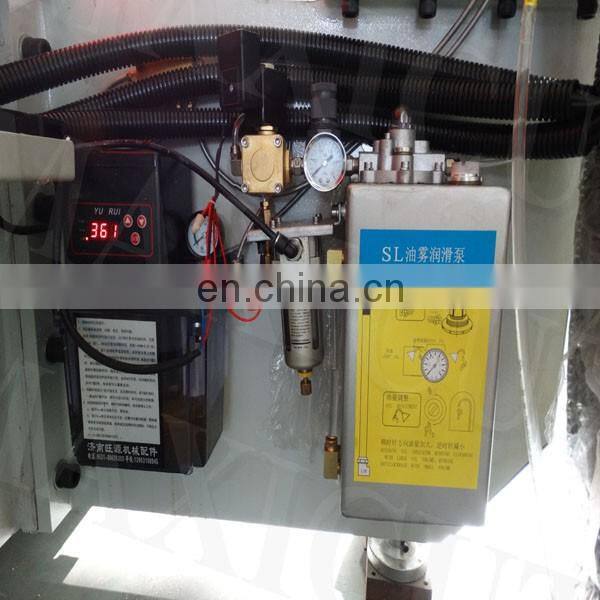

4.4Automatic oil lubracation system; Mist spray

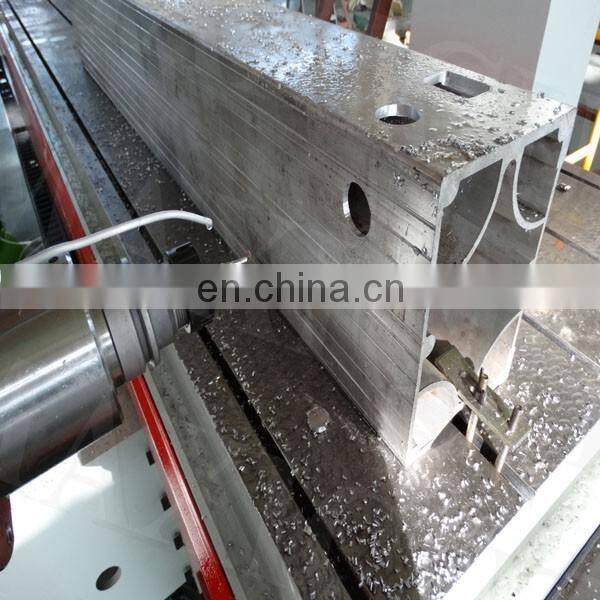

5.Samples:
Packaging:These machines will be packed with Plastic Film and standard export wooden case,
to make sure customer will receive the machines they ordered Intact.
Shipping:Shipping by 20GP,40GP,40HQ Container...
According to Customers’ location and the vehicle size,we will provide professional packaging can save sea freight for cutomers.
-Pre-Sales Service
*Inquiry and consulting support.
*Design drawing as per your demands for your confirmation
*View our factory
-After-Sales Service
*One year warranty, the machine with main parts(excluding the consumables) shall be changed
free of charge if there is any problem during the warranty period.
*Maintenance free of charge during lifespan.
*Free training course at our plant.
*We will provide the consumable parts at an agency price when you need replacement.
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.Company cover an area of 70000
square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door as
well as curtain wall, such as Double head Cutting Saw;Corner Crimping Machine;End miller;
Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.
which these machine have got CE,ECM,EEC authorization .and it has won good market
reputation.
