Semi-automatic single-head chamfering machine
- 60 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
Product Details
Brand Name | Chine chern | Model Number | JC-85SA |
Product Description

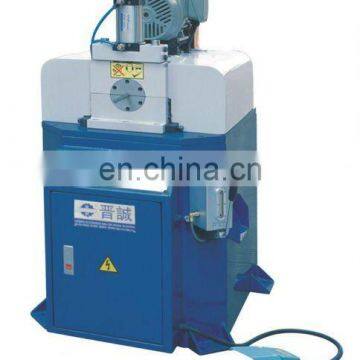

Semi-automatic single-head chamfering machine
Features:
1: Semi-automatic chamfering machine;
2: Feeding tube by manual, blade forward and back automatically, due to the high speed, the production capacity increase double more;
3: This machine is good at chamfering inner and out angle of circular tube or circular rod, chamfering and debarring can be finished at one time in fast speed and accuracy;
4: Clamping device and knife holder are designed precision and accurately, which ensure the center line of workpiece and knife holder keep at the same level;
5: Knife holder as designed specially and the blade is normalizing which enable adjusting knife simply.
Main technical parameter :
Model | JC-85SA |
Host motor | 3HP×6P |
Speed | 90/600.2000/3500 |
Air pressure | Mpa 6-8kg/cm2,130ml/min |
Cutterhead range diameter 3.2-16 | 12-60(standard cutterhead) |
Cutterhead range diameter15-60 | 20-85(standard cutterhead) |
OD | Pipe diameter:19-85,bar 19-60 bar exterior angle 19-60 |
Standard fittings | 1.one standard cutterhead 2. one set clamp |
Material | Steel pipe,iron pipe ,stainless steel pipe |
Net weight | 220kgs |
Gross weight | 270kgs |
Special fittings | as per order |
Spare Parts:
Samples:
Machine Photo & Package
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
