Insulating glass sealant sealing robot line

Insulating glass sealant sealing robot line

1.Functions and Features:

It is composed of raw material pump,solidification pharmaceutical pump,proportional pump, sealant-mixture system,hydraulic pressure system,electric system and so on.
Raw material pump,solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way.The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
There are high-pressure valves in the underpart entrance of solidification

pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other.
Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole.Tighening the nut once the demanding scale is reached.

2. Model and specification:

we mainly have two types of the silicone extruder machine, one is hydraulic type, it is the traditional type used to make insulating glass, it was widely used in the world before. now we develop a new type, which is called pneumatic type, which is work without any electricity. if you want to learn more information, feel free to ask me.

3. There i will supply some pictures for your reference.

Pneumatic Type:

ST03 Pneumatic Silicone Extruder machine

ST04 Pneumatic extruder machine

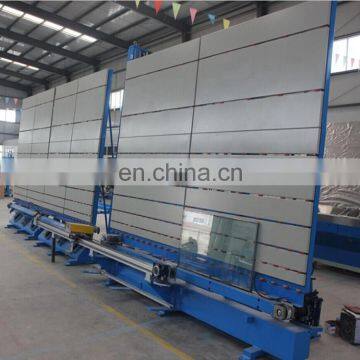

Automatic Silicone sealant  Sealing Robot for double glazing glass machine

6.Note:

Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

Package: Each PC in wooden cases.

Port of Loading: Qingdao, China

Delivery Time: During 15-20 working days after we receive your first payment.

7.Contact Information:

Mobile:0086-13964014791

Whatsapp/wechat:+8613964014791

Skype:jnsunny_jiang

GOOD Quality, GOOD SERVICE IS AVAILABLE, ANY INQUIRY FROM YOU WILL BE APPRECIATED.
