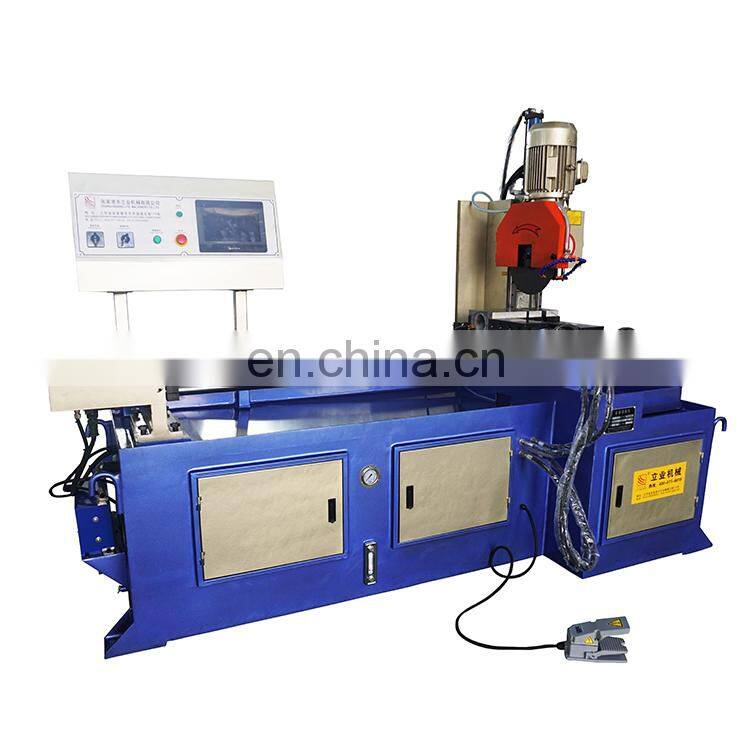

YJ-355CNC Automatic Pipe Cutting Machine (servo Feeding, Left and Right Clamping)

YJ-355CNC Automatic pipe cutting machine (servo feeding, left and right clamping)

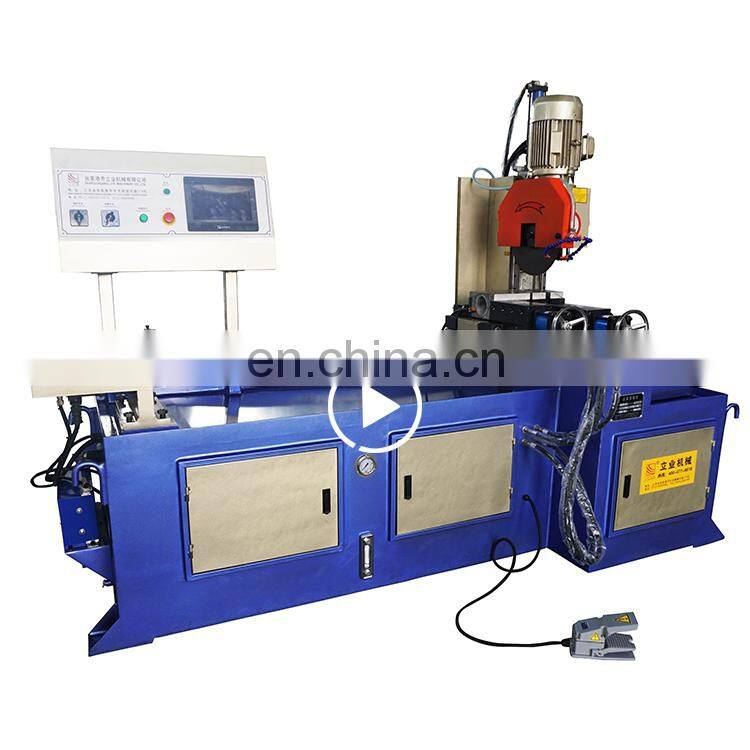

Machine video 1:

Machine video 2:

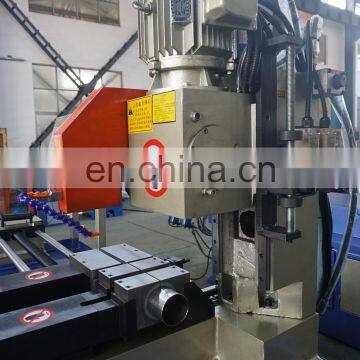

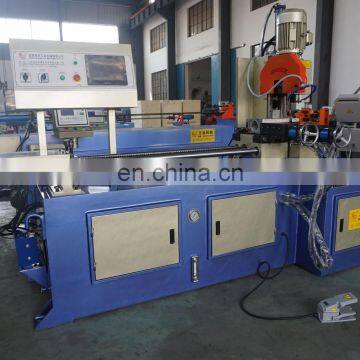

Detail:

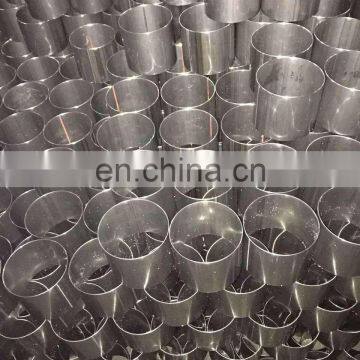

Sample:

Specification:

Feature:

1. HSS saw web (Φ250-Φ350mm) is applied, standard Φ325mm.

2. Full-automatic hydraulic tube cutter, having cyclic actions (feeding, material clamping and cutting) automatically.

3. The feed mechanism is firm in structure and has accurate actions. The floating type seat will not damage the surface of parts.

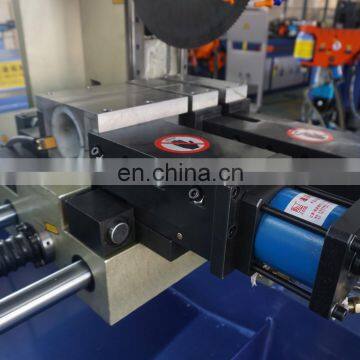

4. The specially designed main clamp has strong clamping force, reliable and safe.

5. Automatic circulation of cooling fluid ensures smoothness of cutting face of parts and long service of saw web.

6. It is controlled by microcomputer. It has simple line and can be maintained easily.

7. Control buttons are concentrated on panel, which facilitates to operation.

8. Cutting length display device, cutting quantity setting and counting device and shutdown device are provided.

9. Centralized treatment of filings, which is convenient and ensures cleanliness.

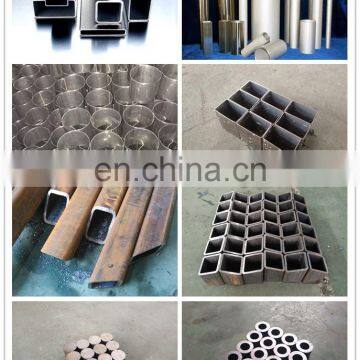

Shapes of cut materials

   Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.

Categories of cut materials

   Steel tube, stainless steel tube, copper tube, aluminum tube and multiple-unit tube

Standard accessories

  1. One pair of standard clamping mould

  2. One set of common tools

  3. One piece of saw web

Special accessories

  1. Feed bracket, discharge bracket

   2. Air cooler

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
