7LSJD Shandong SevenLift Elevator Guide Rail Vertical Lift Helicopter

FOB Price

US$ 1,900 - 10,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SevenLift	Place of Origin	Shandong, China
Model Number	7LSJD	Certification	ISO
After-sales Service Provided	No overseas service provided	Warranty	12 Months
Weight	1000kg	Power	3kw
Rated Loading Capacity	500-5000kg	Overall Dimensions	customized
Min. Lifting Height	0.1m	Max. Lifting Height	10m
Table Size	customized	Lift Drive / Actuation	Hydraulic
Lift Mechanism	Lift Chain

Product Description

Product Specification

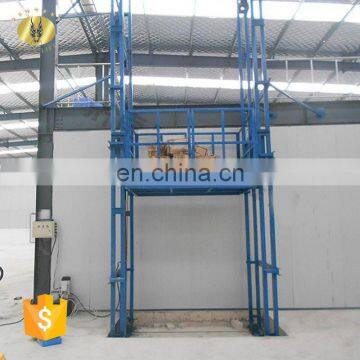

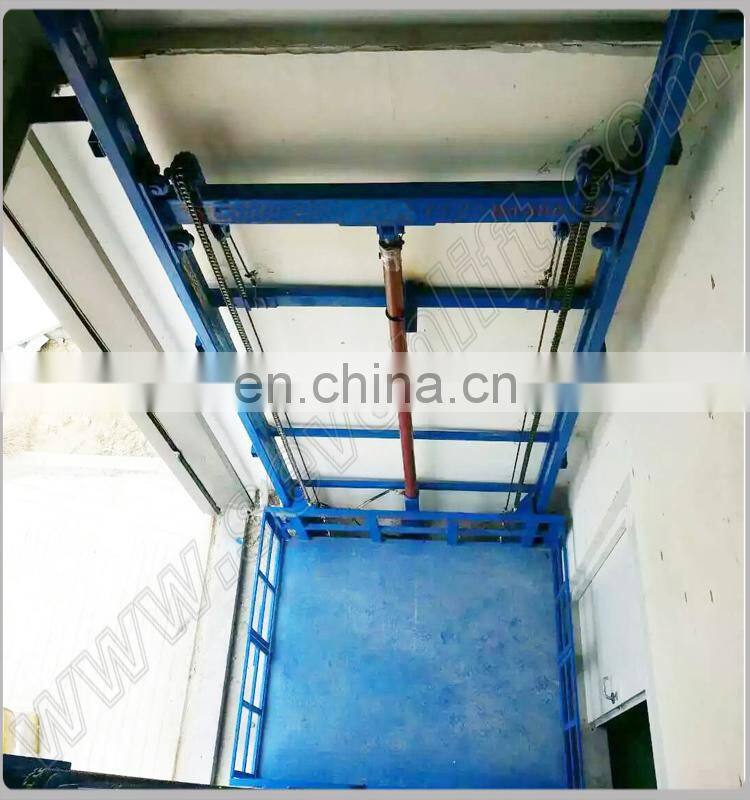

7LSJD Shandong SevenLift elevator guide rail vertical lift helicopter

Model	Platform Size	Load Capacity	Lifting Height	Dimension	Motor Power
7LSJD0.3-3	1.5x1m	300kg	3m	1.5x1.2x4.5m	220v,2.2kw, 1 phase
7LSJD0.5-4	1x1m	500kg	4m	1.2x1x5.5m	220v,2.2kw, 1 phase
7LSJD1.0-6	1.6x0.9m	1000kg	6m	1.6x1.2x7.5m	380v,3kw,3 phase
7LSJD2.0-8	1.8x1.5m	2000kg	8m	1.8x1.8x10m	380v,3kw,3 phase
7LSJD-10	0.6x0.6m	150kg	10m	0.6x1x12m	380v,3kw,3 phase
Drive System		Hydraulic
Pit depth		15cm-30cm
Configuration		Open through or front and side entrances
Speed		4-6m/m
Emergency Stop		The lift can be stopped immediately in case of any emergency
Emergency Lowering		The lift can be lowered by manual down button in case of power failure

Production Show

The 7LSJD Shandong SevenLift elevator guide rail vertical lift helicopter is widely used in lifting operations over large areas, such narrow space as warehouses, factories, highways and stairwell place where we could not dig pits. It is customized design for your real condition to install a convenient lift.

Customized Production

Lift height: detail from 1m - 12m

Load capacity: 100kg - 30000kg

Platform size: as your request

Installation:In a pit or directly on the ground.

Shaft covered is optional

Key Advantages

Adaptable for indoor and outdoor usage, any temperature condition.

Simple structure in linear type ,easy in installation and maintenance.

Custom made according to the surroundings.

Sensitive overload protection devices.

Emergency stop and key switch.

Company Introduction

Our Services

We promise each machine will be tested and ensure it's well work before shipment.

1) We will recommend you a suitable lift once we get your requirement.

2) We can design the 7LSJD Shandong SevenLift elevator guide rail vertical lift helicopter as per your requirement.

3) User-friendly English manual for machine installation using and maintenance.
4) Engineers are available to your country if necessary.
5) Supply 24-hours technical assistance by email, telephone or other communication online.

FAQ

Q1. Can I have a sample model?

A:Our guide rail cargo lift is customized based on your detail request, you can buy one for your testing at first.
MOQ 1 set is available.

Q2. What about the delivery time?

A: It usually takes about 20 working days after we receive the deposit.

Q3. What kind of payment do you support?

A: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually.

Q4. How to proceed an order for the lift?

A: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical situation.
Thirdly, you confirm the quotation along with your request details and places deposit.
Then we arrange the production. Once we finish the production, we will send photos for your reference.

Q5. Is it OK to print my LOGO on the lift?

A:Yes. Please inform us formally before our production and send us your high pixel LOGO.

Q6: How to deal with the broken?

A: Firstly, our products are produced in strict quality, we must test it before we sending out each machine.
Secondly, we will buy an Insurance for any CIF product to make sure the lift safety in shipping.
If any parts broken, you can tell us, we have one year warranty and free send you a new spare parts and we supply technical supporting all the times.

ABOUT US

Shandong SevenLift Machinery Co., Ltd, founded in 2016, located in Jinan city of Shandong Province China, is one of the main lift manufacturers in North China. SevenLift has devoted itself to the research and development, design and manufacture, sales and service of Hydraulic equipment, and Parking system.
