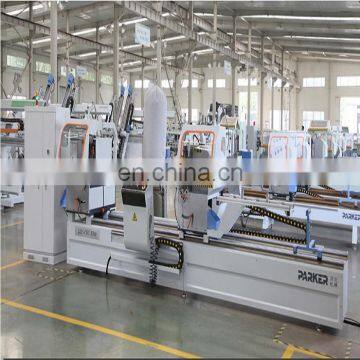

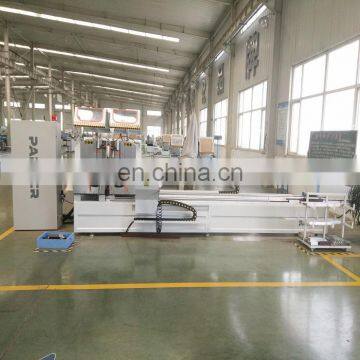

Hot Sale Good Quality Cutting saw aluminium Door and Window Making Machine

Hot Sale Good Quality Cutting saw aluminium Door and Window Making Machine

Model: LJZ -CNC-E500

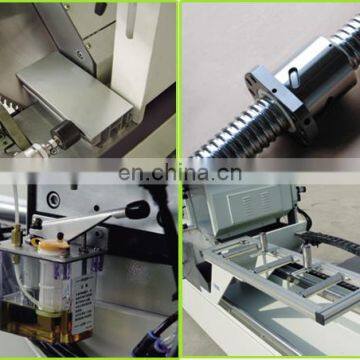

Feature:

1. It has large cutting range, hi-efficiency and perfect safe guards. It is suitable for large scale production.

2.The structure is strong and of excellent rigidity and reliability, so it is impossible to be out of shape.

3.The hi-quality imported special hard-metal saw makes cutting more precision.

4.The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth.

5.The gas-liquid damping cylinder realizes smooth feeding and steady moving.

6.The imported guide rails and the linear motion pair can realize high precision and accurate location.

7.The two-way location-and-clamping features high precision and steadiness.

8.The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere.

Parameter:

 Voltage: 380V 50HZ

 Power: 5.9KW

 Air pressure: 0.5-0.8MPa

 Air consumption: 200L/min

 Blade specification: Φ500 × Φ30 × 4.4 Z = 120 (standard size)

 Cutting length: 400mm-4200mm

 Cutting width: Max.135mm

 Cutting height: Max.300mm

 Cutting angle: 45° 67.5° 90°

 Repeat locating length error: ± 0.2 mm

 Cutting angle error: ± 4′

 Surface plainness: ± 0.1mm

 Surface roughness: Ra12.5 m

 Overall dimension: 5500mmX1750mmX1990mm
