Parker Automatic Aluminum Crimping Machine

Four Head Corner Crimping Machine

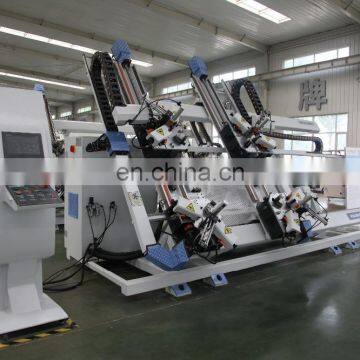

LJJZ4-CNC-1800×3000 CNC 4-head corner crimping machine is used for 90 degree corner joining of aluminum profiles. This CNC four head corner crimper is equipped with front or back movable clamping system and high quality hydraulic system. Place a corner connector into the cavity of the two profiles before corner crimping, and the hydraulic-driven crimping knives make permanent cold deformation on aluminum profile outer layers. With CNC control system, 4-head corner crimping machine can finish four-corner combining at one time. This CNC four head corner crimper is an ideal device for mass production of aluminum doors and windows.

Feature

1. Adjustable head movement uses high precision ball screw ensuring accurate positioning and stable running.

2. Parker CNC 4-head corner crimping machine can adjust the size of aluminum doors and windows automatically, and finish the connection of four corners of a window frame or sash with high efficiency.

3. With hydraulic profile centering device, this CNC four head corner crimper can achieve centering of profile corner automatically.

4. With CNC control system and human-machine interface touch screen, this 4-head corner crimping machine is easy to operate.

5. Servo motors and precision ball screws control the movement of four crimping units, which guarantees the repeat positioning precision.

6. Clamping device of CNC four head corner crimper can move forward and backward automatically. It is easy to load and unload window frames.

7. Powerful hydraulic system provides strong and stable pressing force for 4-head corner crimping machine. This ensures big punching and riveting force and high strength of corner connection.

8. CNC four head corner crimper is installed with a reinforced clamping guide rod that can prevent malposition of aluminum profiles.

9. Height of crimping knives and depth of crimping can be adjusted to meet requirements of different aluminum profiles.

10. Profile clamping of our 4-head corner crimping machines is pneumatic and the feeding movement of crimping knives is hydraulic.

Parameter

Model LJJZ4-CNC-1800×3000

Type CNC Four Head Corner Crimper

Power Supply 380V 50 Hz

Hydraulic System Pressure 15 Mpa

Air Pressure 0.5 to 0.8 Mpa

Oil Tank Capacity 60 L

Air Consumption 0.45 L/min

Corner-Assemble 0 to 50 mm

Max. Dimension 1800 mm × 3000 mm

Min. Dimension of Window 510 mm × 510 mm

Dimension of Profile 100 mm

Overall Dimension 5000 mm × 2000 mm × 2600 mm

Weight of CNC 4-Head Corner Crimping Machine 3000 kg
