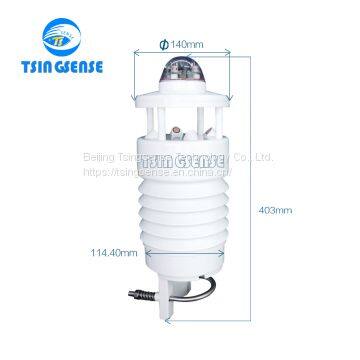

WDS306 Integrated Pm2.5 Pm10 Dust Sensor and Noise Sensor
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
WDS306 Integrated Weather Station With Pm2.5 Pm10 Dust Sensor and Noise Sensor
-
WDS306 Outdoor Integrated Weather Station With Pm2.5 Pm10 Dust Sensor and Noise Sensor
-
WDS306 Outdoor Integrated Weather Station Dust Sensor
-
WDS306 Outdoor Dust Monitoring Weather Station
-
WDS306 Outdoor Dust Monitoring Weather Station With PM2.5/10 Sensors
-
WDS306 Outdoor Dust Monitoring Weather Station With Noise Sensors
Product Details
| Brand Name | Tsingsense | Place of Origin | China | |
| Model Number | WDS306 |
Product Description
WDS306 Integrated dust monitoring sensor is a specialized small instrument applied to monitor dust at construction sites. It can monitor six meteorological elements, wind speed, wind direction, air temperature, air humidity, air pressure, rainfall, and can also monitor three environmental factors, PM2.5, PM10 and noise. The system is modularized and can be configured flexibly. Small volume, low cost, suitable for industrial and intensive monitoring.
Features
Maintenance free design
Standard output protocol RS485
Small volume, light weight
Installation height is unrestricted
Low power consumption, high precision
Integrated dust monitoring system
China's first production company
Technical parameters
Factor | Measuring range | Resolution | Accuracy | Measuring principle |
Wind speed | 0~60m/s | 0.1m/s | ±0.3m/s or ±3% | Ultrasonic |
Wind direction | 0~360° | 1° | ±3° | Ultrasonic |
Air temperature | -40°C ~+60°C | 0.1°C | ±0.3°C | Thermistor |
Air humidity | 0~100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10~1300hPa | 0.1hPa | ±1hPa | MEMS sensor (capacitive) |
Rainfall | 0~5mm/min | 0.1mm | ±5% | Infrared light |
PM2.5 | 0~1000ug/m3 | 0.3ug/m3 | ±15% or±10μg/m3 | Laser scattering |
PM10 | 0~1000ug/m3 | 0.3ug/m3 | ±15% or±10μg/m3 | Laser scattering |
Noise | 30~130dB(A) | A-weighted value (Simulate human ear) | ±1.5dB | Capacitive microphone |
Optional configuration function (Built-in sensor): GPS-a01, WiFi-a02, Ethernet-a03, Electronic compass-b01, GPS-b02, Heating(48W)-c01, Battery-d01. | ||||
The following are types of sensors that can be added for integration.You can choose freely according to your needs.
Factor | Measuring range | Resolution | Accuracy | Measuring principle |
Radiation | 0~2000w/m2 | 1w/m2 | 5% | Silicon photodetector |
UV index | 0~15 level | 1level | ±1level | Photosensitive resistance |
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WDS306 Integrated dust monitoring sensor
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 (RS232 can be selected)
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart city,industrial park and mines, etc.
Q: How to install it?
A: Installed on a hollow mast with a diameter of 60-75mm.
Company information
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends' visits.
