Product Details
| Brand Name | Better | Place of Origin | Shandong, China | |
| Model Number | RTJM93P | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | one year | |
| Weight | 1800KG | Dimension(L*W*H) | 6800X1000X2500mm | |
| Condition | New | Machine Type | Glass Edging Machine |
Product Description
9 wheels Glass Edging Machine/Rectilinear Glass Edging Machine/Vertical straight glass edging machine
1.Brief description
RTJM glass straight line miter edging machine is specialized machine for processing the straight edge of flat glass with arris,coarse grinding, fine grinding and polishing have been done in one processing travel, manual and automatic operation is at customer’s option, as well as for legend of grinding wheels.
2.Main technical parameters
1. Power: 380V / 50Hz
2. Inputting speed: 0.8~5.0m / min
3. Max. glass size: 2500×2500mm
4. Min. glass size: 80×80mm
5. Glass thickness: 3~25mm
6. Mitering angle: 45° and 90°
7. Total power: 18.5KW
8. Overall dimension: 6800×1000×2500mm
9. Machine cast-iron base size: 2840x720mm
10. Legend of grinding wheels:
No. | Name | Quantity | Application | Note |
1 | Diamond wheel | 1pcs | Flat edge | 100G, |
2 | Diamond wheel | 1pcs | Flat edge | 180G |
3 | Resin wheel | 1pcs | Flat edge | 240G |
4 | Resin wheel | 1pcs | Front arris | 240G |
5 | Polishing wheel | 1pcs | Front arris | 10S40 |
6 | Resin wheel | 1pcs | Rear arris | 240G |
7 | Polishing wheel | 1pcs | Rear arris | 10S40 |
8 | Polishing wheel | 1pcs | Flat edge | 10S40 |
9 | Polishing wheel | 1pcs | Flat edge | X098 |
Legend of grinding wheels for 45° angle
No. | Name | Quantity | Application | Note |
1 | Diamond wheel | 1pcs | Front arris | 100G, |
2 | Diamond wheel | 1pcs | Front arris | 180G |
3 | Resin wheel | 1pcs | Front arris | 240G |
4 | Polishing wheel | 1pcs | Front arris | 10S40 |
5 | Polishing wheel | 1pcs | Front arris | X098 |
6 | Resin wheel | 1pcs | Rear arris | 240G |
7 | Polishing wheel | 1pcs | Rear arris | 10S40 |
8 | Diamond wheel | 1pcs | Flat edge | 150G |
9 | Resin wheel | 1pcs | Flat edge | 240G |
3.CONFIGURATION
1. The foundation, transmission box and fro-back beams are of casting materials.
2. The transmission system is adopted of mechanical stepless reducer, double spiral speed reducer, as well as sleeve-type chain of automatic gear.
3. The movement of front beam and grinding spindles are adopted of lead screw driving, and dovetail slider are adopted for supporting and positioning.
4. Front-and-rear pressure pads are adopted of high-intensity plastic material.
5. Rack is made of steel pipes.
6. The conveying belt is of chain constructure.
7. PLC control, with HMI interface operation.
8. Electronics:
S.N. | Name | Remarks |
1 | Electrics | Schneider |
2 | Switch | ZHENTAI |
3 | Motor | XINGDONGYA |
4 | Stepless reducer | FOSHAN |
5 | Diamond wheel | BEIJIN |
6 | Resin wheel | JIANGSU |
7 | Polishing wheel 10S40 | HENAN |
8 | Polishing wheel CE3 | BEIJING |
4. Glass product samples

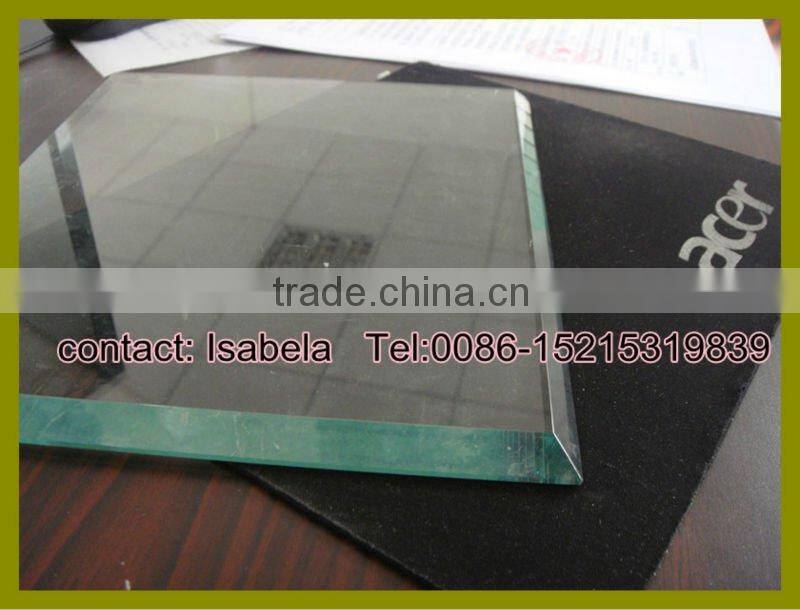

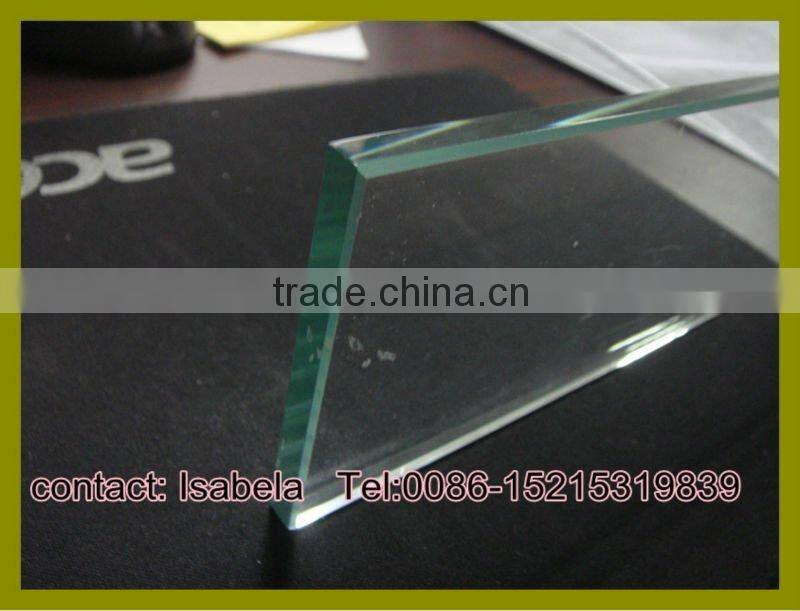

1). 45 angle smaple

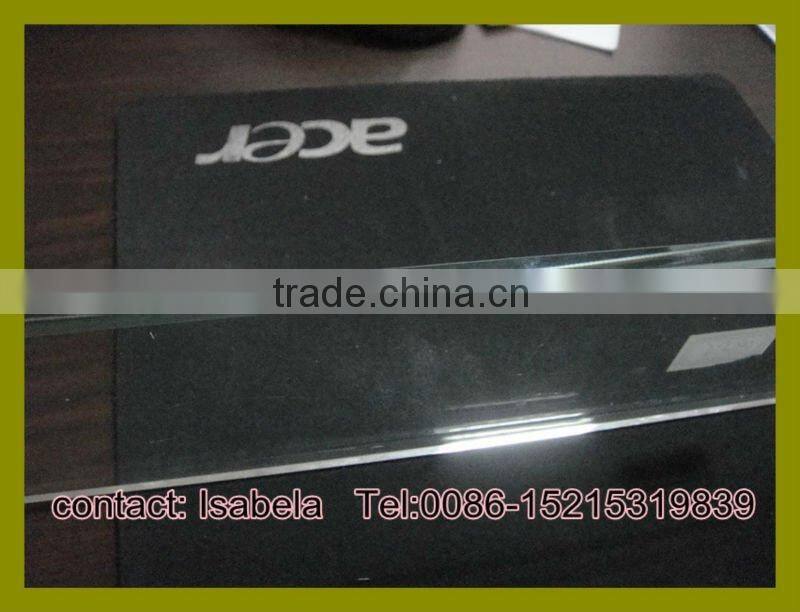

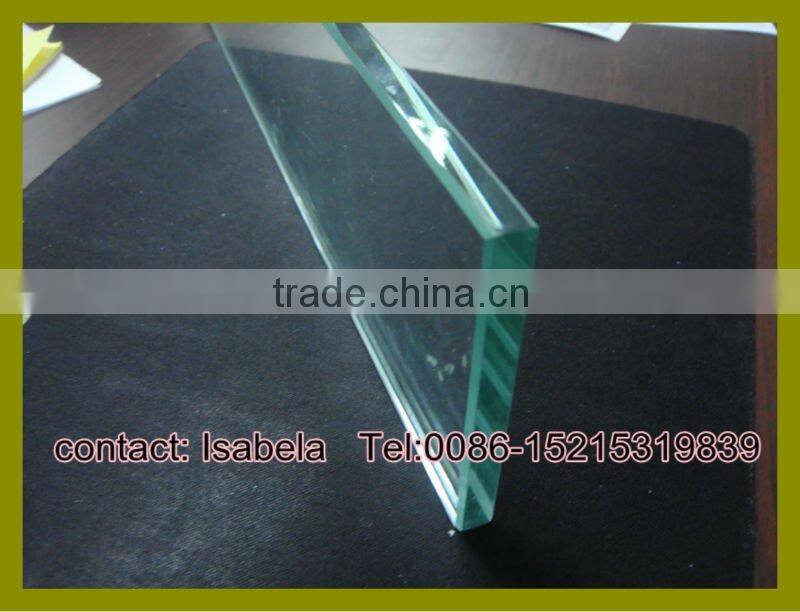

2).Straight angle sample
