Insulating Glass Two- Component Coating Machine
- QINGDAO SHANGHAI GUANGZHOU TIANJIN
- T/T Credit Card
You May Like
-
Two Bicomponent Silcon Extruder Machine
-
Insulating Glass Butyl Extruder Coating Machine
-
Insulating Glass Butyl Extruder Machine for Double Glass Window Production
-
Insulating Glass Machine Automatic Vertical Glass Washing Machine
-
Full Automatic Vertical Glass Washing and Drying Machine Automatic Insulating Glass Washer Machine
-
Double Glazing Glass Washing Machine Vertical LOW E Glass Washing Drying Machine
Product Details
| Brand Name | BETTER | Place of Origin | Shandong, China | |
| Model Number | JT01 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | TWO years | |
| Weight | 850kg | Dimension(L*W*H) | 3300x800x1400mm | |
| Production Capacity | 100% | Condition | New | |
| Voltage | 380V | Power(W) | 5KW | |
| Machine Type | Glass Coating Machine |
Product Description
Insulating glass two component glue coating machine
1.Product Description
1).ST01 two-component coating Machine adopt the advanced technology.
2).the curative agent system is completely closed and airproof.
3).the valve ports of the basic material pump, the curative agent pump and proportioning pump all adopt the special alloy with zero leakage.
4).The rubber mixing system adopt the strip shaker with international static state to-and-fro technology.
5).attached the unilateralism pin valve with special structure to make the mix uniformitive.
the rubber mouth with special flexibility material made the insulating glass production more convenience and attractive.
6).Two component glue coating is the important step for double glass/insulating glass making, two component glue is the second sealant glue for the glass, if this second sealant glue coat well, the double glass will be more vacuum, so that the steam and moisture cannot easyily flow into the double glass inner.
7).The two component sealant glue, you can choose the silicon sealant glue, or choose the polysulfide sealant glue.
8).Kindly note:
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
2.Technical data
Model number | ST01 |
Power supply | 380V 50HZ |
Total power | 1.1KW |
Mixed rate | 6:1-15:1 |
Base bucket | 55 gallon (200L) |
Curative agent bucket | 5 gallon(20L) |
Max consumed air | 0.5m3/min |
Max squeezing pressure | 20Mpa |
Air-supply pressure | 0.5 ~ 0.8Mpa |
Overall dimensions | 1200 ×1100×2500mm |
Total weight(about) | 600kg |
3.Machine part
4.Machine packing in store

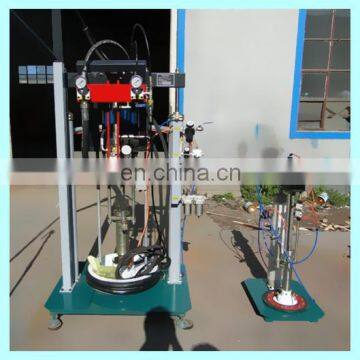

5.Machine working
This two component coating machine work together with the rotary coating machine, after use this two component coating mix the glue, put the glass on the rotary coating machine,then use the glue gun to make coating.
7.Insulating glass/double glass/hollow glass good advantages
1).sound insulation, noise reduction
2).keep warm
3).dust prevention
4).reduce thermal radiation

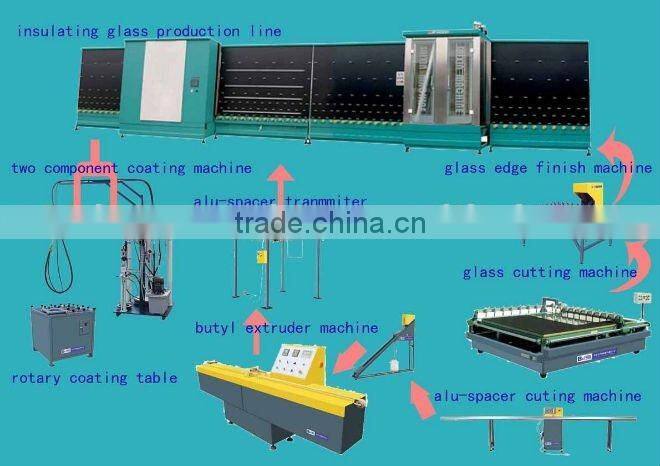

8 Related insulating glass processing flow chart
Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.
About the full insulating glass production steps, here I can give you a brief introduction for your reference:
If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:
1).insulating glass/double glass/hollow glass production line, model: LB1800P
2). Butyl glue extruder machine, model : JT01
3).Two component glue coating machine, model: ST01
4).Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)
5).Glass edge polishing machine, model: SM95
9.Two component glue picture
Two component glue has two kinds, one is Silicon glue,the other is Polysufide glue
it has two Bucket, one bucket is white silicon glue(A),it is 55 gallon, the other bucket is black silicon glue(B), it is 5 gallon, the two bucket glue mix by 10:1, after mix glue, use the glue gun to begin coating, put the glass on a rotary coating table to make coating.
10.Contact information
Contact Person:Jane
Jinan Better Machinery Co.,Ltd
Address: No.6 Lashan North Road., Jinan, China
Tel: 0086-531-85608516
Mobile No: 0086- 531-13335142121 (24H on Line)
Fax: 0086-531-61311202
Skype:deqin.hao
