Vertical Semi Automatic Roller Press Double Glazed Glass Production Line (LB1600G)

Vertical Semi Automatic Roller Press Double Glazed Glass Production Line   (LB1600G)

Vertical Insulating Glass semi-Automatic Roller Press Produce Line

1.Features

1).The machine is specially used for producing insulating glass.


2).The machine is mainly composed of loading section, washing-drying section, light inspection, position assembly section, roller press section and unloading section.


3).Standard disposition : 3 pairs of brush ,one piece of water tank, one piece of water pump, one piece of brush power ,4 bunches of bead rubber-covered roll for washing machine ,one pair of roller.

4).Automatic control for Low-e glass (6-brushes treatment for low-e glass).

5).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

2.Technical parameters

3.Insulating glass/double glass/hollow glass good advantages

1).sound insulation, noise reduction

2).keep warm

3).dust prevention

4).reduce thermal radiation

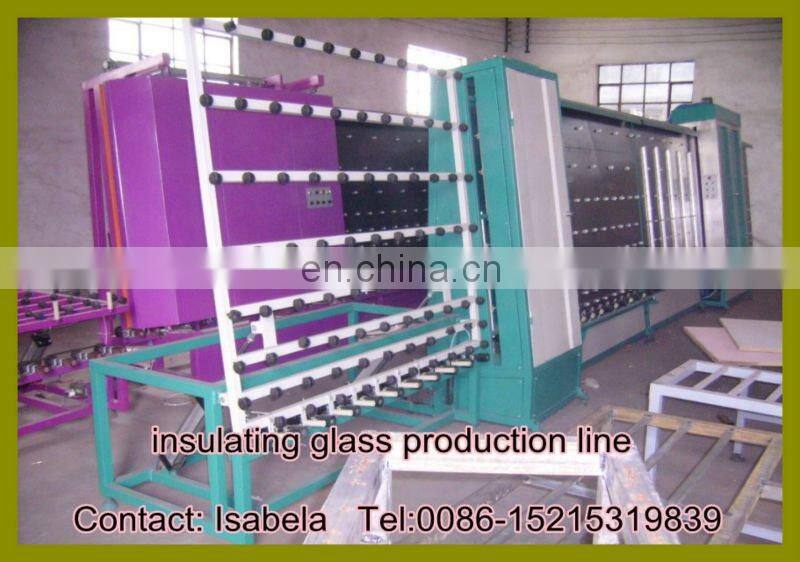

4.Full automatic type insulating glass/double glass production line picture

5. Related insualating glass processing flow chart

Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.

About the full insulating glass production steps, here I can give you a brief introduction for your reference:

If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:

1).insulating glass production line(semi-automtic roller press), model: LB1600G

2). Butyl glue extruder machine, model : JT01

3).Two component glue coating machine, model: ST01

4).Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)

5).Glass edge polishing machine, model: SM95

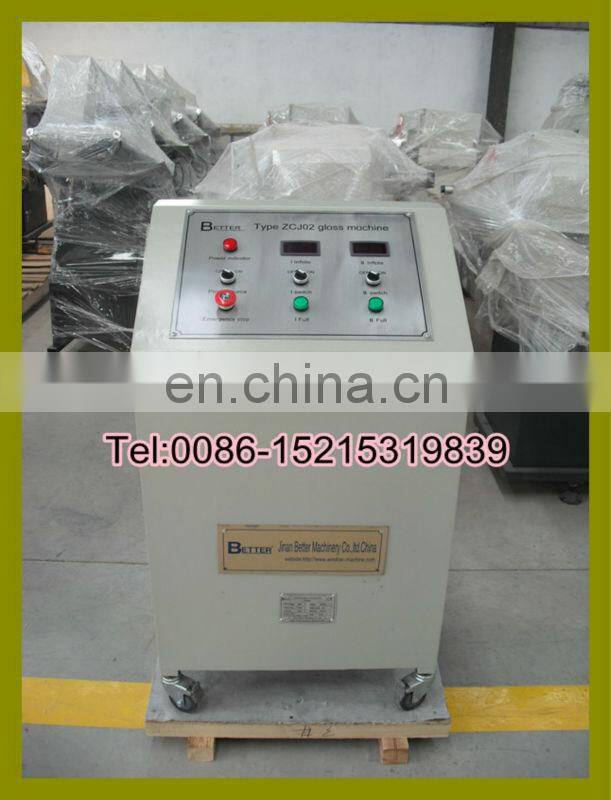

6).Argon filling machine, model:ZCJ02

Kindly note:

If you want to add the following two machines, you can add:

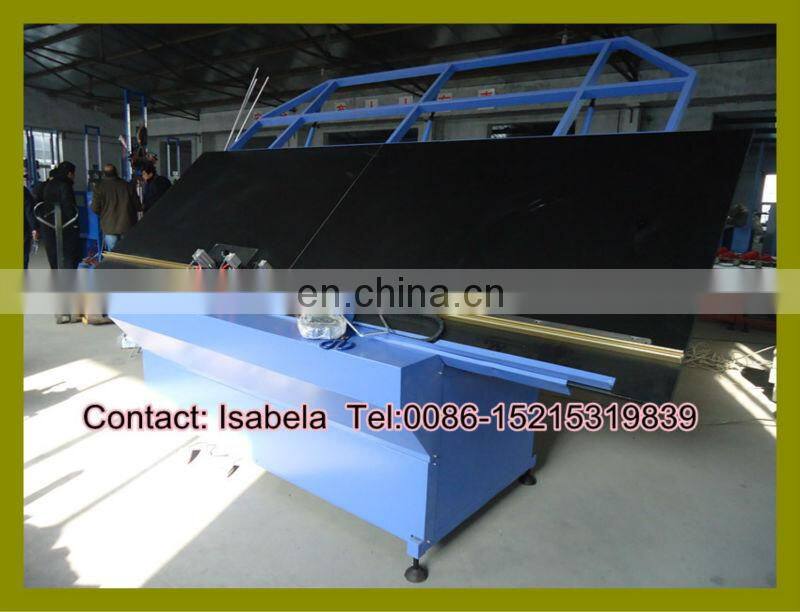

1).Semi-automatic alu-spacer bending machine, model: LW02

2).Full-automatic desiccant filling machine, model: DFG02

6.All models

Kindly note: You can choose the proper model according to your needs.

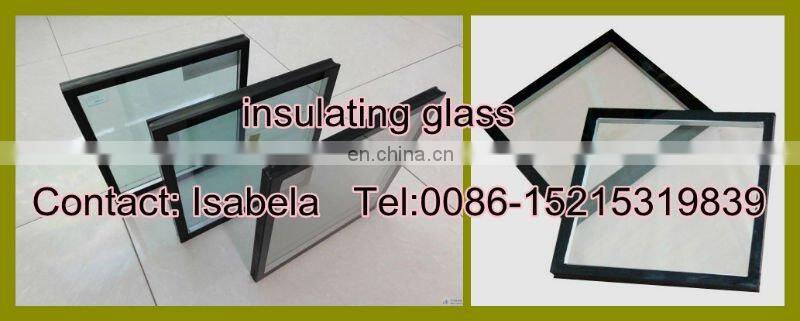

7.Insulating glass product

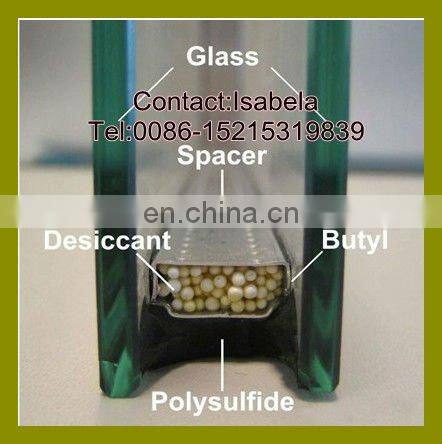

8.Insulating glass/double glass/hollow glass structure
