Double Component Silicon Extruder/Double Glass Silicon Sealant Glue Coater Machinery (ST01)

Double Component Silicon Extruder/Double glass silicon sealant glue coater machinery  (ST01)

Two component glue coating machine/Two component glue extruder machine

1.Product Description

1).ST01 two-component coating Machine adopt the advanced technology.

2).the curative agent system is completely closed and airproof.

3).the valve ports of the basic material pump, the curative agent pump and proportioning pump all adopt the special alloy with zero leakage.

4).The rubber mixing system adopt the strip shaker with international static state to-and-fro technology.

 5).attached the unilateralism pin valve with special structure to make the mix uniformitive.

the rubber mouth with special flexibility material made the insulating glass production more convenience and attractive.

6).Two component glue coating is the important step for double glass/insulating glass making, two component glue is the second sealant glue for the glass, if this second sealant glue coat well, the double glass will be more vacuum, so that the steam and moisture cannot easyily flow into the double glass inner.

7).The two component sealant glue, you can choose the silicon sealant glue, or choose the polysulfide sealant glue.

8).Kindly note:

Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

2.Technical data

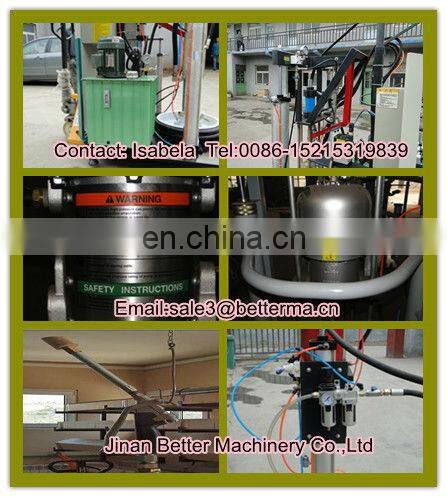

3.Machine part

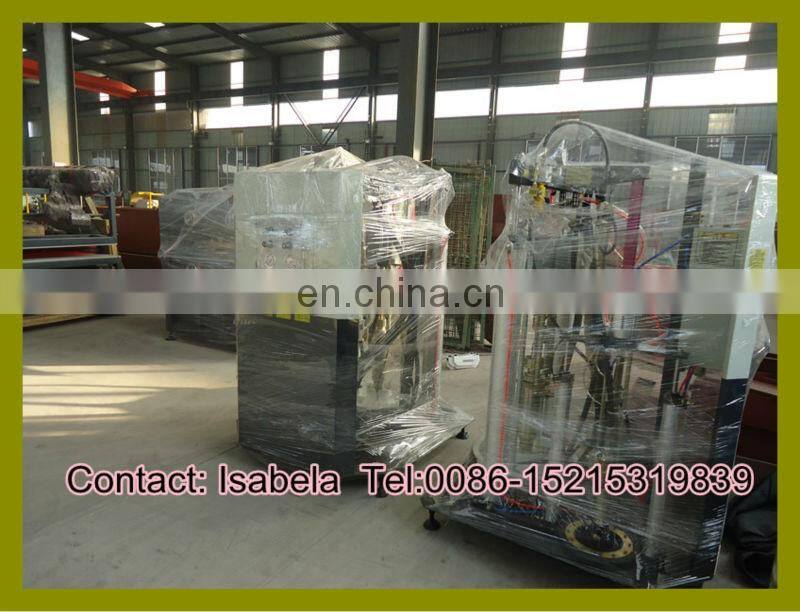

4.Machine packing in store

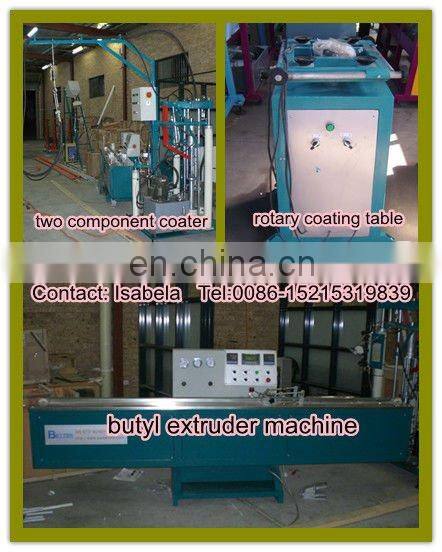

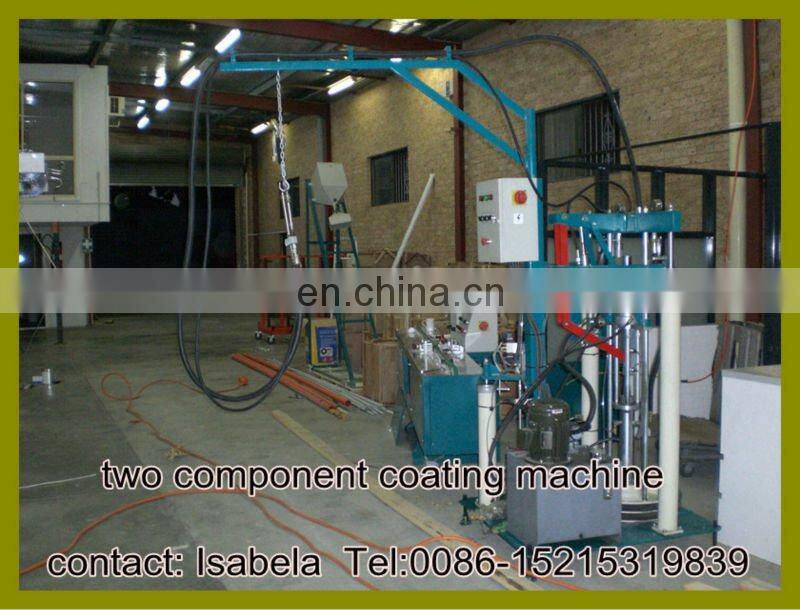

5.Machine working

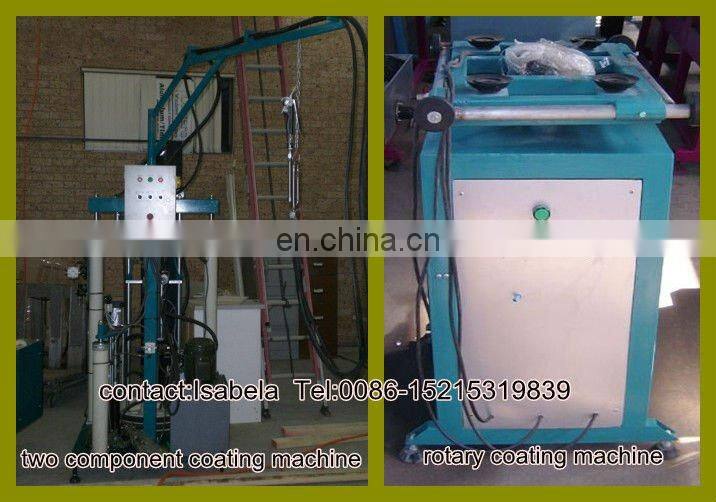

This two component coating machine work together with the rotary coating machine, after use this two component coating mix the glue, put the glass on the rotary coating machine,then use the glue gun to make coating.

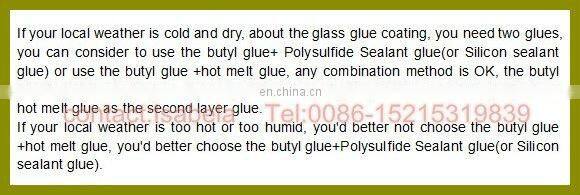

6Kindly note

7.Insulating glass/double glass/hollow glass good advantages

1).sound insulation, noise reduction

2).keep warm

3).dust prevention

4).reduce thermal radiation

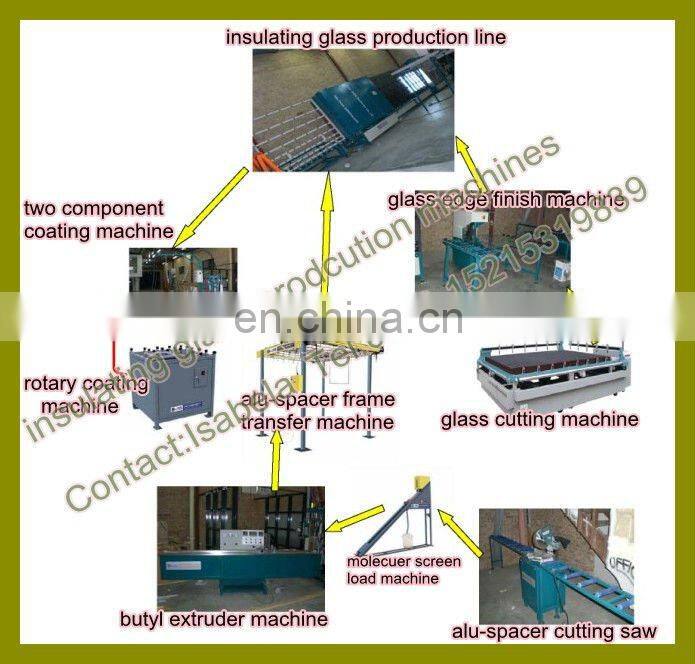

8 Related insulating glass processing flow chart

Besides you buy the basic vertical production line, you also need to add some accesary machines, such as Butyl extruder machine, two component coating machine, alu-spacer cutting saw, glass adge polishing machine etc.

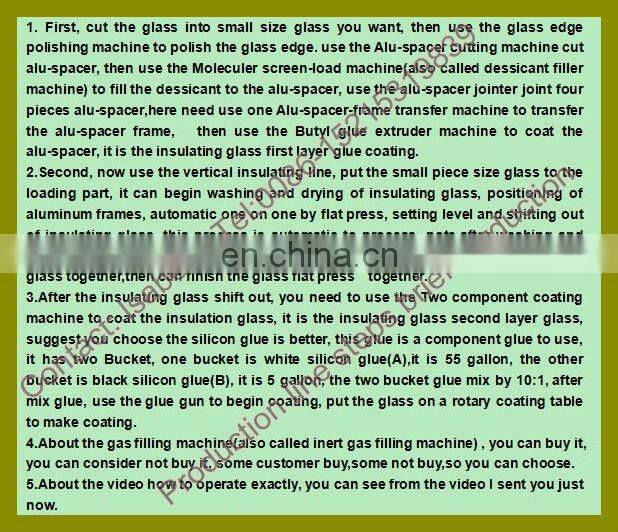

About the full insulating glass production steps, here I can give you a brief introduction for your reference:

If you want to save some cost about the vertical production line, you can consider to by these basic machines is enough:

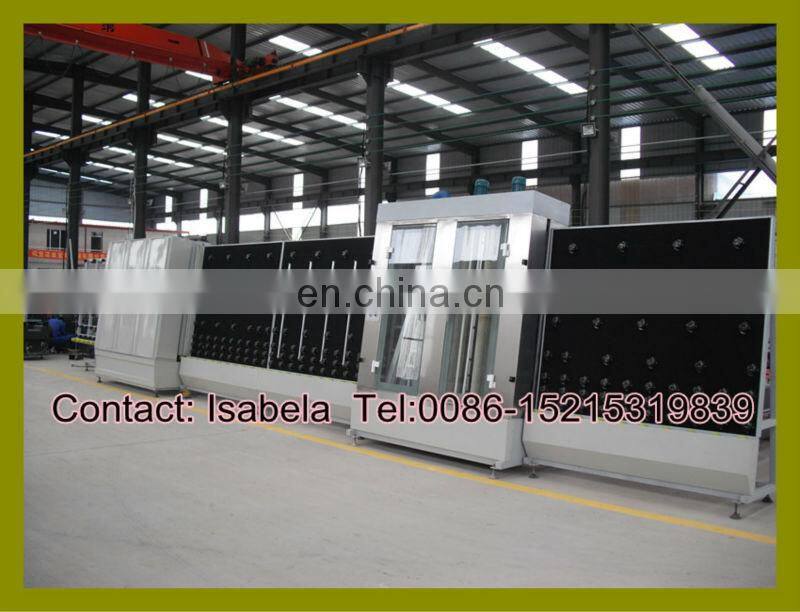

1).insulating glass/double glass/hollow glass production line, model: LB1800P

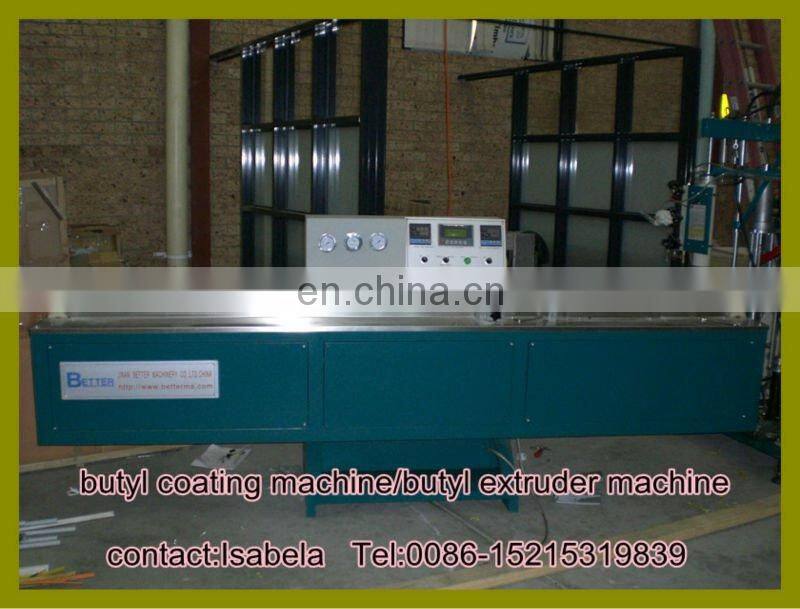

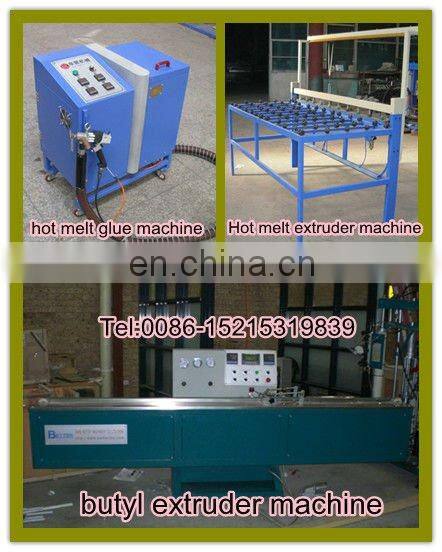

2). Butyl glue extruder machine, model : JT01

3).Two component glue coating machine, model: ST01

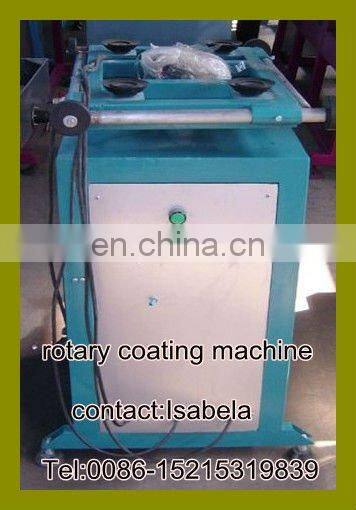

4).Rotary coating machine, model: SZT01 (this machine together work with the two component glue coating machine)

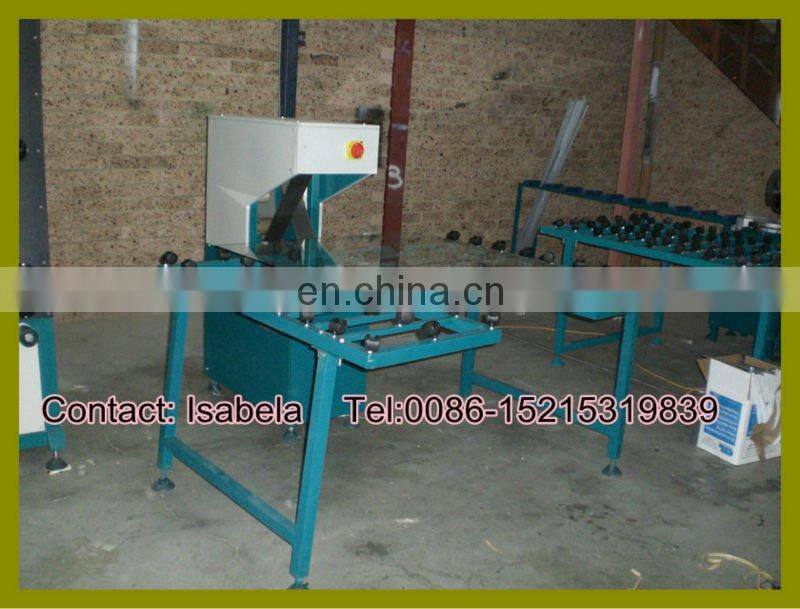

5).Glass edge polishing machine, model: SM95

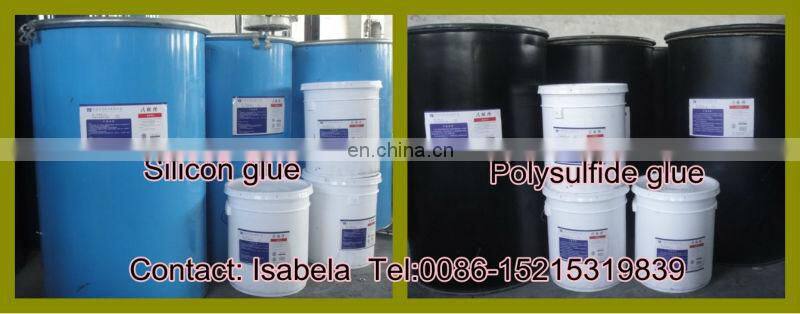

9.Two component glue picture

Two component glue has two kinds, one is Silicon glue,the other is Polysufide glue

it has two Bucket, one bucket is white silicon glue(A),it is 55 gallon, the other bucket is black silicon glue(B), it is 5 gallon, the two bucket glue mix by 10:1, after mix glue, use the glue gun to begin coating, put the glass on a rotary coating table to make coating.
