Home > Products > Insulating Glass Machine > Butyl Extruder Machine /Insulating Glass Machine Production Line

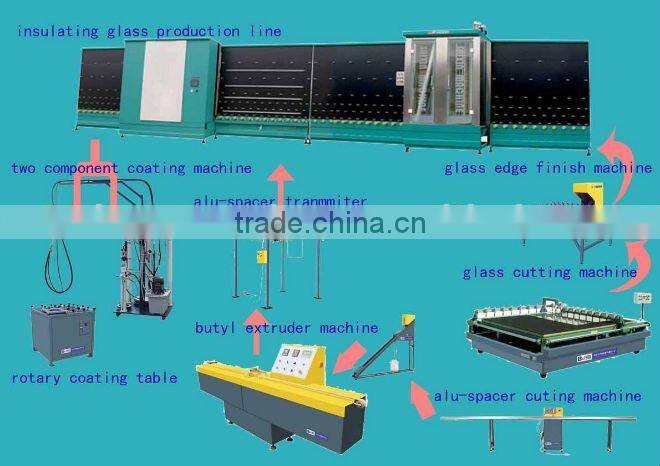

Butyl Extruder Machine /Insulating Glass Machine Production Line
US$ 3,300 - 3,500
/ Set
1 Set(Min. Order)
- qingdao
- T/T Credit Card
You May Like
-
Aluminum Window Processing Line/Vertical Double Glass Automatic Flat Press Prosessing Line/Double Glass Production Line (LB1800P
-
Vertical Insulating Glass Automatic Flat Press Machinery/Double Glass Production Line (LB1800P)
-
Hot Melt Glue Coating Machine/Hot Melt Extruder Machine/Hot Melt Sealant Glue Spreading Machine (RDJ-B)
-
PLC Alu-slot Double Glazed Glass Machine(Plate Press)/Insulating Glass Produce Line/CNC Double Glazed Glass Machinery
-
Double Glass Machinery (LW02)/ Insulating Glass Machine
-
Horzontal Glass Washing Machine BX1600
Product Details
| Brand Name | Better | Place of Origin | Shandong, China | |
| Model Number | JT02 |
Product Description
Butyl extruder machine/ Insulating Glass Machine Production Line 1.Descriptions:
1>The machine is the specialized equipment to apply the hot molten butyl sealant to both sides of the aluminum spacing frame uniformly.
2. The only thing the operator needs to do is to hold the aluminum spacing frame and all the other operations(rolling. transfer. etc.)can be completed automatically as programmed, and hence convenient operation, stable and reliable operation, good effects of sealant extrusion and high production efficiency,
3.The machine adopts man-machine interface and it is indispensable to dualseal double-glazing glass manufacturing
2.Technical Date:
| Power Supply | 380V 50Hz
|
| Total power | 5kw
|
| Transmit speed | 7 m/min
|
| Temperature | 110°C-150°C
|
| Operation air pressure | 0.5~0.8Mpa
|
| Squeeze pressure | 12~15Mpa
|
| Adjustable range | 4-20mm
|
| Contour dimension(L×W×H) | 3300×800×1400mm
|
| Machine weight(about) | 850kg
|
3.Certification:
4.Processing steps
5.Other machines
6.Manufactured sample
