Product Details
| Brand Name | Better | Place of Origin | Shandong, China | |
| Model Number | ZJ-CNC-100X1800X3000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
(0086 15215319839) Aluminum Window Door Machine / Vertical CNC Four Corner Aluminum Window Corner Crimping machine
CNC Full-automatic Vertical Four Corner Combining/Crimping Machine for Aluminum Door and Window(Model: ZJ-CNC-100X1800X3000)
Brief introduction
1).The CNC full-automatic vertical four corner Aluminum corner combining/crimping machine is used for 90 degree corner joining of Aluminum profiles.
2).Place a corner connector into the cavity of the two profiles before corner crimping, and the hydraulic-driven crimping knives make permanently cold deformation on aluminum profile outer layers.
3).Using CNC control system, finishing four corner joining for a window frame or sash in one operation, the corner crimping machine is ideal equipment for mass production of Aluminum doors and windows.
Features
1).Adjusting the size of Aluminum doors and windows automatically, finishing the connection of four corners of a window frame or sash in one operation, high efficiency.
2).Servo motors and precision ball screws control the movement of four crimping units, which guarantees the repeatability positioning precision.
3).CNC control system and human-machine interface touch screen, easy to operate.
4).Powerful hydraulic system provides strong and stable pressing force for crimping knives, ensuring big punching and riveting force and high strength of corner connection.
5).Reinforced clamping guide rod can prevent malposition of aluminum profiles.
6).Clamping device can move forward and backward automatically, easy to load and unload window frames.
7).Height of crimping knives and depth of crimping can be adjusted to meet requirement of different Aluminum profile types.
8).Profile clamping is pneumatic, and the feeding movement of crimping knives is hydraulic, Achieve centering of profile corner automatically with hydraulic profile centering devices.
Advantages
1).The entire machine design scientific is reasonable and steadily. And it welds with square steel pipe with the thickness of 10mm and make products steady when combining the corner. Adopt the plunger type large-scale hydraulic pressure station, the pressure stable, offered the pressure well and the noise is low.
2).The electrically controlled box independent laying independently.It is convenient, even more is advantageous for the crimping angle quality real-time monitoring. The transmission connection uses the aerospace special-purpose receptacle, safe and stable.
3).Adopt original installation import flat square guide rail, which can guarantee the precision of the heads when moves horizontally. Transmission adopts the original imported installation ball bearing master screw.
4).The precision is extremely high so it can guarantee group angle quality.
5).The servo controlling machines, servo motor, person-machine touching the contact surface are adopt the original imported installation of Japanese Mitsubishi system, and the increase assistance brake system. It is stable and efficiency.
6).Used for corner punching and riveting combination of aluminum window and door four corner connecting at one time is available which greatly increased the production efficiency.
7).Clamping device can adjust forward and back, it is easy to operate.
8).Adopt CNC system can realize automatic and accurate locating thus can produce high accuracy Aluminum windows.
Friendly note
Aluminum window corner combining/crimping machine is major and essential equipment for manufacturing Aluminum windows and doors. This kind of machines make permanently cold deformation on Aluminum profile outer layers by pressing Aluminum profiles with corner inside, making the corner connectors and Aluminum profiles connected titghty to finish corner crimping. Corner crimping is the most important step for making Aluminum windows and doors, and the quality of corner crimping (such as crimping strength, crimping accuracy) will affect the finished window quality directly.
Parameter | |
Model number | ZJ-CNC-100X1800X3000 |
Voltage | 380V 50Hz or Customers specification |
Rated power | 4Kw |
Rated oil pressure | 15 Mpa |
Air consumption pressure | 0.5-0.8 Mpa |
Air consumption | 0.45L/time |
Oil tank capacity | 60L |
Corner crimping casing movement journey | 0-60mm |
Max. frame dimension | 1800 X 3000 mm |
Min. frame dimension | 480 X 480 mm |
Max. profile processing width | 100mm |
Max. profile processing height | 100mm |
Tolerance of diagonal | ≤1mm |
Connection seam error | ≤0.15mm |
Contour dimension (L X W X H) | 4700 X 2200 X 2600mm |
Weight(about) | 2500kg |
Main parts brand name | |
Circuit breaker | Schneider (France brand) |
Switcher | Schneider (France brand) |
Button | Schneider (France brand) |
AC contactor | Schneider (France brand) |
CNC system | Mitsubishi (Japan brand) |
Standard accessory | |
Certificate | 1pc |
Complete tooling | 1set |
Operation manual | 1pc |

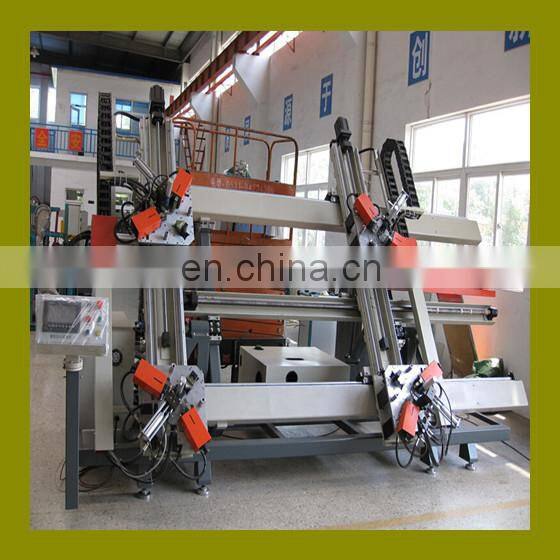

Model ZJ-CNC-100X1800X3000 picture
All Aluminum window door corner combining machines models for reference
Our All Aluminum window door machines







Our company workshop and machines certificates

Our machines in foreign customer workshop pictures
