Product Details
| Brand Name | Better | Model Number | WY360A-CNC |
Product Description
aluminum profile bending machine with 3 rollers model:WY360A-CNC
Call / Wechat:0086-15168813950
Skype:gorge.zhou
Whats app:0086-18606396657

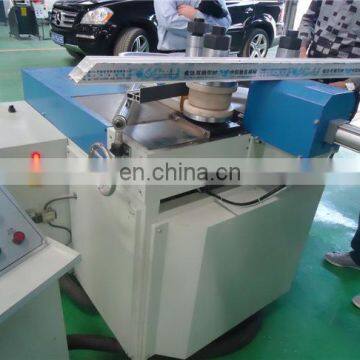

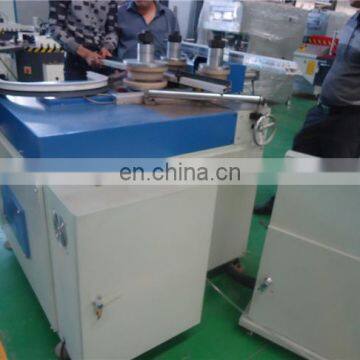

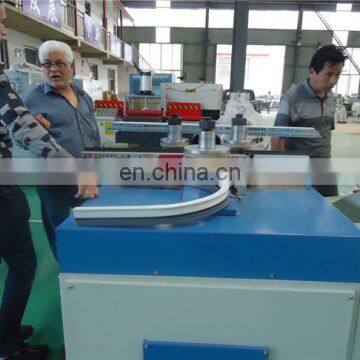

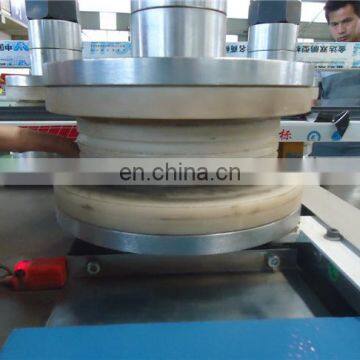

Detailed view
This full automatic machine used for aluminum profile bending processing.Use imported CNC system, service
motor , touch screen, can program the processing, make the operation more simple and convenient.Equipped
with a special bend arc software.The ability to detect material of rebound data and eliminate the rebound.Able
to bend C-shape,U-shape,oval shape,circle shape etc..Computer numerical control (CNC bending), hydraulic
system make positioning accuracy no more than 0.01mm.The performance of their products reach Europe
advanced CNC bending arc machine standard.
Voltage | As required |
Button and contactor | Schneider |
Touch screen and PLC | FATEK,Taiwan |
CNC servo motor and driver | FATEK,Taiwan |
Hydraulic valve | EMG,Germany |
Power input | 5.2 kw |
Roller Rotating speed MAX | 75RPM |
Hydraulic pressure | Max.20ton |
Positioning accuracy error | <0.01mm |
Max.torque | 2500Nm |
Rotary speed | 1-15rpm |
Distance between axles | 250-600mm |
Spindle diameter | 50mm |
Work table dimension(L*W*H) | 1450*1300*1450mm |
Control cabinet dimension (L*W*H) | 600*350*1300mm |
Weight | 650kg |
Manually bending machine
Double head mitre cutting machine
Single head mitre cutting machine
CE&ISO certificate
