Aluminum Window Making Machine of CNC Cutting Saw
- QINGDAO
- T/T Credit Card
You May Like
-
Aluminum Window CNC Precision Cutting Machine
-
(0086 15215319839) Punching Window Machine, Window Punching Machine, Hydraulic Six Moulds Location Aluminum Door Puncher
-
Aluminum Profile Bending Machine for Making Arch Window Door
-
(0086 15215319839) Aluminum Windows Doors Processing Equipment / Aluminum Alloy Door Window Crimping Machine
-
(0086 15215319839) Aluminum Door Profile Crimping Machine / Combining Aluminum Window Equipment
-
(0086 15215319839) Aluminum Window Door Fabrication Machine / Aluminum Window Manufacturing Machine / Door Window Machine
Product Details
| Brand Name | BETTER | Model Number | LJZ-CNC-500 X 4200 |
Product Description
Aluminum window making machine of CNC cutting saw

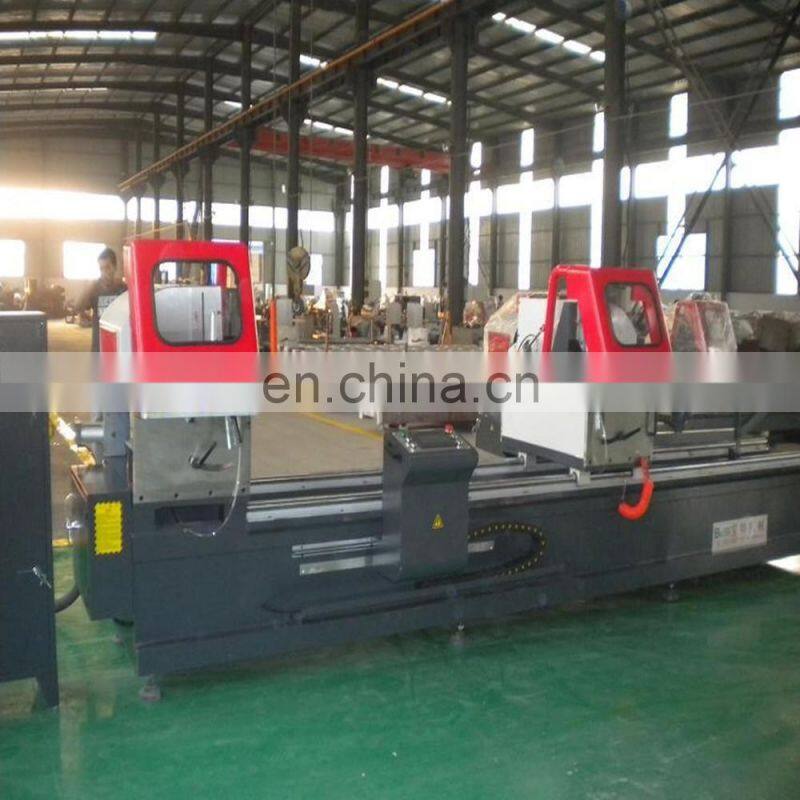

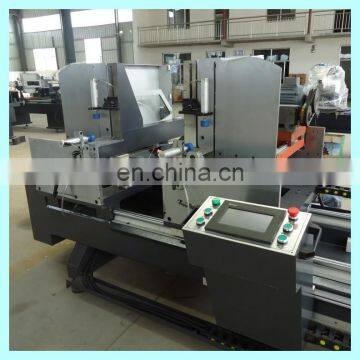

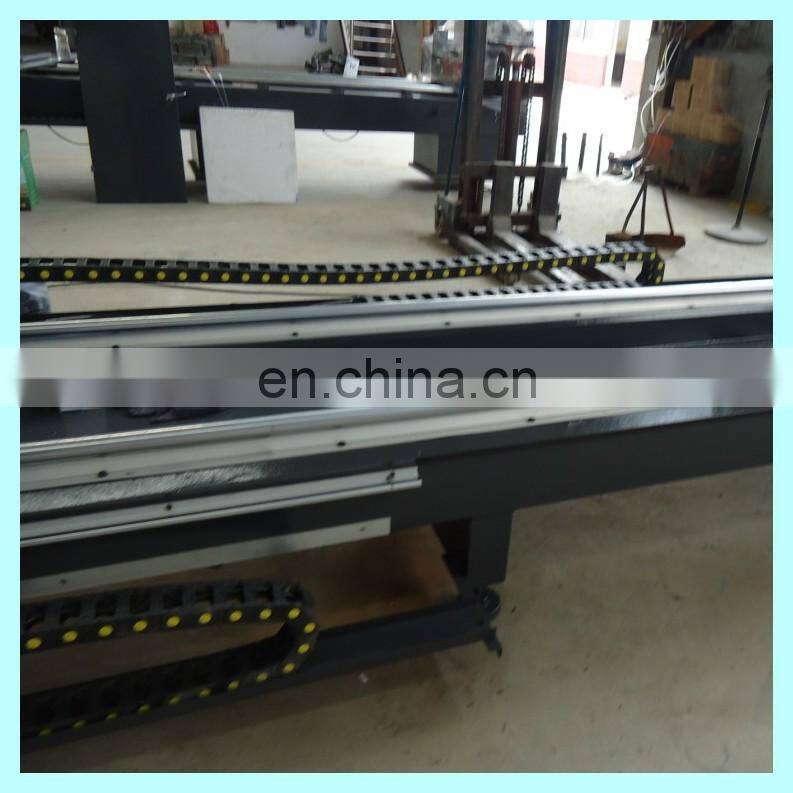

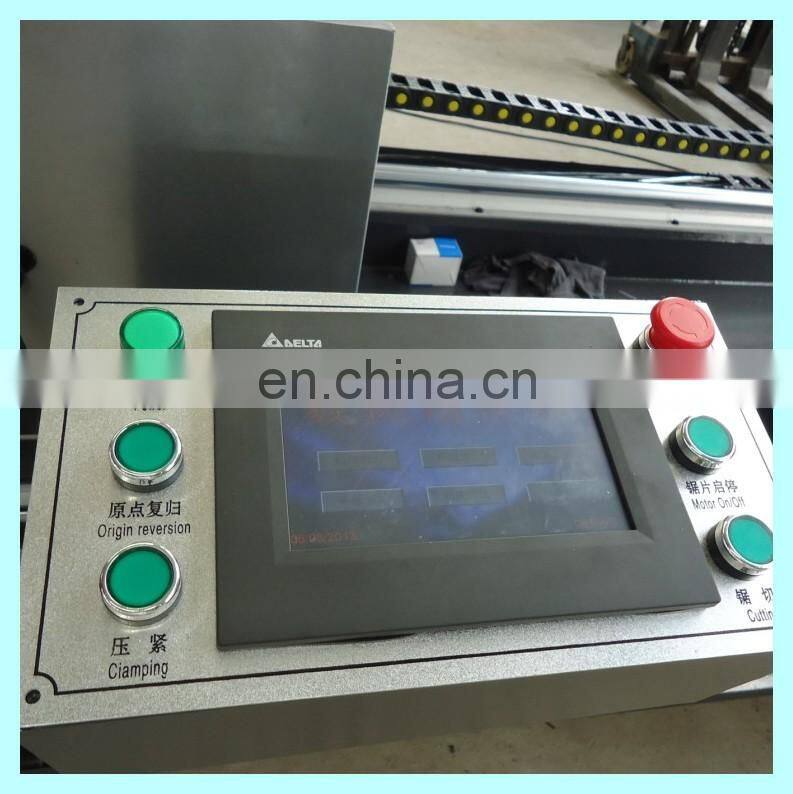

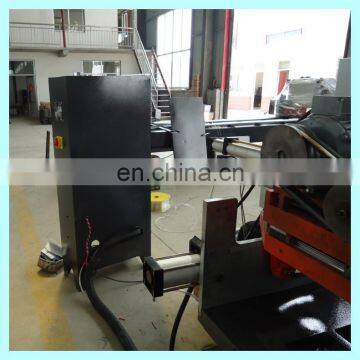

1. Machine pictures:
2.The machine introductions:
The imported numerical control system with numerically controlled cut length ensures precise dimensions, the imported ball screw shaft drives the machine head to move horizontally with high precision of repeated positoning. A series of optimal length data can be inputted at the same time to realize continuous cutting in series, the machine adopts imported specialized saw blades for stiff alloys, imported linear guide reil pairs as cutting feed guide rails, and hydraulic damping cylinder to drive the feed of saw blades, The processing range is wide, with cut length up to 4200 mm,and cut angles of 90º,45º,22.5º,The switchover between three angles is automatic.
3. The main technical parameters:
Model number | LJZ-CNC-500X4200 |
Working Air Pressure | 0.4~0.6Mpa |
Power supply | 220V 50Hz |
Input power | 2.2x2kw |
Blade rotational speed | 3100rpm |
Saw blade dimension | D=500mm,d=30mm |
Cutting angles | 90,67.5,45,22.5 |
Max. cut dimension of profile welded | 330mm |
Contour dimension | 5500x1750x1990mm |
weight | 1900kg |
