Aluminum Window Door Production Line / Corner Connector Automatic Cuttig Saw (LJJ-500)

Aluminum window door production line / Corner connector automatic cuttig saw    (LJJ-500)

Corner Connector Automatic Cutting Saw for Aluminum Door and Window

1. Product Description

1).It is a full automatic machine specially used to cut the profiles of aluminum doors and windows at angles.

2). After you manually install the profiles, all the other operations are automatic there is of cut quantity the main spindle of machine is manufactured by the specialized manufacturer of main spindle of the machining center, the guiding and clamping device ensures no residual sharp comers even in cutting 3mm long comers Hydraulic damping cylinder is equipped to drive the feeds for cutting the machine body adopts integral construction with good rigidity.

Fearures:

1).Imported hard alloy saw blades

2).Automatic material feeding system

3).Adjustable clamping system in front, back , up, and down direction

4).Safe and reliable cutting

5).spraying cooling system

2.Technical parameters

3.Our other Aluminum corner connector profile cutting saw model

1). Alumiunm corner connector semi-automatic cutting saw, model: LJJ-120A

2). Alumiunm corner connector full-automatic cutting saw, model: LJJ-140

4. This model cutting profile sample

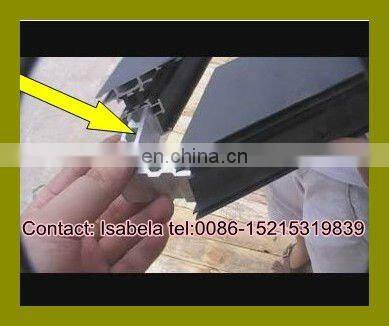

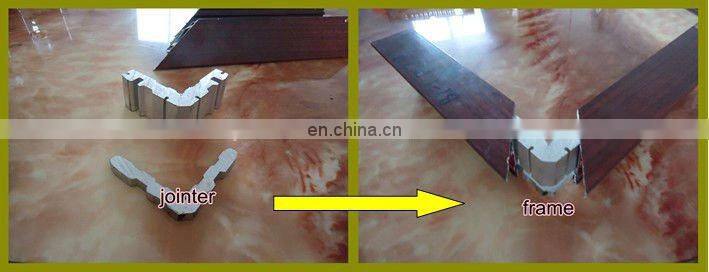

This corner connector profile jointer connect the Aluminum profile to form the aluminum window frame.

5.Related other models of aluminum profile cutting saw

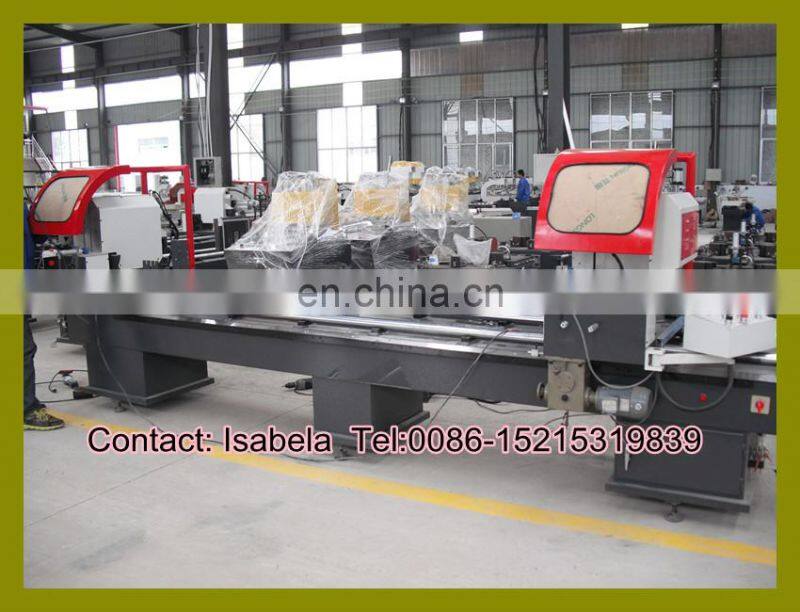

1).Aluminum double head cutting saw, model: LJZ2-450*3700

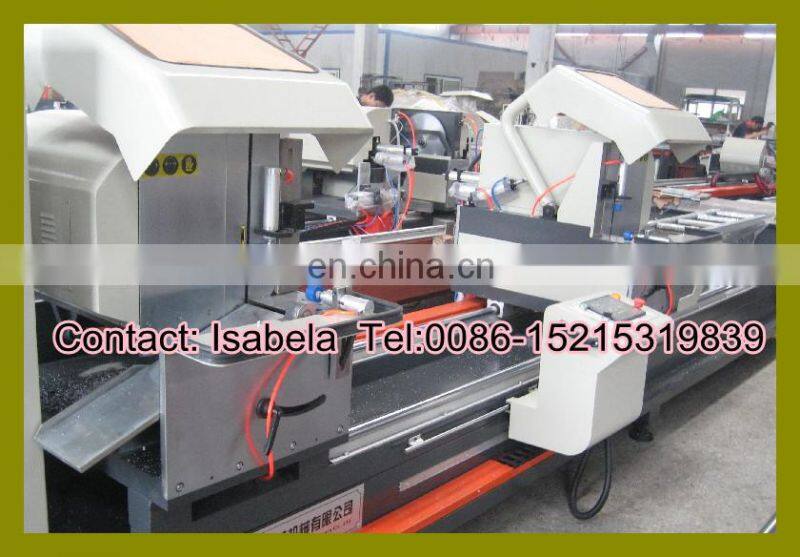

2).Aluminum profile double head precision cutting saw, model: LJZB-500*4200

3). Aluminum profile double head precision cutting saw with digital display, model: LJZY-500*4200

4). CNC Aluminum profile double head precision cutting saw, model: LJZ-CNC-500*4200

6.If you make Aluminum window door, you need the following basic machines

1).Double head aluminum profile cutting saw,model:LJZ2-450*3700

2).Lock hole milling machine,model:SZJ01

3).End milling machine,model:LXD-200

4).Automatic Corner connector automatic cutting saw,model:LJJ-140

5).Single head Corner combining machine,model:LZJ-02

These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.

The five basic machines, you maybe need to use a air compressor, 1 CBM air compressor is enough for these machines.if you can buy the air compressor in your local market, you can buy from your local market. if you want to buy from China, it is ok, we can help you to get.

Friendly note: If you want to make window door, you need to buy the machines, and also need to buy the window door hardware,such as locks, handles , hinges etc... , and also need to buy the profiles, these are all necessary for your window door product production, we only make the window door machines, we donot make hardware and profile, but I know some hardware suppliers and profile suppliers, if you need my help, I can supply you these suppliers information, you can contact them directly to buy the hardware and profiles.
